| Prod Model: |
WC67K-125/3200 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Type: |
Large Machine Tool |
| Automatic Grade: |
Automatic |
Product Description

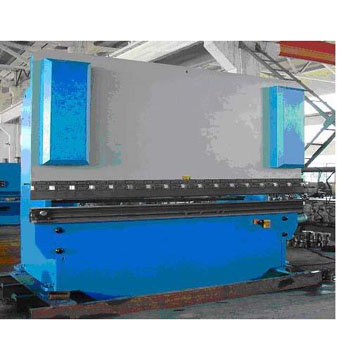

WC67K-125/3200 press brake
Performance and price
1. Working setting:
Power: 380V (AC)± 10% 50Hz± 1Hz 3pH
Temperature: -10- 45
Humidity ≤ 95%
Working condition: Can work 24 hours continuously
3. Performance:
3-1 All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.
3-2 Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.
3-3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
3-4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
3-6 Multi machine combined operation is possible.
3-7 Safe guide is optional.
3-8 machine fitted with ATOS valves; NOK oil sealing, SCHNEIDER electricity main parts. Ball screw for backgauge. DA51CNC system.
4. Sell service:
4-1. The suppliers offer operation manual and quality certification
4-2. The suppliers offer one set of wear Annex and one set of installation and maintenance tools.
4-3. Guarantee: One year as from the date of installation and acceptance.
5. Payment: 30% T/T as advance, 70% T/T before delivery.
6. Delivery time 30 days.
| 2,technical data: |
| No | Name | | Data | Unit | Remarks |
| 1 | Nominal pressure | | 1250 | KN | |
| 2 | Length of working table | | 3200 | mm | |
| 3 | Plate strength | | ≤450 | N/mm2 | |
| 4 | The distance of column | | 2600 | mm | |
| 5 | Ram stroke | | 150 | mm | |
| 6 | Max opening height | | 415 | mm | |
| 7 | Depth of throat | | 320 | mm | |
| 8 | Ram speed | Free | 60 | mm | |
| | | Running | 7 | mm | |
| | | Return back | 60 | mm | |
| 9 | Main | Type | Y160L-6 B5 | | |
| | | Power | 7.5 | KW | |
| | | Speed | 970 | rpm | |
| 10 | Max pressure of system | 26 | Mpa | | |
| 11 | Axial pump | Type | 25MCY14-1B | | |
| | | Speed | 25 | L/min | |
| | | Pressure | 31.5 | Mpa | |
| 12 | Out size | Length | 3450 | mm | |
| | | Width | 1740 | mm | |
| | | Height | 2450 | mm | |
| 13 | Weight | | 7800 | kg | |
Nantong hailite specializes in making shearing machine, press brake, rolling machines and 15tons to 1500tons rubber press machine for a long history. We are an innovative enterprise which collects the production, research and development, and sale as an organic whole. We have passed the evaluation of ISO9001: 2000 certification.
Every management of our company is rigorously enforced, production is self-contained, manufacturing engineering is advanced, and product quality has courteous service steadily after sales. Our products find a good sale in such areas as Europe, Southeast Asia, the Middle East, and Africa. We welcome Chinese and foreign traveling traders. We will appreciate the advice wholeheartedly. Let us devote it sincerely together, abide by prestige, go forward hand in hand for common development.
Our factory offers the ideal equipment to user with hospitable attitude and prestige. Welcome the presence of the masses of customers.
