Product Description
Application of machine

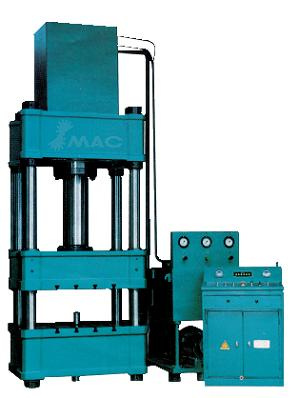

1) Y32 Serial Press composed of main body and control devices which respectively formed with frame, main cylinder, knock-out cylinder, hydraulic system and drive mechanism, lower and upper limit switches pipe lines, electrical control cabinet and etc.
2) Drive mechanism includes oil tank, high pressure pumps, low pressure control sytem, valves, Electrical control system is designed according to the working procedure of hydraulic principle. By preset, sequential operation can be achieved by drive mechanism via pumps, cylindres, valves, tank and pipe lines.
3) The press Y32 is appliable to compression of plastic materials, For example, powder and plastics products forming and heat/cool metal extrusion, metal sheet drawing, stamping, bending, edge-folding, straightening, depressed mounting and etc.
4) Independent drive structures and electrical devices insure reliable operation with centered control buttons. Adjustment, manual operation and semi-automatic operation, three modes are provided respectively for your choice.
5) The working pressure, pressing speed, unload-descending speed and decelerated pressing speed can be respectively adjusted in reqirements.
By preset, knock-out, non-knock-out and drawing can be taken out with pressure-depentdent or distance-dependent movement of die. In the case of pressure-dependent movement, the main cylinder of YQ32 type press initiates pressure-holding, time delay and automatic return.
|
Specification |
Model |
Unit |
11601 |
11602 |
11603 |
11604 |
11605 |
11606 |
11607 |
11608 |
11609 |
11610 |
11611 |
|
YQ32-40 |
YQ32-63 |
YQ32-100 |
YQ32-100A |
YQ32-160 |
YQ32-200 |
YQ32-315 |
YQ32-400 |
YQ32-500 |
YQ32-500C |
YQ32-630 |
|
Nominal force |
KN |
400 |
630 |
1000 |
1000 |
1600 |
2000 |
3150 |
4000 |
5000 |
5000 |
6300 |
|
Knock-out force |
KN |
120 |
190 |
190 |
190 |
240 |
400 |
630 |
630 |
1000 |
1000 |
1000 |
|
Max. working hydraulic pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Slide-stroke |
mm |
450 |
500 |
600 |
600 |
700 |
700 |
800 |
800 |
900 |
900 |
900 |
|
Knock-out stroke |
mm |
150 |
200 |
200 |
200 |
200 |
250 |
300 |
300 |
350 |
350 |
350 |
|
Max. distance between lower sur-face of slide and surface of table |
mm |
700 |
800 |
900 |
900 |
1050 |
1100 |
1250 |
1300 |
1500 |
1500 |
1600 |
|
Slide-travel speed |
Idledown running |
mm/s |
40 |
100 |
22 |
180 |
120 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Working |
mm/s |
15 |
20 |
14 |
14 |
10 |
12 |
5 |
4 |
10 |
10 |
6 |
|
Return |
mm/s |
50 |
60 |
47 |
60 |
60 |
52 |
60 |
60 |
60 |
60 |
50 |
|
Effec-tive area of table |
Left-right |
mm |
500 |
560 |
680 |
500 |
1000 |
1000 |
1200 |
1200 |
1400 |
2370 |
1500 |
|
Front-back |
mm |
460 |
500 |
580 |
460 |
800 |
900 |
1200 |
1200 |
1400 |
1450 |
1500 |
|
Overall dimen-sion |
Left-right |
mm |
2000 |
2400 |
2500 |
2000 |
2700 |
2825 |
3235 |
3235 |
4060 |
6500 |
4200 |
|
Front-back |
mm |
1300 |
1400 |
1500 |
1300 |
1700 |
2060 |
2200 |
2200 |
3525 |
3800 |
4200 |
|
Height above ground |
mm |
2600 |
3100 |
2950 |
2600 |
3400 |
3725 |
4295 |
4500 |
4995 |
4740 |
5600 |
|
Total motor power |
kw |
4 |
7.5 |
7.5 |
4 |
7.5 |
15 |
22 |
22 |
45 |
45 |
45 |
|
Weight |
kg |
2000 |
3000 |
4000 |
2000 |
6000 |
11000 |
14000 |
22000 |
25000 |
38000 |
34000 |
