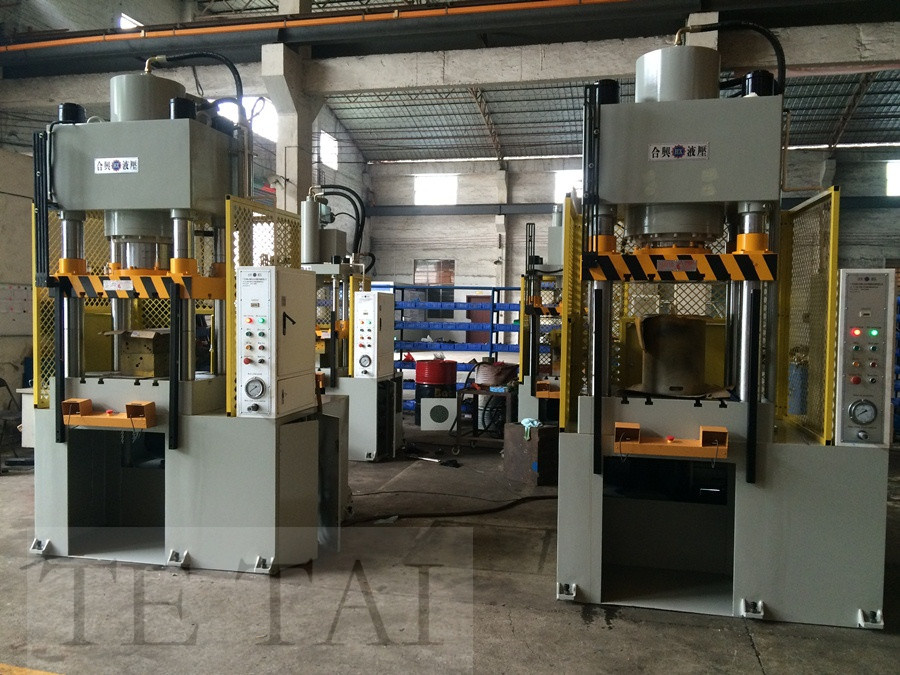

Hydraulic Press Machine for Die Casting / Forging Parts Shearing
| Price: |
US $ 7000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Y31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charateristic1: |
Oil Press |
| Charateristic2: |
Four Clunms |
| Charateristic3: |
Low Energy Consumption, Low Noise |
| Charateristic4: |
High Precision, High Speed |
| Charateristic5: |
Easy to Operate |
| Charateristic6: |
Oil Seal Adopts Multi Rings Guiding Technology |
| Charateristic7: |
with Safty Protect Setting |
| Charateristic8: |
Pressure Adjustable |
| Type: |
General Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
Product Description
Trim press for triming castings
Y31 series press is applicable to triming and punching metal material ,our machines suitable for a lot of industries , such as for auto parts ,car accessories , triming castings , forging parts shearing,making watch shell,watch bottom,watch belt,gold and silver jewelry,badge,memorial corn and metal glass product,also suitable for making tableware,lights and some spare part's revise and fix.This series product is in reasonable design and fine manufacture.The main hydraulic and electric spare part of the press is imported,is suitable for profile forming many kinds of watch shell,jewelry,glass,grinding wheel,stainless steel and hardware.We can desigen as you request.
Technical features of standard version machines:
Low energy consumption, low noise
High precision, high speed
With safety protect setting
Easy to operate
Oil seal adopts multi rings guiding technology, with reliable performance
Pressure adjustableContact :Carrin +0086 18902423091
| Y31 |

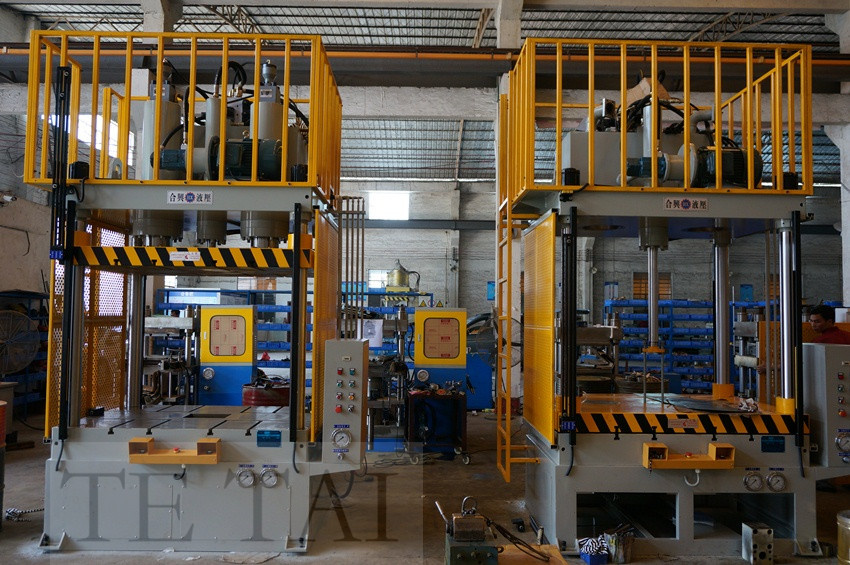

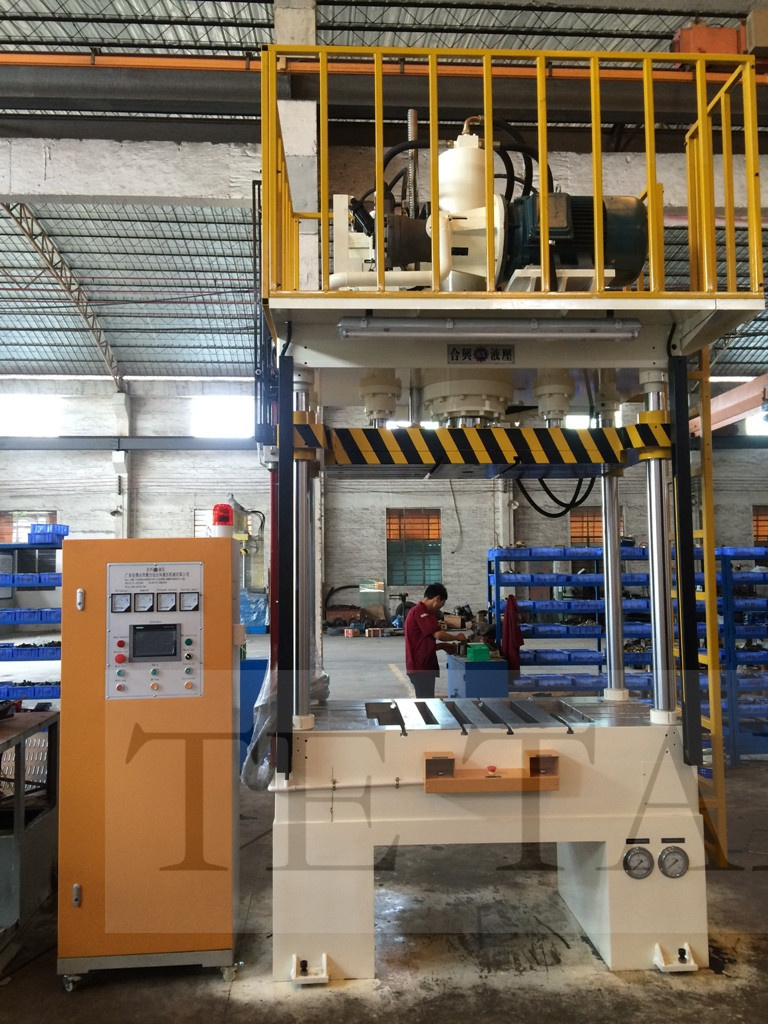

| Y31 SERIES FOUR-COLUMN DOWN HYDRAULIC PRESS |
No. |
DESCRIPTION |
UNIT | Y31-30 | Y31-50 | Y31-100 | Y31-150 | Y31-200 | Y31-250 | Y31-300 | Y31-400 |
| 1 |
Main Cylinder Nominal Capacity | kN | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 2 |
Main Cylinder Max.Pressure | MPa | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 |
| 3 |
Main Cylinder Return Capacity | KN | 55 | 55 | 75 | 95 | 120 | 135 | 135 | 135 |
| 4 |
Ram Max.Journey | mm | 150 | 150 | 200 | 250 | 300 | 500 | 500 | 500 |
| 5 |
Distance Between Ram And Worktable | Max. | mm | 400 | 400 | 500 | 550 | 600 | 800 | 800 | 800 |
| Min. | mm | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 300 |
| 6 |
Ram Speed | Down No Load | mm/s | 130 | 130 | 110 | 155 | 175 | 170 | 170 | 170 |
| Pressing | mm/s | 13.5 | 13.5 | 8.5 | 9 | 11 | 11 | 11 | 11 |
| Up | mm/s | 125 | 125 | 110 | 145 | 175 | 195 | 195 | 195 |
| 7 | Motor Power | kW | 5.5 | 5.5 | 11 | 15 | 22 | 30 | 30 | 30 |
| 8 |
Worktable Area | RL(Between Column) | mm | 450 | 450 | 500 | 550 | 600 | 700 | 700 | 750 |
| FB | mm | 450 | 450 | 500 | 550 | 600 | 700 | 700 | 750 |
| .,. |
| Special order is accepted. |
