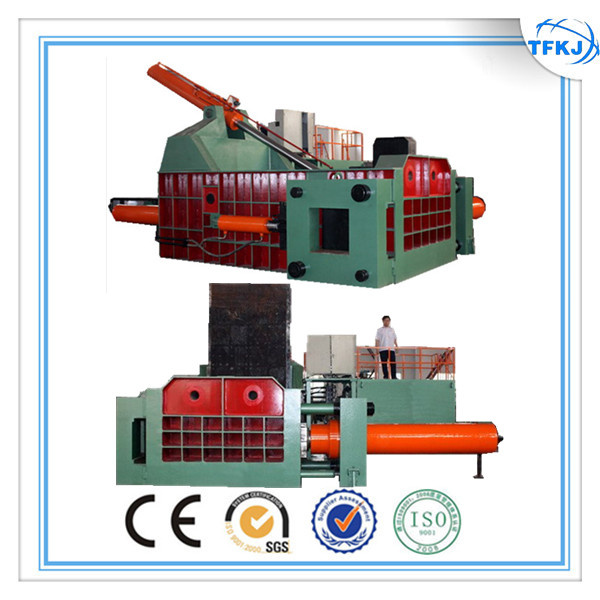

Hydraulic Press Machine for Metal Scrap (Y81/T-4000C)

Name: Hydraulic Press Machine for Metal Scrap (Y81/T-4000C)
Brand: china-castingforging.com
SKU: 671951131
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 10000-100000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Jiangyin Tianfu Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	Y81/T-4000C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Metal Turnings, Plates, Car Shells, Hms
Feed Box Size:	300020001200mm
Main Pressure:	4000kn/400t
Bale Weight:	800-1000kg
Capacity:	7-8tons/Hour
Cooling System:	Water or Air Cooler
Operation:	PLC Automatic
Forging Forming Method:	Free Forging

Product Description

1. Product Name:
Y81T-4000 Hydraulic Press Machine for Metal Scrap

2. Applications:
Y81 series of hydraulic metal baler is applicable in steel plants, recycling companies, ferrous & non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable fumace charges(shapes: Cuboid; Cylinder or octagon), so as to reduce cost of transportation, to increase speed of fumace charging.

3. Features
1)Hydraulic drive for all machine types, manual valve control or PLC control.
2)Bale-discharging: Turn-out, push-out, forward-out or manual discharging. Equipped for power.
3)No footing bolts needed in installation; Diesel engine can be equipped or power
4)Baling force 10 grades from 63 to 400 tons; Productivity from 4 to 40 tons per shift(8 hours)

4. Advantages:
1). Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn't need to install. One machine puts in one 20" container. And it saves ship cost.
2). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
3). We use good quality seals, so no oil leak.
4). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.

5.Service:
1) Lifelong maintenance and considerate technical support!

2) Any problem before or after delivery, you could find and talk with us anytime anywhere.

3) Technicians can be sent to abroad, door to door service

4) Video / CD of test running and installation, User's Manual.

5) Complete parts & tools in box sent with machine.

Model	Nominal Force (KN)	Material box size(LWH) (mm)	Bale Size (mm)	Bale Density (kg/m 3 )	Capacity (kg/h)	Cycle Time (s)	Power (kw)
Y81-630	630	1000600500	(180-250)200200	> 1800	500-1000	90	7.5
Y81-1000	1000	1000600500	(200-300)230230	> 1800	1000-1200	120	11
Y81/T-1000	1000	1000600500	(200-300)230230	> 1800	1000-1200	120	15
Y81-1250	1250	1200700600	(150-360)300300	> 1800	1000-1500	120	15
Y81/T-1250	1250	1200700600	(250-400)300300	> 1800	1500-2000	80	18.5
Y81Q-1350	1350	1400600600	(240-450)600240	> 1800	1800-2500	80	22
Y81-1600	1600	16001000700	(400-600)400400	> 1800	2000-3000	150	22
Y81/T-1600A	1600	16001000800	(400-600)400400	> 1800	2000-3000	150	22
Y81/T-1600B	1600	16001200800	(400-600)400400	> 1800	2000-3000	160	30
Y81-2000	2000	16001200800	(400-600)400400	> 1800	2500-4000	160	30
Y81/T-2000A	2000	16001200800	(400-650)400400	> 1800	2200-4000	160	30
Y81/T-2000B	2000	18001400900	(400-700)450450	> 1800	2500-4500	160	37
Y81-2500	2500	20001400900	(400-700)500500	> 1800	3500-5000	160	37
Y81/T-2500A	2500	20001400900	(400-700)500500	> 1800	3500-5000	160	44
Y81/T-2500B	2500	200017501000	(450-800)500500	> 1800	3500-5000	160	60
Y81-3150	3150	200014001000	(400-700)500500	> 1800	3500-5000	160	60
Y81/T-3150	3150	200016001200	(450-700)550550	> 1800	4000-5000	160	66
Y81/T-4000A	4000	200016001200	(450-800)550550	> 1800	5000-6000	160	74
Y81/T-4000B	4000	260020001200	(500-1000)600600	> 1800	5000-7000	180	90
