Product Description

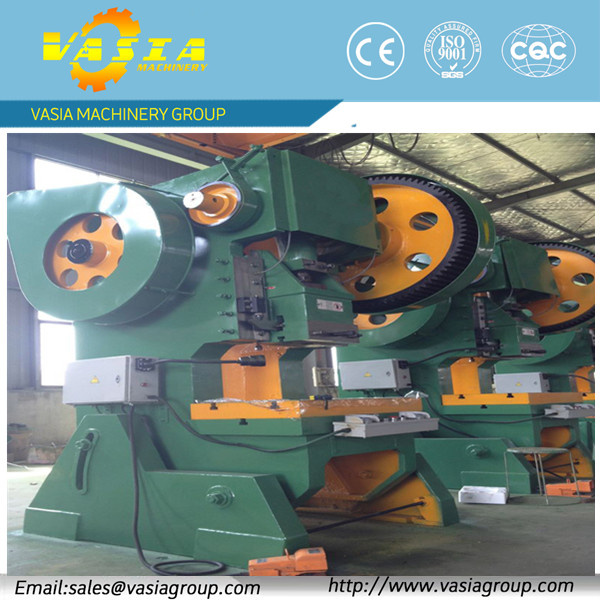

Our Factory Photo Product Introduction J23 Series open eccentric punching machine is one of the general-purpose punching machines, which are applied in areas such as forming, blanking, punching, bending and other cold stamping process. With C-frame casting fuselage, this eccentric punching machine has maximum rigidity and minimum deflection for accurate parts and long tool life. Its body can be tilted, high rigidity and less deformation compact. Thick plates and large columns provide you with the stable platform you need for your requested application. The eccentric punching machine uses rigid rotated bond clutch rigid and is well supported. The clutch gives continuous strokes for mass production. The crank shaft of the eccentric punching machine is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy. Equipped with properly sized flywheel, the eccentric punching machine is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running. Its gear is of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.It is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards. Optional protective fence and the safety interlock ensure the eccentric punching machine operate safely. Having a movable single-hand pedal switch makes it easy to operate. Optional Models
Item
Unit
J23-6.3
J23-10
J23-25
J23-40
J23-63
J23-80
J23-100
J23-125
Nominal Pressure
Tons
6.3 Tons
10 Tons
25 Tons
40 Tons
63 Tons
80 Tons
100 Ton
125 Tons
Nominal Pressure Stroke
mm
2
2
4
5
6
6
10
12
Slide Stroke
mm
35
50
70
100
120
120
130
130
Strokes per Minute
170
130
70
60
50
50
45
45
Max. Die Height
mm
120
130
200
240
280
280
300
330
Die Height Adjustment
mm
30
35
55
65
80
80
100
120
Throat Depth
mm
110
130
200
200
230
260
300
330
Bolster Surface Size
F.B.
mm
200
240
320
430
450
480
550
650
L.R.
mm
310
360
520
650
710
780
950
1050
Bed Opening Size
F.B.
mm
110
100
190
150
200
220
250
340
L.R.
mm
160
180
290
300
340
340
370
530
Dia.
mm
140
130
260
200
250
260
300
450
Slide Surface Size
F.B.
mm
120
150
170
220
230
250
280
380
L.R.
mm
140
170
250
280
300
320
360
510
Size of the handle hole
mm
Φ30X55
Φ30X55
Φ40X60
Φ50X70
Φ50X70
Φ60X70
Φ60X80
Φ80X80
Uprights Distance
mm
150
180
260
300
350
350
380
410
Thickness of Bolster
mm
30
50
60
80
90
90
100
110
Inclinable Angle
degree
45
30
30
30
30
30
25
25
Main Motor
Model
Y90S-6
Y90L-6
Y112M-6
Y132M1-6
Y132M2-6
Y132M2-6
Y132M-6
Y132M-4
Power
kW
0.75
1.1
2.2
4
5.5
5.5
7.5
11
Overall Dimension
F.B.
mm
780
915
1450
1500
1700
1810
1950
2150
L.R.
mm
570
750
950
1180
1330
1450
1500
1350
Height
mm
1500
1690
2100
2300
2540
2850
2800
3350
Gross Weight
kg
450
680
1630
2850
4100
4550
7350
8750
