| Prod Model: |
HU-10T/1300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Loading Capacity:10000kgs: |
Main Power: 5.5kw |
Product Description

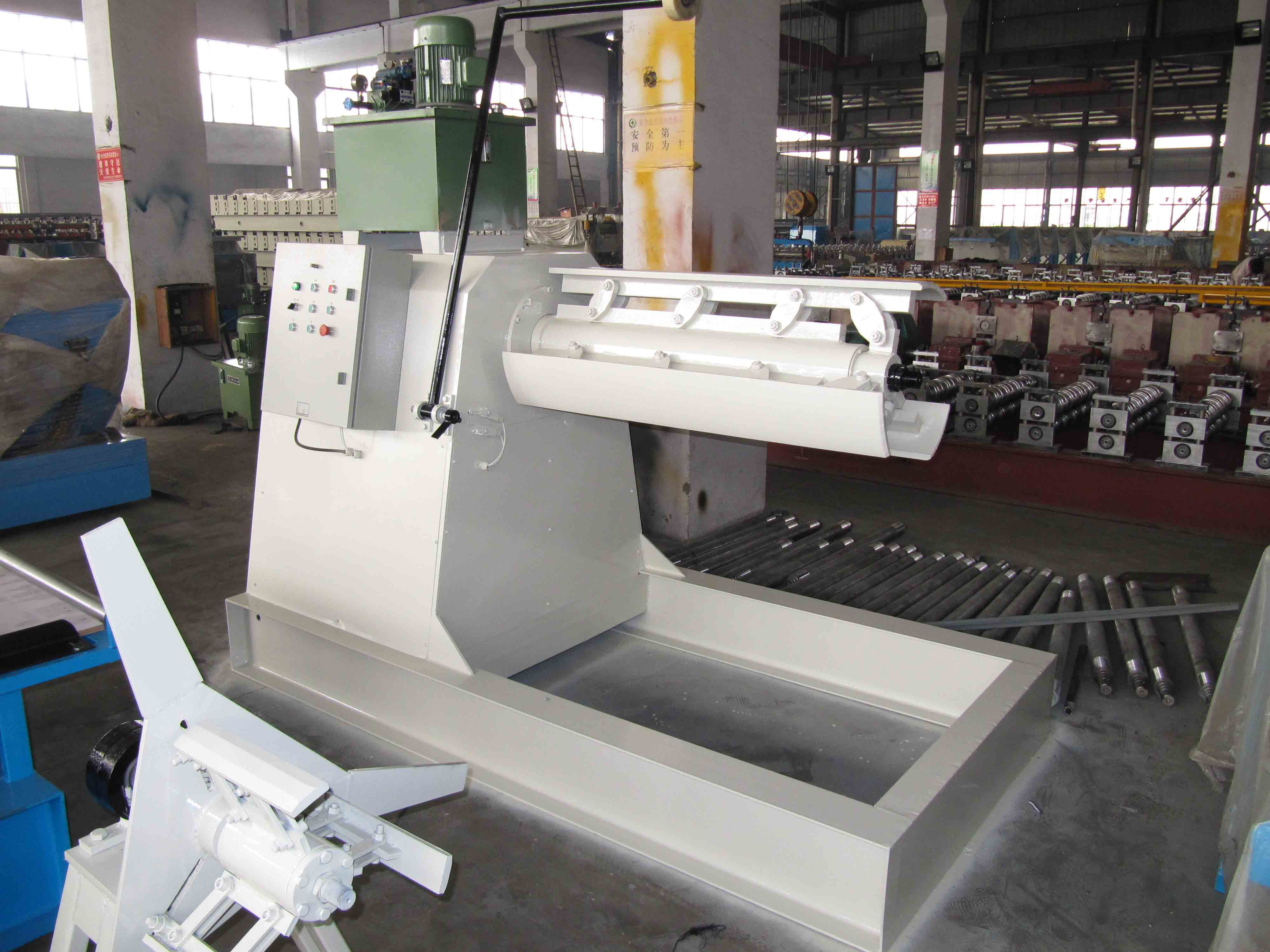

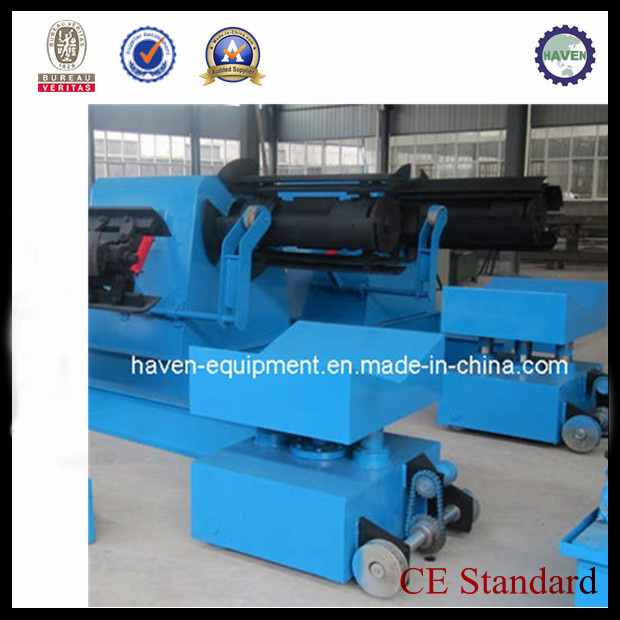

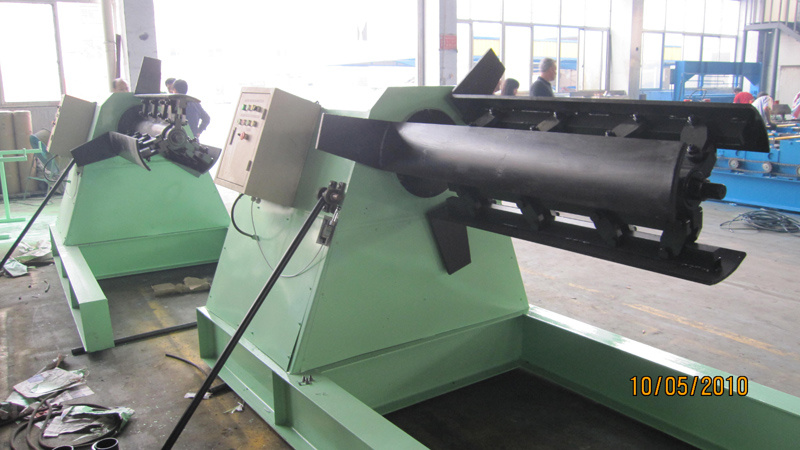

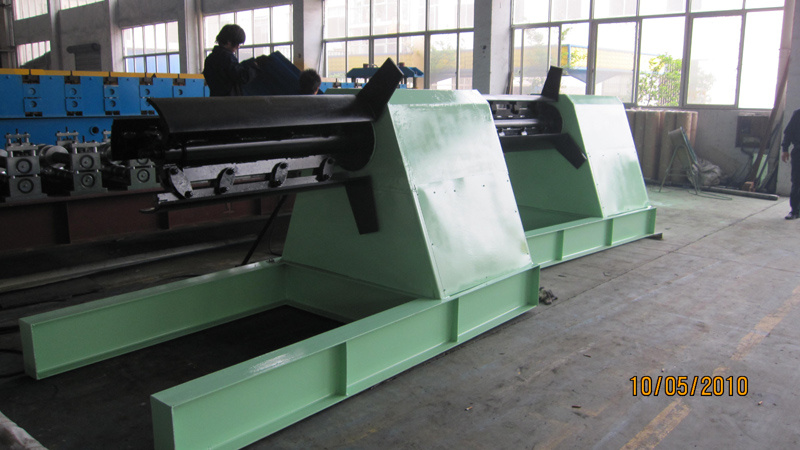

Hydraulic uncoiler main specification:
(1) single-headed hydraulic expanded de-coiler
(2) Main power: 5.5 KW
(3)Capacity of the de-coiler: 10 tons
(4) Power of the open and closure of segments: Hydraulic
(5) Power of rotation of segments: Hydraulic
(6) Number of segment: 3
(7) Range of segment expansion: 460 ~ 515mm
(8) Inner diameter of coil: 508mm
(9) Maximum outer diameter of coil: 1500mm
(10)Maximum width of coil: 1300mm
(11)Height of center of the mandrel: 1.2M
(12)Feeding speed: 0~35m/minute
(13)Approximate Size: Length: 2.9M Width: 1.1M Height: 1.6 M
(14) Speed control: One sensor is used to control the speed of feeding the material.
(15) Methods of operation: Manual and automatic control.
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
We, Shaanxi Haven Equipment & Trading Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
