Prod Model: |
QC12y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cutting Thickness (mm): |
4-40 |
Cutting Angle: |
1°30`-4° |
Color: |
Yellow |
Processing Object: |
Aluminum,Stainless Steel Plate,Carbon Steel |
Forging Forming Method: |
Free Forging |

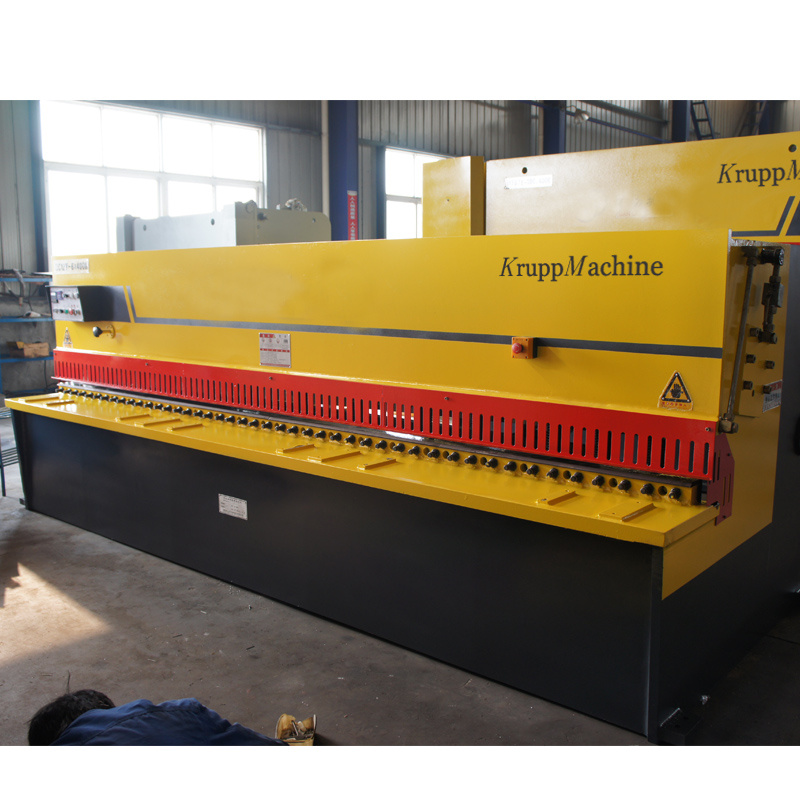

Product Description
1.The machine employs hydraulically-driven swing beam,the steel plate welded structure,and accumulator-based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3.The machine is equipped with lighting alignment device,and uses steeples control for the stroke of up
tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.
Model | Cutting thickness (mm) | Cutting width(mm) | Cutting angle(º) | Travel times (min-1) | Stopper adjust range(mm) | Motor power (Kw) | Dimension (L × W ×H) (mm) |
4×2500 | 4 | 2500 | 1°30` | ≥16 | 20-600 | 4 | 3040×1430×1560 |
4×3200 | 4 | 3200 | 1°30` | ≥12 | 20-600 | 5.5 | 3840×1675×1720 |
4×4000 | 4 | 4000 | 1°30` | ≥10 | 20-600 | 5.5 | 4640×1850×1800 |
6×2500 | 6 | 2500 | 1°30` | ≥16 | 20-600 | 7.5 | 3040×1520×1690 |
6×3200 | 6 | 3200 | 1°30` | ≥12 | 20-600 | 7.5 | 3840×1660×1720 |
6×4000 | 6 | 4000 | 1°30` | ≥10 | 20-600 | 7.5 | 4640×1855×1800 |
6×5000 | 6 | 5000 | 1°30` | ≥8 | 20-600 | 11 | 5786×2200×2160 |
6×6000 | 6 | 6000 | 1°30` | ≥7 | 20-600 | 11 | 6800×2130×2270 |
8×2500 | 8 | 2500 | 1°30` | ≥12 | 20-600 | 11 | 3040×1575×1720 |
8×3200 | 8 | 3200 | 1°30` | ≥10 | 20-600 | 11 | 3840×1675×1750 |
8×4000 | 8 | 4000 | 1°30` | ≥8 | 20-600 | 11 | 4680×1850×1800 |
8×5000 | 8 | 5000 | 1°30` | ≥7 | 20-600 | 15 | 5786×2200×2160 |
8×6000 | 8 | 6000 | 1°30` | ≥5 | 20-600 | 18.5 | 6800×2130×2270 |
10×2500 | 10 | 2500 | 1°30` | ≥10 | 20-600 | 15 | 3200×1960×1800 |
10×3200 | 10 | 3200 | 1°30` | ≥9 | 20-600 | 15 | 3950×1840×1810 |
10×4000 | 10 | 4000 | 1°30` | ≥8 | 20-600 | 15 | 4720×1870×1925 |
12×2500 | 12 | 2500 | 1°30` | ≥10 | 20-800 | 18.5 | 3225×1950×1910 |
12×3200 | 12 | 3200 | 1°30` | ≥9 | 20-800 | 18.5 | 3925×2130×2050 |
12×4000 | 12 | 4000 | 1°30` | ≥8 | 20-800 | 18.5 | 4740×2290×2170 |
16×2500 | 16 | 2500 | 2° | ≥8 | 25-800 | 18.5 | 3240×2182×2040 |
16×3200 | 16 | 3200 | 2° | ≥7 | 25-800 | 22 | 3940×2222×2100 |
16×4000 | 16 | 4000 | 2° | ≥5 | 25-800 | 22 | 4750×2290×2225 |
20×2500 | 20 | 2500 | 2°30` | ≥6 | 30-800 | 37 | 3340×2265×2230 |
20×3200 | 20 | 3200 | 2°30` | ≥5 | 30-800 | 37 | 4050×2400×2330 |
20×4000 | 20 | 4000 | 2°30` | ≥5 | 30-800 | 37 | 4870×2600×2535 |
25×2500 | 25 | 2500 | 3° | ≥5 | 30-800 | 45 | 3400×2430×2335 |
25×3200 | 25 | 3200 | 3° | ≥4 | 30-800 | 45 | 4100×2580×2490 |
25×4000 | 25 | 4000 | 3° | ≥4 | 30-800 | 45 | 4950×2500×2600 |
30×2500 | 30 | 2500 | 3°30` | ≥4 | 30-800 | 45 | 3300×2900×3000 |
30×3200 | 30 | 3200 | 3°30` | ≥4 | 30-800 | 55 | 4200×2500×2600 |
40×2500 | 40 | 2500 | 4° | ≥3 | 30-800 | 55 | 3200×3300×3200 |
40×3200 | 40 | 3200 | 4° | ≥3 | 30-800 | 55 | 4300×3300×3000 |
The above data is just for you reference,if there is any disaccord please refer to actual data
Ma'anshan Krupp Machinery Trade Co., Ltd is located in Ma'anshan Bowang
Industrial park. We are near to Nanjing South station and Nanjing Lukou airport, which is convenient to be visited.
Our company adopts international advanced management mode and imports Japanese and German technology. We are the enterprises with collection brand, research and development, design and manufacture.
We passed ISO9001: 2008 international quality system certification and has obtained many patent. All machines are with CE certification.
Our company are professional in producing metal forming machine, including CNC press brake, shearing machine, rolling machine, combined punching shearing machine, hydraulic notching machine, punching machine and all kinds ofmechanical tools, die.
We have rich clients in many countries and regions. Beside offer the machines with good quality, we also have experienced after sales service team. If thereis need, our engineers can go to the buyer's side to offer training and installation at the earliest time.
"Quality Create Future" is our concept. We'll try our best to achieve every product.
