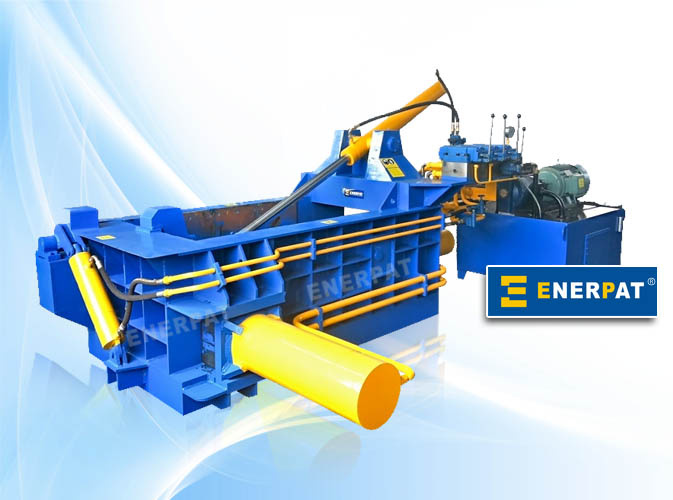

Hydraulic Top Ejection Metal Baler (SMB-F100XL)

Hydraulic Top Ejection Metal Baler (SMB-F100XL)
Price: Negotiable/Piece
Trade Terms: FOB,others
Min Order: 1/Piece
Pay Type: T/T
Prod Model: SMB-F100XL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Hydraulic Top Ejection Metal Baler SMB-F100xl
Pressing Chamber: 1200*600*600 Mm
Bale Size: 240*240 Mm
Bale Weight: 25-40 Kgs
Output: 0.8-1.0 Tons/Hour
Motor: 15 Kw

Product Description

Model: Hydraulic Top Ejection Metal Baler SMB-F100XL

Applications:

This F100XL is a kind of Heavy Duty Metal Balers. It is a star in Enerpat Metal Baler Family in a decade. It is born with a SIEMENS motor, Nok Seal rings, Enerpat Rams and Packer Hose.

This Top Ejection Baler has a big pressing chamber, so it is perfect for loading more big size scrap metals. Like the steel shavings, scrap steels, scrap aluminium, scrap coppers, scrap stainless steels and so on, all these kinds of metal materials can be made into qualified furnace. And it is equipped with a hand valve control, which makes easy and safety operation for the operators.

We use the TOP brands such as the SIEMENS motor drive. And the machine press from three sides, which means the metals can be compacked into a high density bale.

Unique Features:
1. Top Loading ( Loading with grab bucket or Steel Conveyor)
2. No installion demands, operating the baler directly
3. With control platform on the baler, convenient for operating
4. Three rams pressing the scrap metals.
5. Automated bale ejector, the bale pushed out from the side of the bale
6. With cooler and hotter ( For special temperature environment)
7. Hydraulic Oil is ISO 46

We do have many models in this sery, the similiar sizes, like the bigger pressing chamber or the smaller, the more ourputs and so on. You can see the following form as a reference or you can come to visit our website to get more information you want.
Model Press Chamber(mm) Bale Size(mm) Bale Weight(kgs) Output(tons/hour) Shipping Weight(tons) Motor(kw)
F63S 1000*600*500 200*200 15-30 0.4-0.8 4 11
F63L 1100*600*500 200*200 15-30 0.4-0.8 4.4 11
F63XL 1200*600*500 200*200 15-30 0.4-0.8 5 11
F100S 1200*600*500 200*200 20-30 0.5-0.8 4.6 15
F100L 1200*600*600 230*230 30-35 0.6-0.7 5.5 15
F100XL 1200*600*600 240*240 25-40 0.8-1.0 5.5 15
F100XLL 1300*600*500 300*300 45-50 1.0-1.2 6.2 15
F125S 1200*700*600 240*240 40-50 1.2-1.4 4.8 15
F125L 1400*700*700 300*300 60-90 1.5-2.0 7.5 18.5
F125XL 14001000*700 300*300 70-100 1.5-2.5 10.8 45
F160S 1400*900*700 320*320 70-85 1.5-2.2 10.2 22
F160L 1600*1000*800 400*400 100-180 2.0-3.5 10.8 22
F160XL 1600*1200*800 400*400 100-200 2.0-4.0 15 45
F200S 1600*1000*800 400*400 120-220 2.5-4.5 13.5 45
F200L 1600*1200*800 400*400 120-220 2.5-4.5 13.5 37
F200XL 1800*1500*400 400*400 180-350 3.5-6.0 25 44
F250S 2000*1400*9000 500*500 200-450 4.0-7.0 19.5 60
F250L 2000*1400*1000 500*500 200-450 4.0-7.5 27 60
F250XL 2000*1400*9000 500*500 200-450 5.0-8.0 27 60
F315S 2000*1750*1200 500*600 300-500 6.0-10.0 31   45
F315L 2500*2000*1200 600*600 400-700 6.0-10.0 50 45(two)
F315XL 2600*2000*1200 500*600 400-700 6.0-10.0 52 45(two)
F400S 3000*2000*1200 600*700 500-800 7.0-11.0 58 45(two)
F400L 5000*2000*1200 700*700 600-900 8.0-12.0 90 45(three)

ENERPAT is a British multinational engineering and recycling company headquartered in London and Manchester. It is UK' S largest engineering company and maker of scrap recycling equipment and its recycling plant, which generates about 12 percent of the company' S total sales, is its second-most profitable unit behind the industrial automation division

Enerpat' Principal activities are in the fields of industry, energy, environment and recycling. It is organized into three main divisions: Industry, Energy, recycling, Enerpat and its subsidiaries employ around 50, 000 people across nearly 20 countries and reported global revenue of approximately € 28.3 billion in 2012. The company has been the subject of a number of controversies in its history.

Enerpat offers a wide range of recycling engineering- and scrap processing-related products and services. Its products can be broadly divided into the following categories:

Car Recycling Plant, Tyre Recycling Plant, E-Waste Recycling Plant, Municipal waste recycling plant. Waste Shredders, Waste Balers, And Waste Machines. And transportation and logistics-related products

Nantong Enerpat Machine Co., Ltd is the wholly owned subsidiary of ENERPAT

Which also Enerpat' ' S Asia production base.
