| Prod Model: |
SS751-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Three Leg Structure: |
Easy to Operate |
| High Dewatering Efficency: |
CE Quality |
| Operational Method: |
Continuous |
| Structure: |
Extracting Machine |
| Operation Pressure: |
No Pressure |
| Movement Way: |
Extracting or Squeezing |
| Heating Mode: |
No |
Product Description

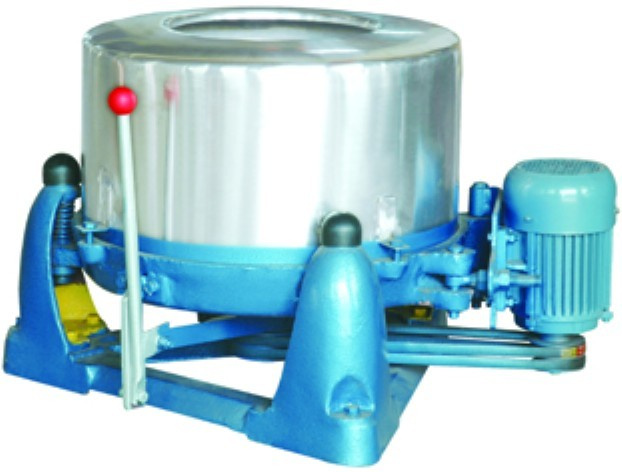

Industrial hydro extractor, commercial hydro extractor, laundry hydro extractor
The diameter of the machine could be 600mm, 800mm, 1000mm, 1200mm, 1500mm. Three legs suspended machine is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.
Main character of Spin Dryer:
1. Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
2. The durable drum is made of stainless steel.
3. Equipped with special brake arms which is durable and reliable make the machine more safe.
4. The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
5. CE and ISO9001 certificates.
| Type | SS752-500 | SS752-600 | SS753-800 | SS751-1000 | SS754-1200 | SWE301-1500
(with inverter) |
| Diameter of drum(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
| High of drum(mm) | 260 | 300 | 340 | 380 | 480 | 600 |
| Speed of drum(r/min) | 1000 | 1000 | 910 | 900 | 750 | 750 |
| Motor power(Kw) | 1.2 | 2.2 | 4 | 5.5 | 7.5 | 10 |
| Max. capacity(Kg) | 25 | 45 | 80 | 130 | 220 | 500 |
| Overall dimension(mm) | 1000× 1000× 650 | 1250× 1250× 700 | 1500× 1500× 800 | 1800× 1800× 900 | 2000× 2000× 1000 | 2550× 1950× 1400 |
| Weight (Kg) | 220 | 420 | 720 | 1050 | 1500 | 2800 |
Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.
Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
