| Prod Model: |
TL-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Spinning Machinery |
Product Description
Product Description
Product Description

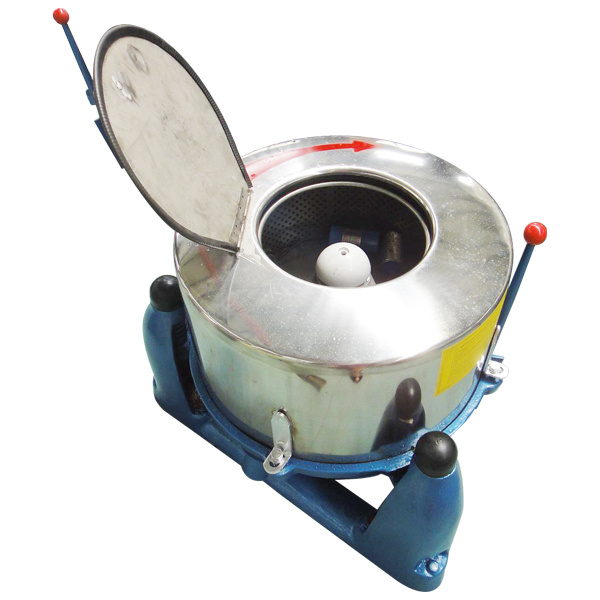

Hydro extractor, spin dryer, laundry dryer, dewatering machine, spinning machine, centrifuging machine
This hydro extractor isto do water extracting job after the fabric is washed
Features:
The drum of this machine is made of stainless steel
Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
The extracting speed of this machine is from 950 rpm to 750rpm
The capacity of this spinning machine is 210kg, and it will make the material inside dried by its high Centrifugal speed.
The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
Equipped with special brake arms which is durable and reliable make the machine more safe.
The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
The diameter of the industrial water extractor is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.
| model | motor power | drum dimension | overall dimension(mm) | weight (KG) |
| TL500 (50kg) | 1.5KW | Φ 500 | Φ 950*600 | 300 |
| TL600 (60kg ) | 2.2KW | Φ 600 | Φ 1220*700 | 500 |
| TL800 (90kg) | 4KW | Φ 800 | Φ 1720*840 | 800 |
| TL1000(120kg) | 5.5KW | Φ 1000 | Φ 1830*840 | 1400 |
| TL1200 (210kg) | 7.5KW | Φ 1200 | Φ 2100*1050 | 1800 |
| TL1500(350kg) | 8KW | Φ 1500 | Φ 2550*1400 | 2100 |
| TL1800(650kg) | 12KW | Φ 1800 | Φ 2700*1560 | 2300 |
| we can also design cap on the top of the dehydrated machine | we can design steel covers on this machines |
