Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Maintainance Period: |
12 Months |
After Sale Service: |
Provide Long-Terms Technical Support |
Service: |
The Whole Life |
Note: |
Machine Can Be Made as You Request |
Install: |
Install Video, Sketch Are Available |
Engineer: |
Enginner Overseas Avaiable |
Manufacture: |
Zhengzhou Gou's |
Energy: |
Electirc |
Electric Consumption: |
Save 10%-30% Electric Than Other Heating Method |
Work Theory: |
Electromagnetic Induction Heating |
Casting Form Material: |
Metal |
Casting Form Usage Count: |
Permanent |
Casting Method: |
Induction Casting |
Casting Metal: |
All Kinds of Metal |
Coating: |
No |
Product Description

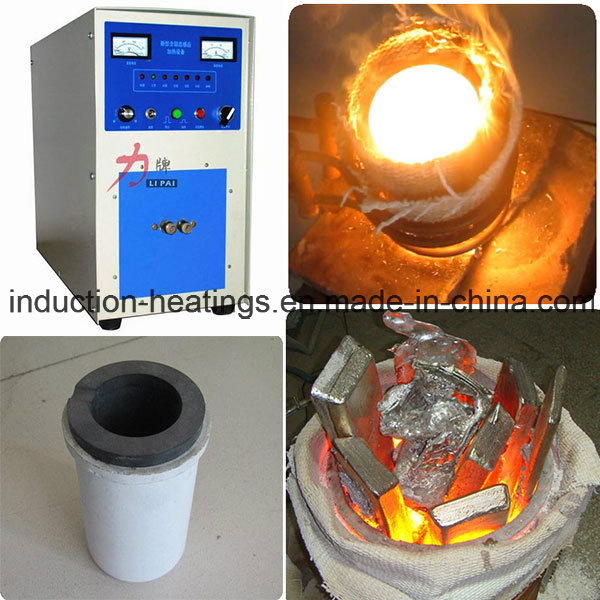

IGBT Induction 3kg Aluminum Casting Furnace WH-VI-30KW
2. Features of Induction 3kg Aluminum Casting Furnace:
1. All-solid-state IGBT frequency conversion and power adjustment, soft-switching resonance dual-control and frequency automatic tracking technology is the reliability of guarantee. module and soft
switching inverting technologies are used in the production of the generator, higher reliability can be
achieved;
2. Small size and portable , compared with SCR controlled machine, only 1/10 working space is needed,
greatly reduce occupation space;
3. High efficiency and energy saving: a high power factor and power efficiency within the scope of full
power.
4. With wide frequency range from 1-20KHZ automatic tracking ability, no need adjustment at scene.
5. 100% duty cycle , 24hours continuous working ability at maximum power.
6. Constant output voltage or power control modes are alternative;
7. Full display of output power, output frequency, output voltage and current.
8. The timer function: heating time and retaining time: 0.1~99.9second.
Technical Parameter of Induction 3kg Aluminum Casting Furnace:
Model | WH-VI-30 | Work power | Three phrase 380v/ 50-60hz |
Max output power | 30kw | Working voltage range(AC) | 342-430v |
Max input current | 55A | Oscillation frequency | 10-60khz |
Cooling water flow | 15L/min(0.1mpa) | Cooling water pressure | 0.1-0.3mpa |
Efficiency | 95% | Continuous load rate | 100% |
Host weight | 45kg±5% | Host size | 580x280x510mm |
Temperature protection | 50ºC | Color of host | Blue/White |
Contact Information:
Name | Thea |
Phone | 15225199097 |
| 15225199097 |
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
