Material Grade Of Forged Bars:
Incoloy 800h
Processing Object:
Metal
Molding Style:
Forging
Molding Technics:
Forged
Product Description

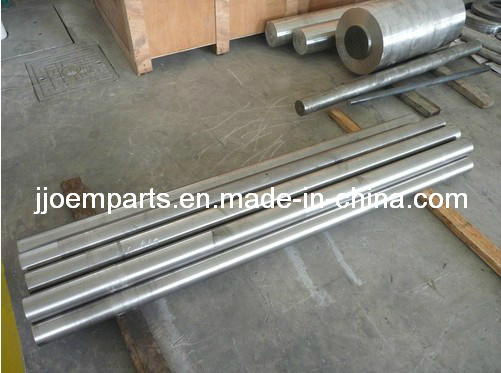

We are one leading producer of Incoloy 800H, Incoloy 800 H forged round bars, Incoloy 800H, Incoloy 800 H forging round bars, Incoloy800H forged/forging round bars, UNS N08810 forging/forged round bars, Alloy 800H forged/forging round bars, 1.4958 forging/forged round bars factory from china We could produce Incoloy 800H, UNS N08810, 1.4958 forging/forged round bars with diameters ranging from 10MM to 6000MM and with weights from 10KGS to 15000KGS The melting method of Incoloy 800H, UNS N08810, 1.4958 material is ESR+VIR or VIM+ESR+VAR Our Incoloy 800H, UNS N08810, 1.4958 forged/forging round bars are widely used in in chemical plants and heavy vessels, pump and valve producers, and industrial blades. Separators and centrifuges, Cement industry and sugar industry, drilling platform, drilling rig, pipelines and refineries, power generation and power plants, , generators, compressors, gear boxes. Oil & gas industry, concrete mills and mixers, processing units, crystalizer equipment and so on Our Incoloy 800H, UNS N08810, 1.4958 forged/forging round bars could be 100% Ultrasonic Inspection as per the forging parts UT Test standard of ASTM A 388 or EN10228. We could supply Incoloy 800H, UNS N08810, 1.4958 forged/forging round bars material certificate as per the standard of EN10204-3.1 or EN10204-3.2 of third party Any inquiry of Incoloy 800H, UNS N08810, 1.4958 forged/forging round bars, please feel free to contact us. We are glad to quote the best price for every clients
Specification
UNS
W.Nr
N08810
1.4958
Chemical composition
Grade
%
Ni
Cr
Fe
C
Mn
Si
Cu
S
Al
Ti
P
800H
Min
30
19
Bal,
0.05
0.15
0.15
Max
35
23
0.10
1.5
1
0.75
0.015
0.60
0.60
0.03
Mechanical properties:(Minimum value at 20°C)
Tensile Strength σb/MPa
Yield Strength σp0.2/MPa
Elongation σ5 /%
450
180
35
Alloy 800H Standard
Bar
Forging
Sheet/Strip
Wire
Pipe
ASTM B408
ASTM B564
ASTM B409
ASTM B408
ASTM B407 ASTM B514
Jiangsu Liangyi Co.,Limited is one professonal special alloy material supplier from China,
Since establised in 1997, our products has been exported to many countries, such as American, European countries, Asian countries, and so on.Our products are widely used in petroleum and chemical industry, power generation, shipbuilding, heavy machinery, Oil&Gas applications:Christmas trees, wellhead components, spools, , riser applications, pressure vessel, and so on.
We own one workshop of more than 8000 square meters, with a vacuum melting, electroslag remelting, forging,Casting,heat treatment, machining, quality inspecting machines and a full-line of production system.
Our company mainly produces materials in:Carbon&alloy steel, Tool&Die Steel,Stainless steel, Duplex Stainless Steel, Nickel alloy, Super Alloy,Cobalt Based alloy,Heat Resistant steel,Invar alloy ,low Expansion Alloy,Soft Magnetic Alloy and so on
We could produce these material in Forging parts,Forged Rings,Rolled Rings,Bars,flanges, Casting Parts,Pipe Fittings,seamless pipe,Weled Pipes,Plates,Sheets,Strips,Coils Wires,spring ,Fasteners,Machining Parts, and so on
Following is the steel grade that we could do
