| Prod Model: |
kingkar5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Kingkar5000 |
| Input Power: |
3 Phase 380 V (50-60) Hz±10% |
| Working Current(a): |
300 |
| Environment Temperature: |
0-40 |
| Water Consumption(L/H): |
2.7 |
| Flame Temperature: |
800-3200 Adjustable |
| Way To Work: |
Continuous |
| Appearance Size(L*W*H)Mm: |
1150*850*1680 |
| Max.Relative Humidity(%): |
90 |
| Max.Gas Output(Lph): |
5000 |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Automation: |
Automatic |
| Type: |
Cutting Machines for Sale |
| Type For Fold-bending Machine: |
Cutting Machines for Sale |
| Type For Pipe And Tube Bending Machine: |
Cutting Machines for Sale |
Product Description

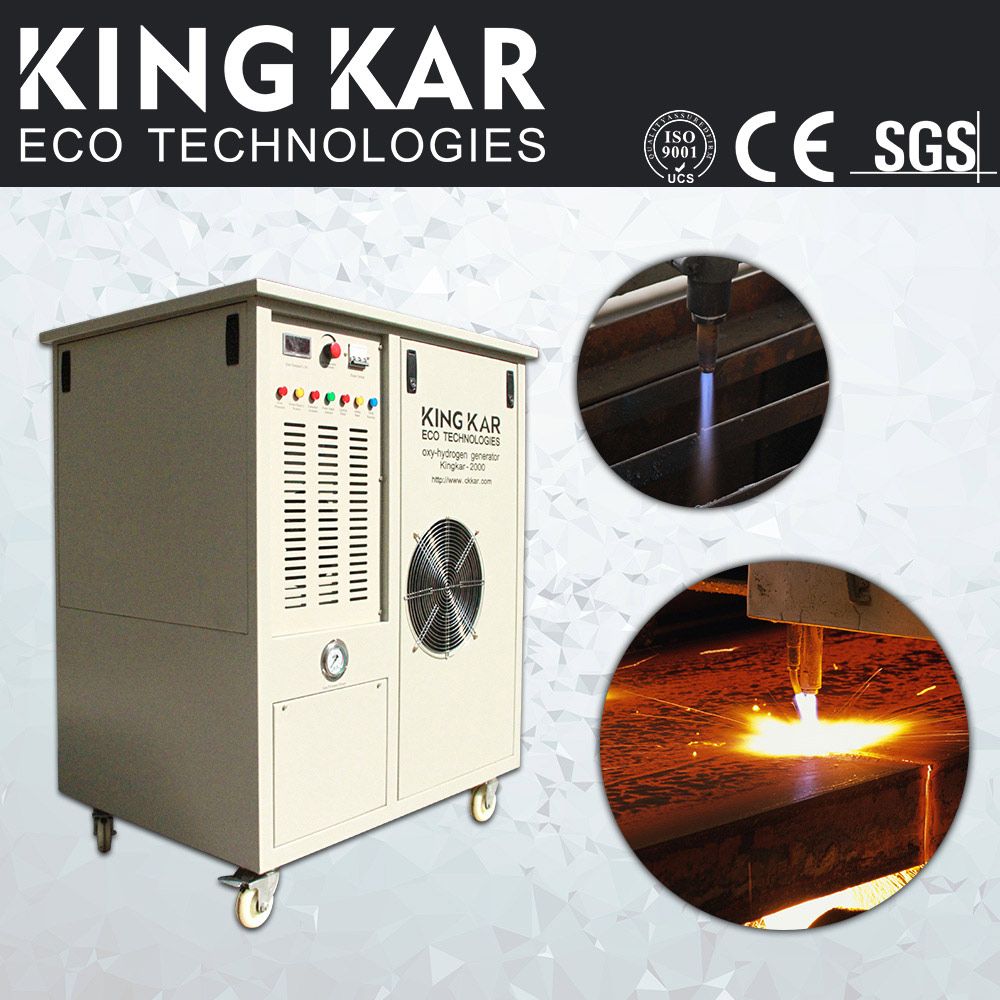

What is hho cutting machine:
Oxyhydrogen Generator/ oxy-hydrogen cutting machine consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. Oxyhydrogen Generator/oxy-hydrogen cutting machine is used for welding, cutting, polishing, brazing, glass processing and jewelry processing. Also can burst with other fuel together for heating.
Multi-functions application of hho Generator/Carbon Steel Cutting Machine:
1. Carbon Steel Cutting of machine building industry, shipyard, steel structure processing plant.
2. Continuous casting slab cutting of Steel Plant.
3. Cooperate with manual cutting torch, semi-automatic cutting machine, shape cutting machine, CNC cutting machine to instead of traditional fuel gas.
HHO generator Features and Benefits
1. Adopt the world's leading SPE/PEM technology to produce hydrogenby electrolyzing pure water.
2. No longer need to use dangerous and expensive hydrogen cylinders.
3. High purity hydrogen (99.999%~99.9999%), stable output flow, safeand convenient to operate, various alarm devices (overpressurealarm, water shortage alarm, water accumulated alarm).
4. Easy to operate, safe and reliable, generating hydrogen throughelectrolyzing pure water, switching power on to produce gas(available for several sets of gas chromatography).
5. High electrolysis efficiency. Gas purity and output flow willstay regular under continual use.
6. High reliability, easy to maintain.
7. Match with all kinds of GC.
8. No corrosion and pollution.
HHO generator Product Introduction
The series of products, producing highly pure hydrogen by utilizingSPE technology to electrolyze pure water(no adding alkali), arelight, highly effective, energy-saving, and of environmentalprotection. They are advanced patented products.
Technical Data Sheet
| Cost Comparison between Oxy-hydrogen Cutting and Acetylene and Propane cutting |
Test tool: stopwatch,mass flow meter, three-phase watt-hour meter, straight line cutting machine
Test steel plate: 1m long, 60mm thick steel plate
Test method: take the average of ten times test
General data:
Propane: $1.39/kg
Acetylene: $3.15/kg
Oxygen: $2.5/bottle=$0.41/m3
Electricity price: $0.13/degree |
| Comparison Terms | Acetylene | Propane | Oxy-hydrogen gas |
| Cutting time | 3 mins and 55s | 4 mins and 30s | 4 mins |
| Oxygen consumption | 180L | 250L | 151.7L |
| Fuel gas consumption | 0.061kg | 0.06kg | 0.45 degree electricity |
| Oxygen cost | $0.071 | $0.11 | $0.061 |
| Fuel gas cost | $0.2 | $0.081 | $0.06 |
| Total cost | $0.271 | $0.191 | $0.121 |
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Maximum Cutting Thickness(mm) | 110 | 220 | 310 | 420 |
| Effective perforated thickness(mm) | 40 | 60 | 70 | 90 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
