| Prod Model: |
HD61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Catalytic Burning |
| Deformation Temperature: |
Isothermal Forging |
| Molding Style: |
Forging |
| Molding Technics: |
Pressure Casting |
| Casting Method: |
Special Casting |
Product Description

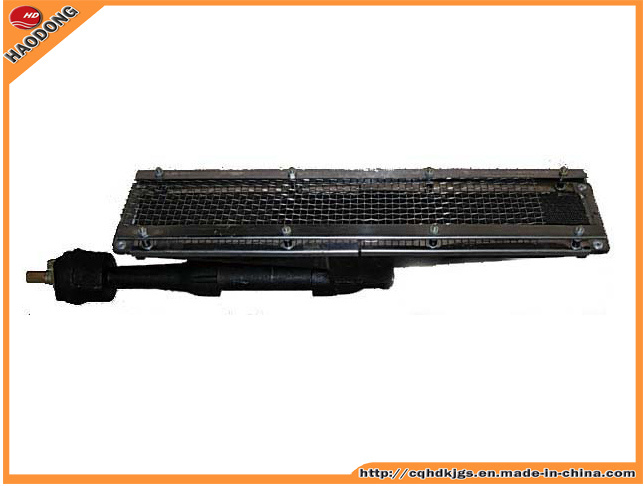

1. Type: HD61
Gas type: LPG or NG
Dimension: 423L*80W*94H (mm)
Weight: 3.8Kg/PC
Heat output: 2030Kcal/h or 2.4KW/h
Gas consumption: 0.17Kg/hr for LPG at the pressure rating of 2.9Kpa
0.18m3/hr for NG at the pressure rating of 2.0Kpa
2. Advantages:
A. Energy saving: Conversion rate ≥ 90%
B. Environmental protection: COx ≤ 80 p p m; NOx ≤ 10ppm; CHx ≤ 50ppm
C. Whole combustion: 95% of energy released in the form of infrared ray; Heating the objects directly
D. Long useful time: Over 11000hr
E. Easily installed
3. Applied Range
A. Food Industry:
Rice Biscuit assembly line, grilled chichen biscuit, egg roll, roasting shredded squid oven, roasting oven for pachyrhizus, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
B. Painting Industry
Liquifized or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line.
C. Fibre industry
Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line.
Glass and ceramics industry: Enamel firing dryer, glassoven, heatiheat-setting machine, mould drying, fritting, parching
D. Paper industry
All kinds of paper dry lines and auxiliary drying heat wall.
E. Farming and animal husbandry
Heating of barton, heating of crops, grain dryer.
4. Brief Introduction to Products
HD61 Infrared Catalytic Gas Burner uses porous ceramics as burning matrix, designed with advanced technology. It can save 50%energy and reduce pollution by using Infrared Catalytic Gas Burner for heating, drying and heat preservation. This is because the Infrared Catalytic Gas Burner mixes the gas and the air completely before burning to make sure the whole combustion and reduce the pollutant discharge. When the Infrared Catalytic Gas Burner burning. It can radiate infrared ray that is of strong penetration to arouse resonance of moisture and let the heat permeates the heating object equably. It can ensure that heat availability is well-proportioned as well as improve the quality of heating and effciency of drying
|
Model |
length |
width |
height |
weight |
consumption |
heat output |
Inlet port |
|
|
mm |
mm |
mm |
kg |
NG(m3/h) LPG(kg/h) |
kw/h kcal/h |
Inch |
|
HD61 |
423 |
80 |
94 |
3.8 |
0.18 0.17 |
2.4 2030 |
1/8 |
|
Item |
Technology Petroleum |
|
Gas species |
Nature Gas/Liquefied petroleum gas/Oil gas/ The artificial coal gas |
|
Light-off temperature |
≥ 350º C |
|
Complete combustion temperature |
≤ 380º C |
|
Heat source temperature |
850º C |
|
Heating temperature range |
30º C---850º C |
|
Heating temperature range |
1.9μ m----15μ m |
|
Furnace front pressure |
2000pa(NG) / 2800(LPG) |
Chongqing haodong technology Co., Ltd. Which is specialize in researching, developing, manufacturing and marketing Gas Burner, Infrared Burner, Infrared Heater, Gas Heater, Catalytic Burner, Industrial Heater, Gas BBQ, Gas Grill, Barbecue.
Our product can be used for Food Baking Oven, Fruit and Vegetable Dehydration Process, Brewing Industry, Tea Drying Machinery, Annealing Furnace, Powder Coating Industrial Oven, Textile Drying, Latex Glove and Condom Moulding and Drying and so on.
We are dedicated to domestic and international, advanced Infrared Catalytic Burner as well as introduction and adoption of related energy-saving and environmental products and technology, gives priority to a series of products that conform to the practical application of international BBQ machine. We have experienced administrators and technicists who are professionalized in inrared catalytic gas burner. It is a rigorous, energetic elite team skilled in design, application, management and after-sales services of heat-supply system.
Existing products can be divided into the following series: Infrared catalytic burners for smoke-less oven; Infrared catalytic burner for middle eastern BBQ; Postpositive infrared catalytic burner; Circular infrared catalytic burner; Infrared catalytic gas burner. The maine application ranges from food roaster, industrial oven to drying equipments. We hope to cooperate with customers developing new infrared catalytic combustion products, to meet demands of various new markets. Our company got a favourable reception at home and abroad for it's management philosophy and good quality products.
Management philosophy: Having details on our brain; Making competitive products; Providing all-round services; Meeting customers' needs.
Enterprising spirit: Dedicated and pragmatic; Pironeering and inventing; Professional focus; Creating value.
Warmly welcome customers at home and abroad cooperating with us.
