| Prod Model: |
BHHTFWXT001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermal Expansion: |
Low |
| Specific Surface Area: |
High |
| Capacity: |
Large |
| Heat Storage Capacity: |
Large |
| Pressure Drop: |
Low |
Product Description
Value of products and product presentation:

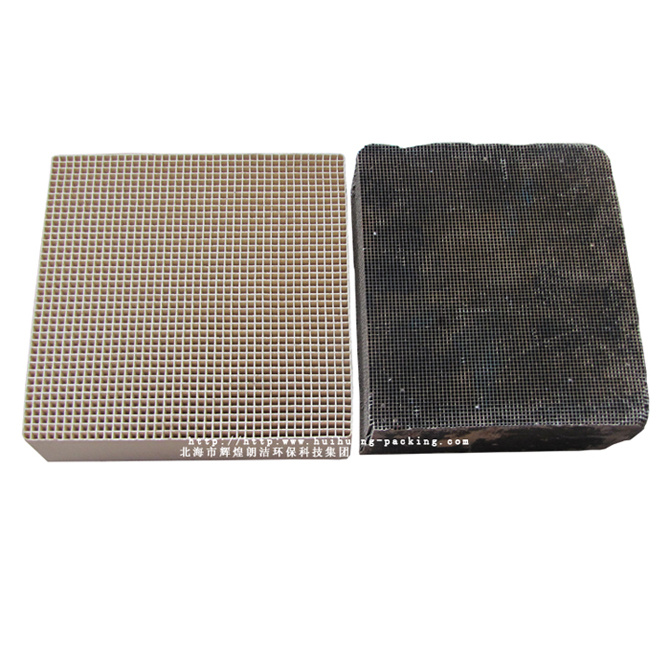

Honeycomb ceramic regenerator , but also name as the high-temperature combustion regenerator,is the key and core components of a regenerative high temperature combustion technology (HTAC technology ) . Has been widely used in various metallurgical machinery industry pusher furnace, reheating furnace and heat treatment furnace , forging furnace, melting furnace , ladle / tundish baking also and radiant tube burners, hood-type furnace, hot blast furnace furnace ; various ceramic kiln building materials industry , a variety of glass furnace ; various petrochemical industry pipe furnace, cracking furnace and other industrial furnaces .
Product function:
(1). To reduce the heat loss of the exhaust gas, maximize the utilization rate of the fuel and reduce the unit energy consumption
(2). Increasing the combustion temperature,improve the combustion conditions,to meet the requirements of high temperature thermal equipment ,expand the low calorific value fuel,especially the application of blast furnace gas, improve the utilization rate of the calorific value of fuel, reduce the low calorific value gas diffusion;
(3). Improving the conditions of heat exchange equipment, improve the quality of production and products, reduce equipment investment;
(4). Reducing emissions emissions per unit of product of thermal equipment and harmful gas, reduce air pollution, improve the environment;
Product features:
1. How thermal expansion, high specific surface area, low pressure drop, small thermal resistance, good thermal conductivity, thermal shock resistance, high mechanical strength.
2. Hole thin wall, large capacity, large heat storage capacity,small occupied space.
3. Hole wall is smooth, back pressure is small.
4. Long service life, not easy to slag corrosion, corrosion and high temperature deformation of clay.
5. Product quality specifications, installation, regenerator, the dislocation between emissions neat little.
Faqs:
1. Unit-price:12500 yuan/square, excluding freight tax.
2. Mold:
1). Length 150* width 150* height 300 mm, 40*40 hole;
2). The long 150* width 150* height 300 mm, 43*43 hole;
3). The long 150* width 150* height 300 mm, 50*50 hole;
4). Diameter 100 * H 150 mm , 27 mesh ;
5). Diameter 148 * H 100 mm , 26 mesh ;
3. Packing: wooden cases
4. Annual production capacity of 5000 cubic meters / year,delivery time 30-60 days.
5. Payment: 100% advance after sign the contract by T/T or within 20 days by see B/L.
6. Delivery: within 15-20 days for delivery after receipt of payment.
7. Note: Our company is hot investment in the country, welcomed to inquire and discuss cooperation. Contact Telephone: 0779-2228072 , Ms. Liu .
The specifications of heat accumulation substrate |
| Nun | 1 | 2 | 3 | 4 | 5 |
| L*W*H | 150x150x300 | 150x150x300 | 150x150x300 | 150x150x300 | 150x150x300 |
| Channels | 25x25 holes | 34x34 holes | 40x40 holes | 43x43 holes | 50x50 holes |
| Width of Channels | 4.9 | 3.9 | 3.0 | 3.0 | 2.26 |
| Wall thickness | 1.0 | 0.45 | 0.7 | 0.5 | 0.7/0.55 |
| Specific Surface Area (m²/m²) | 540 | 805 | 825 | 1000 | 1005 |
| Void ratio(%) | 67 | 80 | 65 | 72 | 57/64 |
| Physics performance |
| Performance | unit | Alumina porcelain | Mullite | Dense cordierite | Cordierfe Porous | Stoneware |
| Density | g/cm² | 2.7 | 2.1 | 2.47 | 1.9 | 2.3-2.4 |
| The coefficient of thermal expansion 20-1000 ºC | 10 -6 /k -1 | 5-7 | 6.20 | 1.3-1.4 | 2.5-5 | 4-7 |
| Heat capacity 20-1000 ºC | J/(kg@K) | 800-900 | 850-1050 | 800-1200 | 750-800 | 840-920 |
| heat shock resistance | k | 150 | 350 | 250 | 300 | 250 |
| The highest using temperature | ºC | 1300 | 1600 | 1300 | 1300 | 1200 |
Guangxi Huihuang Langjie Environmental Protection Technology Co., Ltd. is located in NO. 36 XiZang Road, Beihai City, Guangxi, China. It's a high-tech enterprise, which integrates scientific reserch, manufacturing of (industry) exhaust gas treatment of automobile, motorcycle and VOC system, and both import and export trade. Our factory is a demonstration production base which mainly produce high-tech environmental product. Our main products: Three-way catalytic converter of engines, Catalytic muffler, Motorcycle catalytic converter, Ceramic honeycomb substrate used In Vehicle/Industrial, Diesel particulate filters(only deal with diesel particulate), SCR DeNOX catalyst, Metal honeycomb carrier, DOC and kinds of catalyst substrate, ceramic balls, metal tower packing series, plastic tower packing series.
Our products lays a good foundation for implement our company's globle strategy and forms gradually to be the best competitive company in diversified industry chain. Our management system has been certified by the ISO9001-2000 system certification body of SGS on May, 2004 and has been carried out fully thereafter. At present, we are under training of TS16949, which will be carried out fully six months later.
In the principle of "Credit standing is the only survival condition for an enterprise" and "To provide high-quality products worldwide with perfect serving system and attitude", we have been dedicating ourselves to the upgrade of our enterprise brand and the improvement of our technology and competitive power. For realization of powerful cooperation, we have strengthened cooperation with universities and professional scientific research institutions in the field of technology. Being a partner of Nanchang University on scientific research, we have founded Beihai Research Base of Modernized Chemical Application with Nanchang University and have the tentative plan of establishment of practising base of Modernized Chemical Application for postgraduates. Our CNG catalytic converter through the European (Euro V ) emission standard on 2004 year.
With advanced technology, we acquire 28 patents are applied, includes 7 invention patent, 13 utility model patent certificate and 8 design patent certificate. Owing to attaching importance to stengthen the protection work of intellectual property rights that our company has been evaluated as a patent trial enterprise by the intellectual property rights bureau of Guangxi Autonomous Region in July, 2007. At the same time, the LPG and CNG three-way catalytic converters have successfully passed Europe Emission Standard IV, and CDPF have met testing standard of Japan (Europe Emission Standard V). Our products are very competitive because they are high on the list of world advanced level among the similar products of the same industry. We adhere to the "people-oriented, only talent can create miracles" talent strategy, Comfortable working environment, Perfect integration west and east enterprise management system and Provides a platform for talent.
