| Prod Model: |
ZX1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Delivery Time: |
20 Days |
| Inner Chase: |
1600×1250mm |
| Weight: |
12000kg |
| Imprinting Type: |
Rotary Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paper Packaging Materials |
Product Description

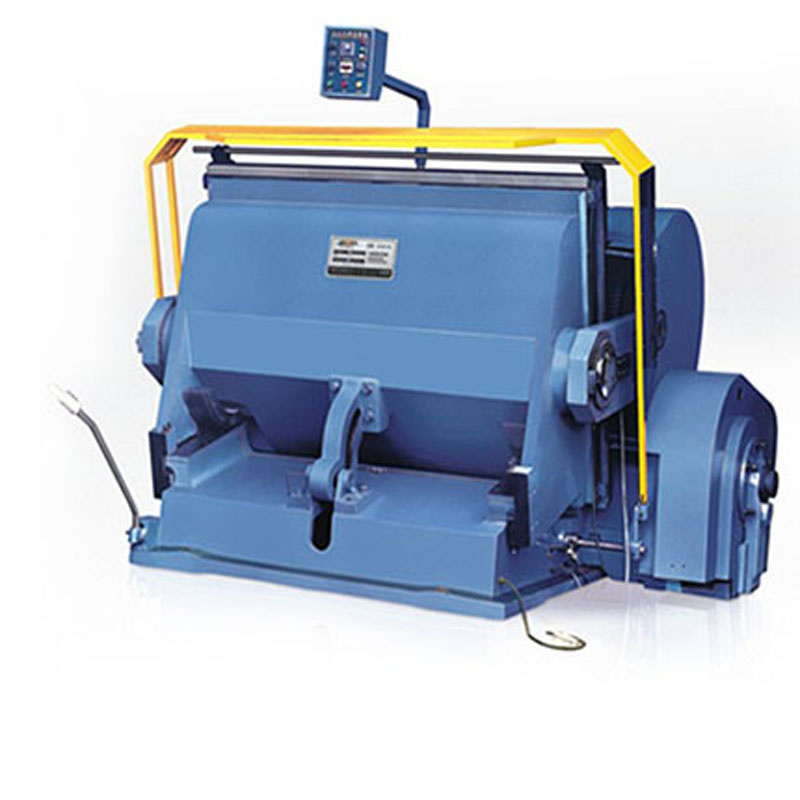

ZX1600/ZX1800/ZX2000 Creasing and cutting machine
Detailed Product Description: ZX1600/ZX1800/ZX2000 Creasing and cutting machine
Usage:
ZX1600/ZX1800/ZX2000 Creasing and cutting machine is a special equipment for creasing and cutting ordinary cardboard,corrugated board,plastic and leather ingeneral,applicable to printing packaging decoration and plastic industries.
The machine is characterized by compact structure, fine workmanship,big pressure,high precision and easy and reliable operation,etc.
Features:
1. Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Adopt pneumatic clutch structure,sensitiveness especially reliably
5. With functions of single,continuous and opening dwell operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
8. Can equip inner and outer movable frame and centrailzed lubrication device.
Parameters:
| Model | Inner Chase | Max.Rule Length | Speed | Motor
Power | Weight | Dimensions(mm) |
| ZX1600 | 1600×1250mm | <50m | 13±2
Strokes/Min | 11kw-6H | 12000KG | 2780×2300×2400 |
| ZX1800 | 1800×1300mm | <60m | 13±2
Strokes/Min | 11kw-6H | 14000KG | 2980×2300×2500 |
| ZX2000 | 2000×1400mm | <65m | 13±2
Strokes/Min | 15kw-6H | 16000KG | 3180×2400×2580 |
