| Prod Model: |
ZX-2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Delivery Time: |
20 Days |
| Inner Chase: |
2500*1500mm |
| Machine Weight: |
20000kg |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Steel Plate |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paper Packaging Materials |
Product Description

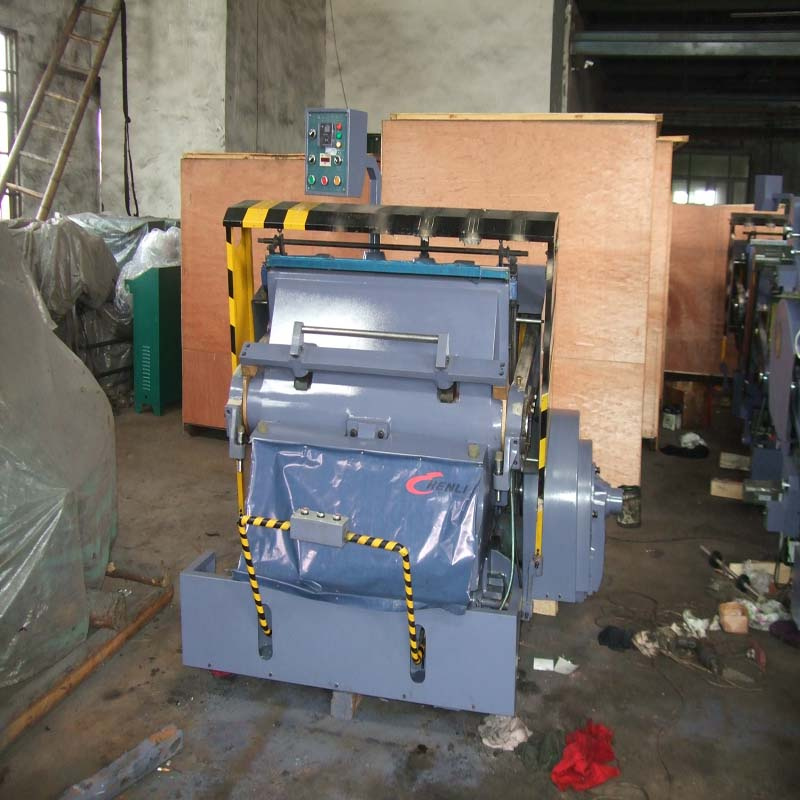

Creasing and Die Cutting Machine / die cutter
Specifications
Creasing and Cutting Machine is special equipment for creasing and cutting ordinary cardboard corrugated board.
Parameters :
| Model | Inner Chase | Max. Rule Length | Speed | Motor Power | Machine Weight | Overall Dimensions |
| ZX2500 | 2500×1500mm | <80m | 11±3 Strokes/Min | 22kw-6H | 20000KG | 3680×2500×2580mm |
| ZX2200 | 2200×1400mm | <70m | 13 ±2Strokes/Min | 15kw-6H | 18000KG | 3380×2400×2580mm |
| ZX2000 | 2000×1400mm | <65m | 13±2Strokes/Min | 15kw-6H | 16000KG | 3180×2400×2580mm |
| ZX1800 | 1800×1300mm | <60m | 13±2Strokes/Min | 11kw-6H | 14000KG | 2980×2300×2500mm |
| ZX1600 | 1600×1250mm | <50m | 13±2Strokes/Min | 11kw-6H | 12000KG | 2780×2300×2400mm |
| ZX1500 | 1500×1040mm | <48m | 14±2Strokes/Min | 5.5kw-6H | 7500KG | 2550×2100×2000mm |
| ZX1400 | 1400×1000mm | <45m | 15±2Strokes/Min | 5.5kw-6H | 6800KG | 2450×2100×2000mm |
| ZX1300 | 1300×920mm | <40m | 16±2Strokes/Min | 5.5kw-6H | 6200KG | 2350×2100×1950mm |
| ZX1200 | 1200×820mm | <35m | 20±2Strokes/Min | 4kw-6H | 5000KG | 2050×2150×1900mm |
| ZX1100E | 1100×800mm | <37m | 20±2Strokes/Min | 4kw-6H | 4600KG | 1950×2150×1850mm |
| ZX1100 | 1100×800mm | <32m | 20±2Strokes/Min | 4kw-6H | 4500KG | 1950×2150×1850mm |
| ZX1040 | 1040×720mm | <30m | 20±2Strokes/Min | 4kw-6H | 4000KG | 1760×2000×1750mm |
| ZX1040A | 1040×720mm | <35m | 22±3Strokes/Min | 5.5KW-4H | 4500KG | 2260×1710×1900mm |
| ZX203A | 930×670mm | <30m | 25±3Strokes/Min | 3kw-6H | 3500KG | 1800×1880×1850mm |
| ZX203E | 930×670mm | <30m | 23±2Strokes/Min | 4KW-6H | 3500KG | 1750×1980×1700mm |
| ZX203C | 930×670mm | <25m | 23±2Strokes/Min | 4KW-4H | 3000KG | 1650×1880×1700mm |
| ZX750 | 750×520mm | <15m | 25±2Strokes/Min | 2.2KW-6KW | 2000KG | 1450×1600×1450mm |
Feature:
Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board, plastic and leather in general, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
8. Can equip inner and outer movable frame and centralized lubrication device
