| Prod Model: |
ZX750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Delivery Time: |
20 Days |
| Inner Chase: |
750×520mm |
| Weight: |
2000kg |
| Imprinting Type: |
Rotary Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Application: |
Paper Packaging Materials |
Product Description

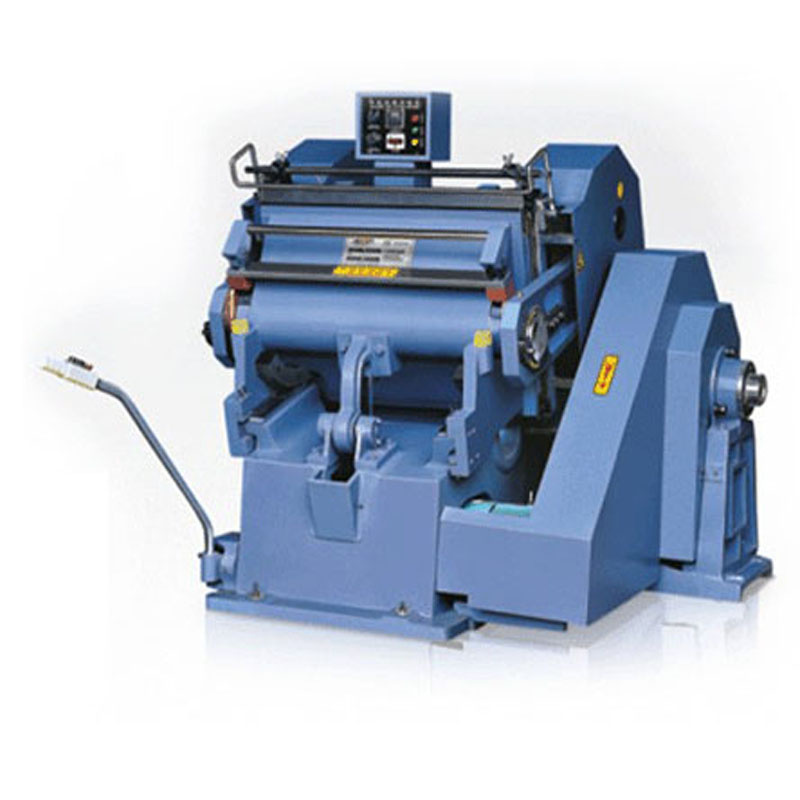

ZX750 Creasing and Die cutting machine
Detailed Product Description: ZX750 Creasing and Die cutting machine
Description:
1. ZX750 Creasing and Die cutting machine is a special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather in general, applicable to printing packaging decoration and plastic industries.
2. The machine is characterized by compact structure, fine workmanship, large pressure, high precision and easy and reliable operation, etc.
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single,continuous and opening dwell operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
8. Can equip inner and outer movable frame and centralized lubrication device.
Parameters:
| Model | Inner
Chase | Max.Rule
Length | Speed | Motor Power | Weight | Dimensions(mm) |
| ZX750 | 750×520mm | <15m | 25±2
Strokes/Min | 2.2KW-6KW | 2000KG | 1450×1600×1450 |
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Established in early 21st century, Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a professional company integrated with scientific research, designing, manufacturing and service in post-press equipment with rich experience. Equipped with strong technical support, the company has been earned trust from our customers both at home and abroad with high quality and comfortable after-sales service. The product is in great demand throughout the country, exported to Southeast Asia, the Middle East, America, Australia, and has acquired favorable commend by users. Our main products currently include: Album making machine, laminating machine, glue machine, glue binding machine, paper cutting machine and UV coating machine.
Over the years, "quality of survival, service and development" is the aim of our struggle. The company will continue to the advanced management idea, the spirit of excellence in research and development, scientific production technology and strong technical support and continuously improve the grade and quality. First-class products and service to our new and old customers hand in hand with the new and old customers to create a better future!
