| Prod Model: |
ZX203C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Delivery Time: |
20 Days |
| Inner Chase: |
2500×1500mm |
| Motor Power: |
22kw-6h |
| Imprinting Type: |
Rotary Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paper Packaging Materials |
Product Description

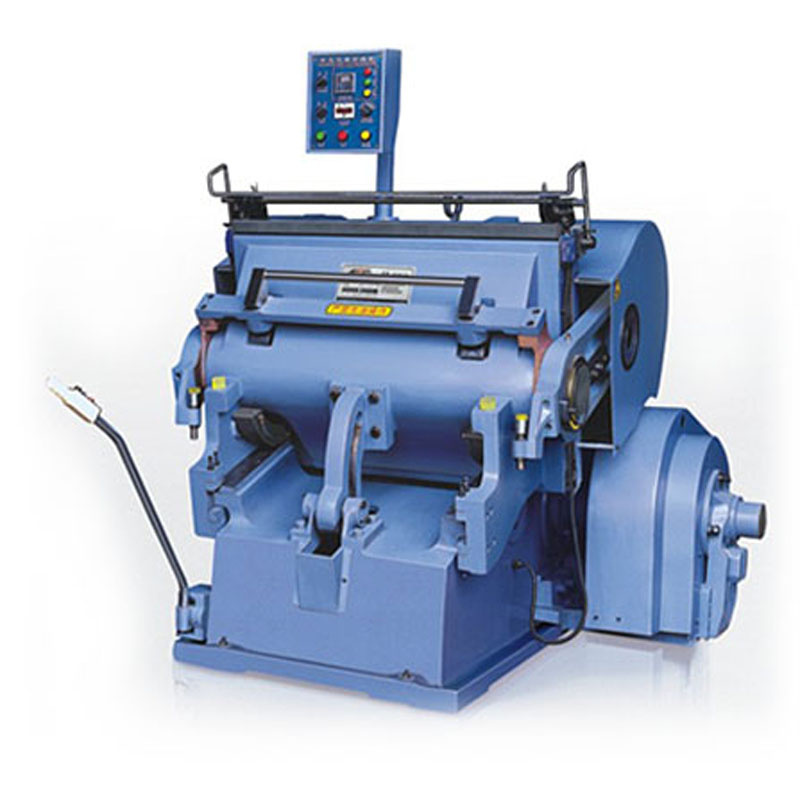

Creasing and Cutting Machine
Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather in general, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
FEATURES
1Sliding bearings are made of high quality alloy cooper, thus to get effect of anti friction and shake reducing.
2Flywheel is with big moment of force and large pressure.
3High strength due to one piece casting by using top-ranking material for machine body.
4Single plate electromagnetic clutch is sensitive and reliable.
5With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7Safety system is reliable.
8Can equip inner and outer movable frame and centralized lubrication device
| Model | Inner Chase | Max.Rule Length | Speed | Motor Power | Machine Weight | Overall Dimensions |
| ML2500 | 2500×1500mm | <80m | 11±3 Strokes/Min | 22kw-6H | 20000KG | 3680×2500×2580mm |
| ML2200 | 2200×1400mm | <70m | 13 ±2Strokes/Min | 15kw-6H | 18000KG | 3380×2400×2580mm |
| ML2000 | 2000×1400mm | <65m | 13±2Strokes/Min | 15kw-6H | 16000KG | 3180×2400×2580mm |
| ML1800 | 1800×1300mm | <60m | 13±2Strokes/Min | 11kw-6H | 14000KG | 2980×2300×2500mm |
| ML1600 | 1600×1250mm | <50m | 13±2Strokes/Min | 11kw-6H | 12000KG | 2780×2300×2400mm |
| ML1500 | 1500×1040mm | <48m | 14±2Strokes/Min | 5.5kw-6H | 7500KG | 2550×2100×2000mm |
| ML1400 | 1400×1000mm | <45m | 15±2Strokes/Min | 5.5kw-6H | 6800KG | 2450×2100×2000mm |
| ML1300 | 1300×920mm | <40m | 16±2Strokes/Min | 5.5kw-6H | 6200KG | 2350×2100×1950mm |
| ML1200 | 1200×820mm | <35m | 20±2Strokes/Min | 4kw-6H | 5000KG | 2050×2150×1900mm |
| ML1100E | 1100×800mm | <37m | 20±2Strokes/Min | 4kw-6H | 4600KG | 1950×2150×1850mm |
| ML1100 | 1100×800mm | <32m | 20±2Strokes/Min | 4kw-6H | 4500KG | 1950×2150×1850mm |
| ML1040 | 1040×720mm | <30m | 20±2Strokes/Min | 4kw-6H | 4000KG | 1760×2000×1750mm |
| ML1040A | 1040×720mm | <35m | 22±3Strokes/Min | 5.5KW-4H | 4500KG | 2260×1710×1900mm |
| PYQ203A | 930×670mm | <30m | 25±3Strokes/Min | 3kw-6H | 3500KG | 1800×1880×1850mm |
| PYQ203E | 930×670mm | <30m | 23±2Strokes/Min | 4KW-6H | 3500KG | 1750×1980×1700mm |
| PYQ203C | 930×670mm | <25m | 23±2Strokes/Min | 4KW-4H | 3000KG | 1650×1880×1700mm |
| ML750 | 750×520mm | <15m | 25±2Strokes/Min | 2.2KW-6KW | 2000KG | 1450×1600×1450mm |
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Established in early 21st century, Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a professional company integrated with scientific research, designing, manufacturing and service in post-press equipment with rich experience. Equipped with strong technical support, the company has been earned trust from our customers both at home and abroad with high quality and comfortable after-sales service. The product is in great demand throughout the country, exported to Southeast Asia, the Middle East, America, Australia, and has acquired favorable commend by users. Our main products currently include: Album making machine, laminating machine, glue machine, glue binding machine, paper cutting machine and UV coating machine.
Over the years, "quality of survival, service and development" is the aim of our struggle. The company will continue to the advanced management idea, the spirit of excellence in research and development, scientific production technology and strong technical support and continuously improve the grade and quality. First-class products and service to our new and old customers hand in hand with the new and old customers to create a better future!
