| Prod Model: |
CF-109 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS Ce |
| Supply Market: |
Global |
| Service: |
OEM and ODM |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Delivery Time: |
30 Days After Receiving The Payment |
| Tolerance: |
CT7- CT9 |
| Quality Control: |
Professional QC and Test Equipment |
| Heat Treatment: |
Normalizing ,Quenching ,Anealling ,Tempering |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Cast Steel |
| Surface Preparation: |
Sand Blast |
Product Description
Productive Technology: Precision Investment Casting (Silcon Sol Process)
Material: Carbon steel:Stainless steel; Alloy steel.
Productive Process: Wax Mould-Shell Making-Dewaxing-Smelting&Casting-Shell Off-Blasting-Cutting&Polishing-Acid Washing-CNC Precised Machining
Casting facility: wax injector, electric furnace,heat treatment furnace,cutting head machine, shot-blasting machine, sand-blasting machine.
Machining facility: CNC,NC lathe,ordinary machine tools,linear cutting machine, NC milling machine, polishing machine.
Heat treatment:Normalizing/Quenching/Tempering.
Test facility:spectrometer, tensile test machine,impact tester, hardness test machine,CMM,PT.

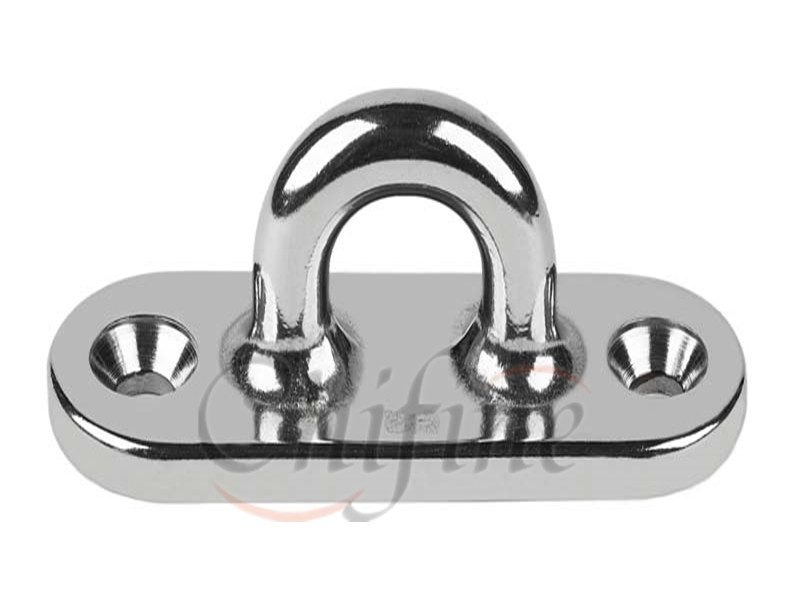

Stainless Steel Investment Casting & Precision Casting:
1. Near 20 years exporting experience.
2. Max Weight: About 50tons with precision machining
3. Material: ANSI304 ANSI316 ANSI316L
4. Mould Material: Wood FRP Metal Ludox
5. UT MT PT treatment
6. Process: Sand casting, Investment casting, Precision casting, Centrifugal casting
7. Electric furnace & CNC equipments
8. Quick response once we received your inquiry.
9. Professional management team
10. Skilled labour for machining and testing.
11. Professional foreign trade personnel
12. Strict quality inspection.
13. Delivery on time
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
Company Profile
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
| Process | Investment Casting,Silicon sol casting,Die Casting,Sand Casting,Gravity Casting,etc |
| Material | Stainless Steel,Carbon Steel,Alloy Steel,Aluminum,Copper,Ductile Iron,Grey iron,etc |
| Material Grade | GB, ASTM , AISI , DIN , BS, JIS, NF |
| Weight | 0.01 kg~150kg |
| Accuracy | Class CT4~CT11 |
| Surface Roughness | UpTo Ra1.6~Ra6.3 |
| Applied Software | Proe ,Igs , Stp , Catia,Auto CAD , PDF, Jpeg, Jpg, Png,etc |
| Production Capacity | More Than 1000MT Per Month |
| Heat Treatment | Anneal,Quenching,Normalizing,Carburizing,Polishing,Plating, Painting,etc |
| Machining Equipment | CNC Center , CNC Machines, Turning Machines,Drilling Machines , Milling Machines, Grinding Machines,etc |
| Measuring Tool | CMM , Projector, Vernier Caliper, Depth Caliper, Micrometer,Pin Gauge, Thread Gauge , Height Gauge,etc |
| QC System | 100% Inspection Before Shipment |
| Application | Auto Parts, Agricultural Machinery Parts, Construction Machinery Parts,
Marine Hardwares,Valve Parts,Led Light Parts,Railway Parts,Home Hadrwares,
Electronic Parts,Military Parts,etc |
| Lead Time | Depends On Order Quantity.Normally 15~40 Days. |
| Certification | ISO9001:2008 |
| Payment Terms | T/T , L/C, D/P , D/A,etc |
| Shipment Terms | FOB , CFR, CIF,EXW,DDP,DDU,FCA,etc |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
