| Prod Model: |
IS 80-65-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50mm ~ 200mm |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Low Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Pump Casing Combined: |
Horizontal Pump |
Product Description

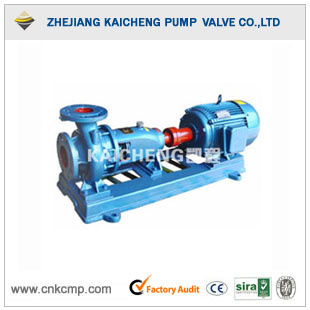

IS Agricultural Irrigation Water Pump
Capacity: 8-460m3/h
Head: 5-125m
Speed: 1450-2900r/min
Material: Cast Iron
General:
IS single stage single suction centrifugal clean water pump
1. Application: Industry and city draining and the farmland irrigation.
2. Media: Clean water or similar to clean water liquid with the
3. Max temperature is 80° C
4. Max inlet pressure is 0.6MPa.
Type description:
IS100-65-200A
IS-single stage single suction centrifugal clean water pump
100-the inlet diameter(mm)
65-the outlet diameter(mm)
200-the nominal name of the impeller(mm)
A-A, B, C refer to the first, the second, the third trim after the impeller respectively.
Structure type:
The IS single stage single suction centrifugal clean water pump is horizontal installation, the horizontal Axial inlet and upward radial outlet. The structure of the pump is cantilever.
It can take out the rotors parts without disassembling the inlet and outlet pipes when repairing.
The pump is connected by the common flexible coupling or length flexible coupling with motor.
The shaft sealing of the pump is soft packing sealing.
The pump is the single-row radial ball bearing, dilute oil lubricate.
The rotating direction:
Viewed from motor, the rotating direction of the pump is clockwise.
The main parts materials:
The materials of the flow parts are common gray casting iron.
Supply range:
Supply full set pump, motor, common foundation, coupling and the bottom valve, pressure back valve, sluice.
Type
|
Capacity |
Head |
Speed |
Motor power | mm
Size |
m3/h
| m
| r/min
| KW
|
Inlet |
Outlet |
IS50-32-125
| 12.5
| 20
| 2900
| 2.2
| 50
| 32
|
6.3
| 5
| 1450
| 0.55
| 50
| 32
|
IS50-32-160
| 12.5
| 32
| 2900
| 3
| 50
| 32
|
6.3
| 8
| 1450
| 0.55
| 50
| 32
|
IS50-32-200
| 12.5
| 50
| 2900
| 0.5
| 50
| 32
|
6.3
| 12.5
| 1450
| 0.75
| 50
| 32
|
IS50-32-250
| 12.5
| 80
| 2900
| 11
| 50
| 32
|
6.3
| 20
| 1450
| 1.5
| 50
| 32
|
IS65-50-125
| 25
| 20
| 2900
| 3
| 65
| 50
|
12.5
| 5
| 1450
| 0.55
| 65
| 50
|
IS65-50-160
| 25
| 32
| 2900
| 5.5
| 65
| 50
|
12.5
| 8
| 1450
| 0.75
| 65
| 50
|
IS65-40-200
| 25
| 50
| 2900
| 7.5
| 65
| 40
|
12.5
| 12.5
| 1450
| 1.1
| 65
| 40
|
IS65-40-250
| 25
| 80
| 2900
| 15
| 65
| 40
|
12.5
| 20
| 1450
| 2.2
| 65
| 40
|
IS65-40-315
| 25
| 125
| 2900
| 30
| 65
| 40
|
12.5
| 32
| 1450
| 4
| 65
| 40
|
IS80-65-125
| 50
| 20
| 2900
| 5.5
| 80
| 65
|
25
| 5
| 1450
| 0.75
| 80
| 65
|
IS80-65-160
| 50
| 32
| 2900
| 7.5
| 80
| 65
|
25
| 8
| 1450
| 1.5
| 80
| 65
|
IS80-50-200
| 50
| 50
| 2900
| 15
| 80
| 50
|
25
| 12.5
| 1450
| 2.2
| 80
| 50
|
IS80-50-250
| 50
| 80
| 2900
| 22
| 80
| 50
|
25
| 20
| 1450
| 3
| 80
| 50
|
IS80-50-315
| 50
| 125
| 2900
| 37
| 80
| 50
|
25
| 32
| 1450
| 5.5
| 80
| 50
|
IS100-80-125
| 100
| 20
| 2900
| 11
| 100
| 80
|
50
| 5
| 1450
| 1.5
| 100
| 80
|
IS100-80-160
| 100
| 32
| 2900
| 15
| 100
| 80
|
50
| 8
| 1450
| 2.2
| 100
| 80
|
IS100-65-200
| 100
| 50
| 2900
| 22
| 100
| 65
|
50
| 12.5
| 1450
| 4
| 100
| 65
|
IS100-65-250
| 100
| 80
| 2900
| 37
| 100
| 65
|
50
| 20
| 1450
| 5.5
| 100
| 65
|
IS100-65-315
| 100
| 125
| 2900
| 75
| 100
| 65
|
50
| 32
| 1450
| 11
| 100
| 65
|
IS125-100-200
| 200
| 50
| 2900
| 45
| 125
| 100
|
100
| 12.5
| 1450
| 7.5
| 125
| 100
|
IS125-100-250
| 200
| 80
| 2900
| 75
| 125
| 100
|
100
| 20
| 1450
| 11
| 125
| 100
|
IS125-100-315
| 200
| 125
| 2900
| 110
| 125
| 100
|
100
| 32
| 1450
| 15
| 125
| 100
|
IS125-100-400
| 100
| 50
| 1450
| 30
| 125
| 100
|
IS150-125-250
| 200
| 20
| 1450
| 18.5
| 150
| 125
|
IS150-125-315
| 200
| 32
| 1450
| 30
| 150
| 125
|
IS150-125-400
| 200
| 50
| 1450
| 45
| 150
| 125
|
IS200-150-250
| 400
| 20
| 1450
| 37
| 200
| 150
|
IS200-150-315
| 400
| 32
| 1450
| 55
| 200
| 150
|
IS200-150-400
| 400
| 50
| 1450
| 90
| 200
| 150
|
