| Prod Model: |
YCL-630A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Diameter Of Mould: |
12-14 Inch |
| Thickness Of Mould: |
0-120mm |
| Pressure Adjustment: |
0-7kg |
| Voltage/Maximum Powe: |
380V/16kw |
| Centrifugation Rotation Number: |
50-1400rpm |
Product Description
Attributes:
Model | YCL-630A |
Maximum diameter of mould | 12-14 inch |
Thickness of mould | 0-120mm |
Pressure adjustment | 0-7kg |
Voltage/maximum power | 380V/16KW |
Centrifugation rotation number | 50-1400rpm |
Features:

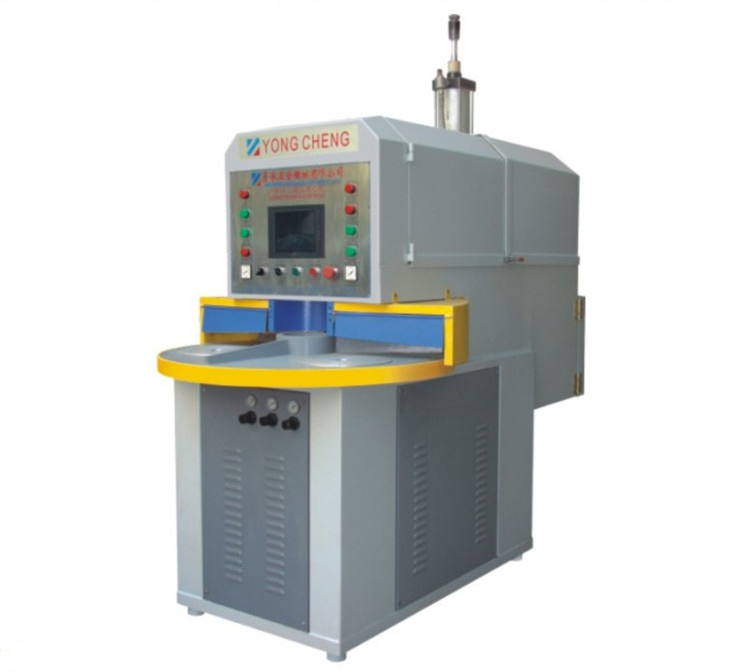

1.Full-automatic centrifugal casting machine with three mould-heads integrates melting furnace and centrifuge.
2.The built-in cooling fan can accelerate the heat elimination of gel mould.
3.It can detect whether the gel mould has entered working area automatically.
4.The independent pneumatic automatic adjusting and converting system can ensure that the mould can operate stably.
5.It adopts fullautomatic control, and saves production cost maximally, time and efforts, improving production efficiency, injecting materials automatically, accurately controlling weight of each suit of products and reducing the consumption of materials.
6.It adopts tailor-made materials feeding pipe to ensure the temperature of the materials in the process of materials feeding, reduce the materials oxidation effectively, protect alloy oxidation layer from entering into the mould, improve the lightness of the product, make centrifugal force stable and increase the density of the product.
7.It can conduct stepless speed adjustment within the range of 50-1400rpm, taking 50rpm as a unit.
8.It can keep very accurate and stable production quality in rapid production.
9.It is especially applicable for continuous operation for a long time in each day. With small floor area, it can decrease operation quantity of workers, and lower the electric power consumption, saving resources effectively.
Function:
It is used for centrifugal casting of ornaments and craftworks which are made of zinc alloy, terne alloy and zinc-magnesium alloy. It changes manual operation into automatic operation, and changes centrifugal casting molding into being from automatic compression casting and materials feeding to centrifugal molding. Under normal condition, it can finish about 240 mould times in one hour.
