| Prod Model: |
JSW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: |
Plastic |
| Impeller: |
Stainless Steel/Brass/Techno-Polymer(P.P.O) |
| Mechanical Seal: |
Carbon/Ceramic/Stainless Steel |
| Motor Housing: |
Aluminum |
| Shaft: |
Stainless Steel |
| Diffuser: |
Techno-Polymer(P.P.O) |
| Certification: |
CE ISO9001:2008 |
| Colour: |
as Your Request |
| Package: |
Export-Stand Cartoon |
| Working Fluid: |
Water |
Product Description

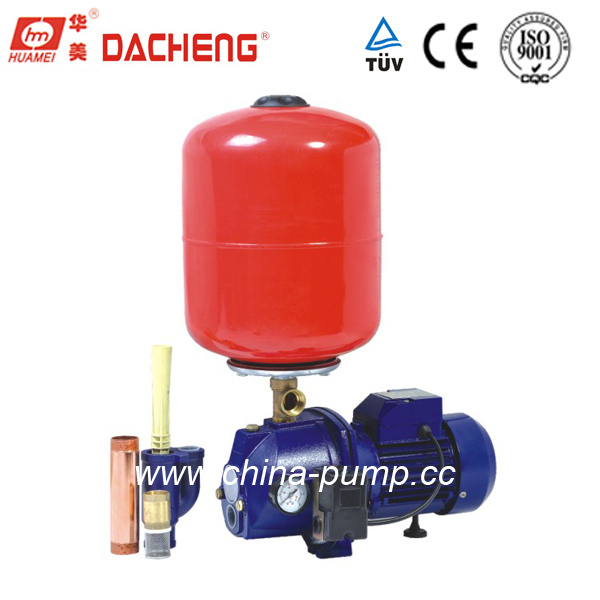

JETPl Series Self-priming Jet Pumps
Consist of a single impeller, centrifugal pump and a jet pipe with a nozzle.
High efficiency and excellent suction ability.
Suitable for water supplying in domestic installations, small-scale agriculture watering, home drinking water supplying and garden irrigating.
OUR ADVANTAGE
1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skill
CONSTRUCT
Pump
Pump body: Plastic
Impeller: Brass/P. P. )/Stainless-steel
Mechanical seal: Carbon/ceramic/Stainless Steel
Diffuser: P. P. O
Motor
Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)
OPERATING CONDITION
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty
TECHNICAL DATA(220-240V/50Hz)
|
Model |
Single-phase Motor |
N=2850r/min |
Inch |
PACKAGE DIMENSION&G.W |
PACKING QTY
20’ CONT |
|
Input max |
Output power |
Current |
Q.max |
H.max |
Suct.max |
|
L |
W |
H |
Kg |
|
KW |
KW |
HP |
A |
L/min |
m |
m |
|
JETPL-60 |
0.65 |
0.46 |
0.6 |
3.5 |
42 |
40 |
9 |
1’’*1’’ |
410 |
220 |
220 |
9.0 |
1420PCS |
|
JETPL-80 |
0.88 |
0.60 |
0.80 |
4.20 |
46 |
45 |
1’’*1’’ |
410 |
220 |
220 |
10.0 |
1420PCS |
|
JETPL-100 |
1.10 |
0.75 |
1.00 |
5.20 |
52 |
50 |
1’’*1’’ |
410 |
220 |
220 |
11.0 |
1420PCS |
