| Prod Model: |
JYG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Smooth: |
Wear Resistant |
| Flexible: |
Smooth |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
Product Description

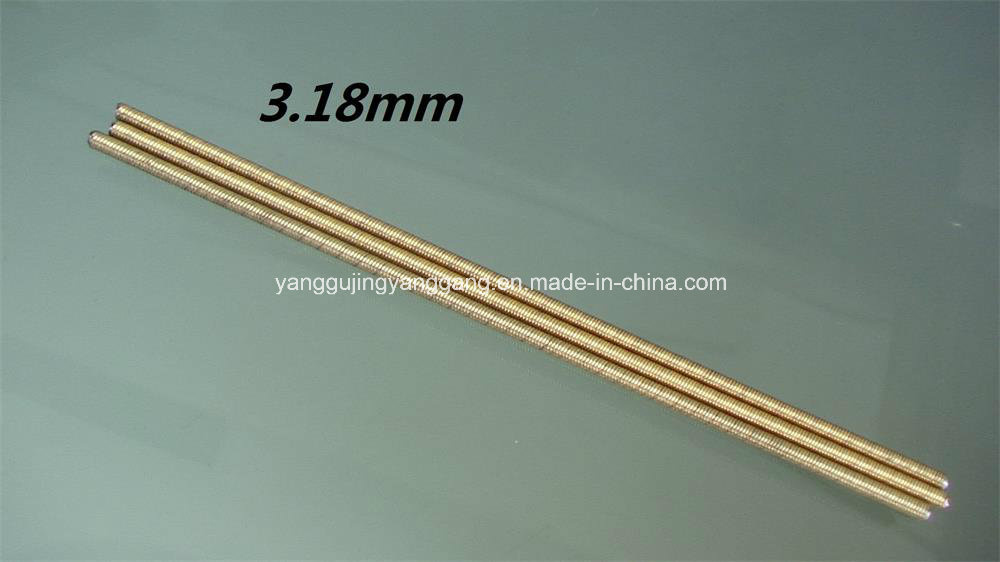

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
Diameter (mm)
| Tolerance (mm)
| Number of Layers
| Loading Moment
(N @ m)
(Sample 500mm Long)
| Weight
(kg/ 100m)
|
2.0
| +0.02
-0.02
| 3/5
| 0.8
| 1.8
|
2.5
| 3/5
| 1.0
| 2.8
|
3.2
| 3/5
| 1.3
| 4.6
|
3.8
| 3/5
| 1.5
| 6.5
|
5.0
| +0.00
-0.05
| 3/4/5
| 1.8
| 11.3
|
6.0
| 3/4/5
| 2.4
| 16.2
|
6.5
| 4/5/7
| 2.9
| 18.7
|
8.0
|
| 4/5/6/7
| 7.5
| 28.8
|
10
| 4/5/6/7
| 22.5
| 45.5
|
12
| 4/5/6/7
| 39.0
| 66.5
|
13
| 4/5/6/7
| 50.5
| 77.5
|
16
| 4/5/6/7
| 115.0
| 114
|
18
| 4/5/6/7
| 160
| 145
|
The flexible shafts not listed in the chart can be customized
|
Yanggu Jingyanggang Construction Machinery Co., Ltd. is a comprehensive enterprise involving research, production, and trading business. We specialize in producing flexible shaft, flexible shaft C/W hoses assemby for remote control systems, flexible shaft sub-pumps, various kinds of concrete vibrator and flexible shaft drive assembly for shoulder-carried brush cutter. These products are widely applied to the Construction machinery, garden tools, automotive industry, aerospace industry, marine equipment, railway locomotives, machine tools, mold manufacturing, metal processing, medical equipment etc.
Being found in 1993, our company bears an excellent innovation ability, solid technological and advanced processing equipment. So far we have been certified to ISO9001: 2000 and CCC. Our company has the right of import and export independently. We preserve the principle of faithfulness and honesty, innovation and development, excellence and precision, try our best to meet all kinds of your demands. Our products are popular in Europe, America, Southeastern Asia, Middle East, Africa and so on. We have earned good reputation at home and abroad by our good quality product as well as our good quality service. Our company is located in Yanggu county, Shandong province. This is a famous place where Wu' Song(a warrior) beats a tiger barehanded to save people a thousand years ago. Yanggu abuts against Beijing-Kowloon Line, Ji' Nan-Han dan Line, Ji' Nan-Guan tao Highway etc, so the transportation is convenient.
To satisfy more and more domestic and international customer' S need, we are engaging in devising new products, making great effort to raise the market quota and product competition. We look forward to your presence and lets create a brilliant future together.
