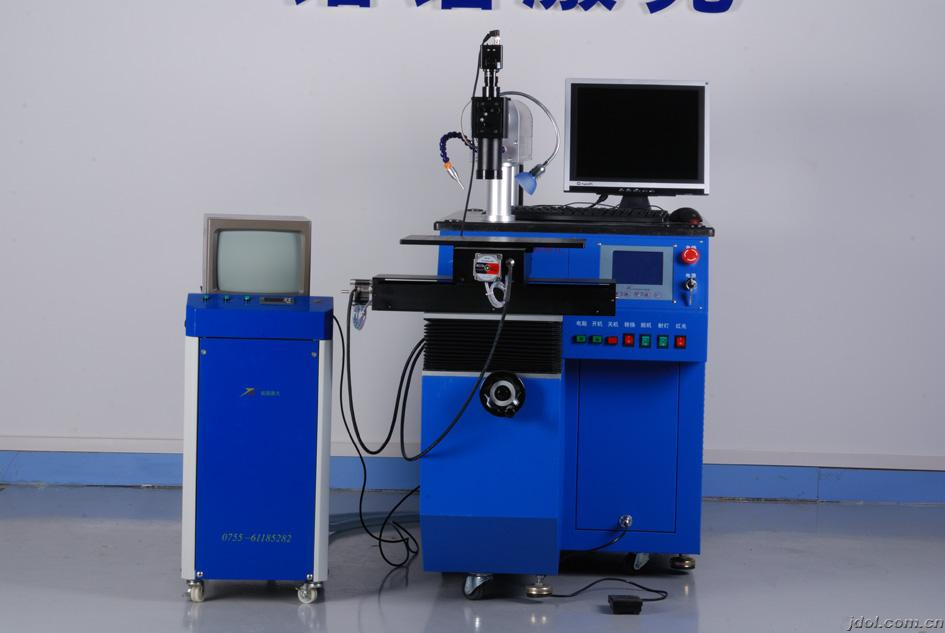

L. Mold Repair Laser Welding Machine to Repair Forging Die
| Price: |
US $ 7300-7800/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ZY-M200 /Mold repair |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Welding Machine |
| Power: |
Small Power |
| Drive Type: |
AC Servo Drive |
| Certification: |
CE |
| Laser Type: |
ND:YAG Pnise |
| Control: |
Automatic/Mold Repair |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Mold Repair |
| Size: |
L1600mm*W700mm*H1300mm |
Product Description
Laser mold repair welding machine
The working principle and characteristics:
The laser model repair welding machine welds specialized wire to the damaged part by high heat energy, produced instantaneous, and weld firmly with original substrate. By welding, sparking and grinding, the processed surface can turn into smooth.
Application:
Suitable for repairing cracks, chipping, mold edge, damage sealing side of precision molds. The applicable materials include stainless, tool steel, copper, aluminum, and other metal products, and can replace conventional argon welding machine. The heated area from welding is small, and the welded workpieces neither change color nor get distorted. Besides, large pores or air pockets will not happen, and the hardness can reach a Rockwell hardness of 50 to 60.
Technical parameters:
| Parameters/model |
| Laser power | 200w |
| Laser wavelength | 1064nm |
| Laser type | ND:YAG pulse |
| Light point adjustment range | 0.1-0.4mm |
| Welding depth | ≤7mm |
| Pulse frequency | 0-50Hz |
| Spot size | 0.2-4.0mm |
| Observation system | microscope |
| Shielding gas | argon |
| Wire diameter | 0.1-0.4mm |
| Output focallength | 80mm/110mm/150mm/200mm |
| Power requirements | 200V±10%/50Hz 380v±10%/50Hz |
| Cooling method | Water cooling |
Guarantee and after sale service (0:p)
Guarantee for one year excluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
Your order will be shipped within 3-5 business day after payment received.
24-hour technical support on internet or by telephone, free instructions and problem solving.
Free installation and fully test before send and free training for operators.
Please advise us the following information, then we can recommend you the most suitable model.
The exact material you want to process
The maxi. Output power you demand.
We are look forward for agency abroad.
Please feel free to contact me if you are interested in.
