| Prod Model: |
GB/T7984-2001 DIN22102, BS490, AS1332, RMA, JISK6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Condition: |
100% New |
| Deliver Time: |
2 Weeks Against The Deposit Payment |
| Rubber Grade: |
8-24MPa |
| Thickness: |
3-45mm |
| Ply: |
Multi-Plies |
| Thisnkcess Of 1 Ply: |
0.8-1.2mm |
| Brand: |
Shuangjiang |
| Belt Core Material: |
Polyester,Cotton,Nylon etc |
| OEM&ODM Service: |
Yes |
Product Description
Product introduction:

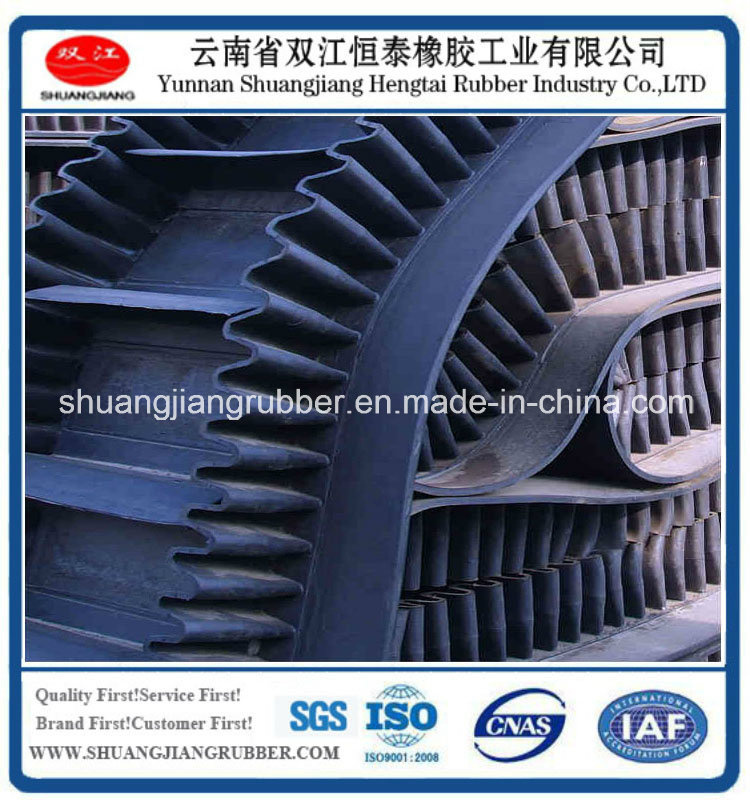

1. Wave shape raised edge conveyor belt is often used to prevent conveyed materials from falling down. It is composed with base band and raised edge.
2. There is continuous corrugated sidewall higher than belt on either side of the belt. The height of the sidewall is about 60-500 mm. It's suitable for conveying power, granular and small lump, paste and liquid materials.
Usage:
Used for conveying the material including easy scattering powder, granulated and small lump, paste and liquid material. It is widely used conveying material in port, metallurgy, mining, power, coal, casting, building materials, food, chemical fertilizer, etc
Advantages:
1, Max-inclination angle can be up to 90 degree when working
2, Big conveying ability and preventing materials from leaking
3, Easy to change the transportation angle either from level to inclination or from inclination to level
4, Compact Conveyor, short convey distance, small cover area, save space
Specification:
1, Max-inclination angle can be up to 90 degree when working
2, Big conveying ability and preventing materials from leaking
3, Easy to change the transportation angle either from level to inclination or from inclination to level
4, Compact Conveyor, short convey distance, small cover area, save space
Types:
Besides wave shape raised edge type, there are heat resistant type, cold resistant type, acid-alkaline resistant type, oil resistant type, burning resistance type, endless type, patterned type, large angle conveyor belt, tubular type, rubber sheet type, EP type, nylon (NN) type , etc.
Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
Index:
| Type | Break strength / MPa | break elongation /% | Abrasion loss / mm 3 |
| L | ≥ 14.0 | ≥ 350 | ≤ 200 |
| D | ≥ 16.0 | ≥ 350 | ≤ 160 |
| Note : L _ Ordinary type D _ Anti-abrasive type |
| Number | Test in the soaking liquid | rate of volume change
/% ≤ |
| GB / T1690 The oil number | Soak temperature / °C | Soak time / h | L | D |
| 1 | 1 | 70 ±2 | 70- | +20 | -5 |
| 2 | 2 | 70 ±2 | 70- | +50 | +5 |
| 3 | 3 | 100 ±2 | 22 ±0.25 | +50 | +5 |
| Note : D o one Oil resistant test is ok |
The company was founded in 1998, is mainly engaged in design, manufacture and service of conveyor belt products. ISO9001: 2000 international quality system certification has been adopted in June 2007. June 2010 passed the ISO9001: 2008 international quality management system certification that is upgraded. Our company is the rubber belt and pipe member of China Rubber Industry Association. Shuangjiang is the registered trademark of our company. Mainly products are general conveyor belt, heat resistant conveyor belt, acid and alkali resistant conveyor belt, oil resistant conveyor belt, ablative conveyor belt, endless belt, corrugated sidewall conveyor belt, big DIP conveyor belt, patterned conveyor belt, rubber sheet, nylon (NN)conveyor belt, polyester (EP)conveyor belt, the whole core flame resistant conveyor belt(PVC, PVG), tubular conveyor belt, cold resistant conveyor belt as well as other special belt. The company always adhere to the quality first, brand first, service first strategic goals, fully committed to the construction of a modern enterprise, the company formed a strict quality assurance system and perfect after-sales service security system.
"Integrity, win-win, innovation, effective, responsibility, love" is our team core values, we are sincerely looking forward to cooperating with all friends for a splendid future and career.
TEAM CORE VALUE
Integrity: Straight-out and mutual trust conduct
Win-win situation: Win-win and sharing breast
Innovation: With a new thinking method to achieve goals
Effective: Precisely implement reached the results
Responsibility: Taking responsibility for the outcome of behavior active
Kindheartedness: Merciful and indebted virtue
STRATEGIC GOALS
Quality first, Brand first, Service first, Industry first
COMPANY VERSION
Go for excellence
Advocate quality
To be the most trusted rubber belt enterprise
