| Prod Model: |
large-size car panel roll forming machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V 50Hz 3phases |
| Color: |
Can Paint as Your Requirement |
| Control System: |
PLC Control |
| Cutting System: |
Hydraulic Shearing |
| Type: |
Building Machine |
Product Description

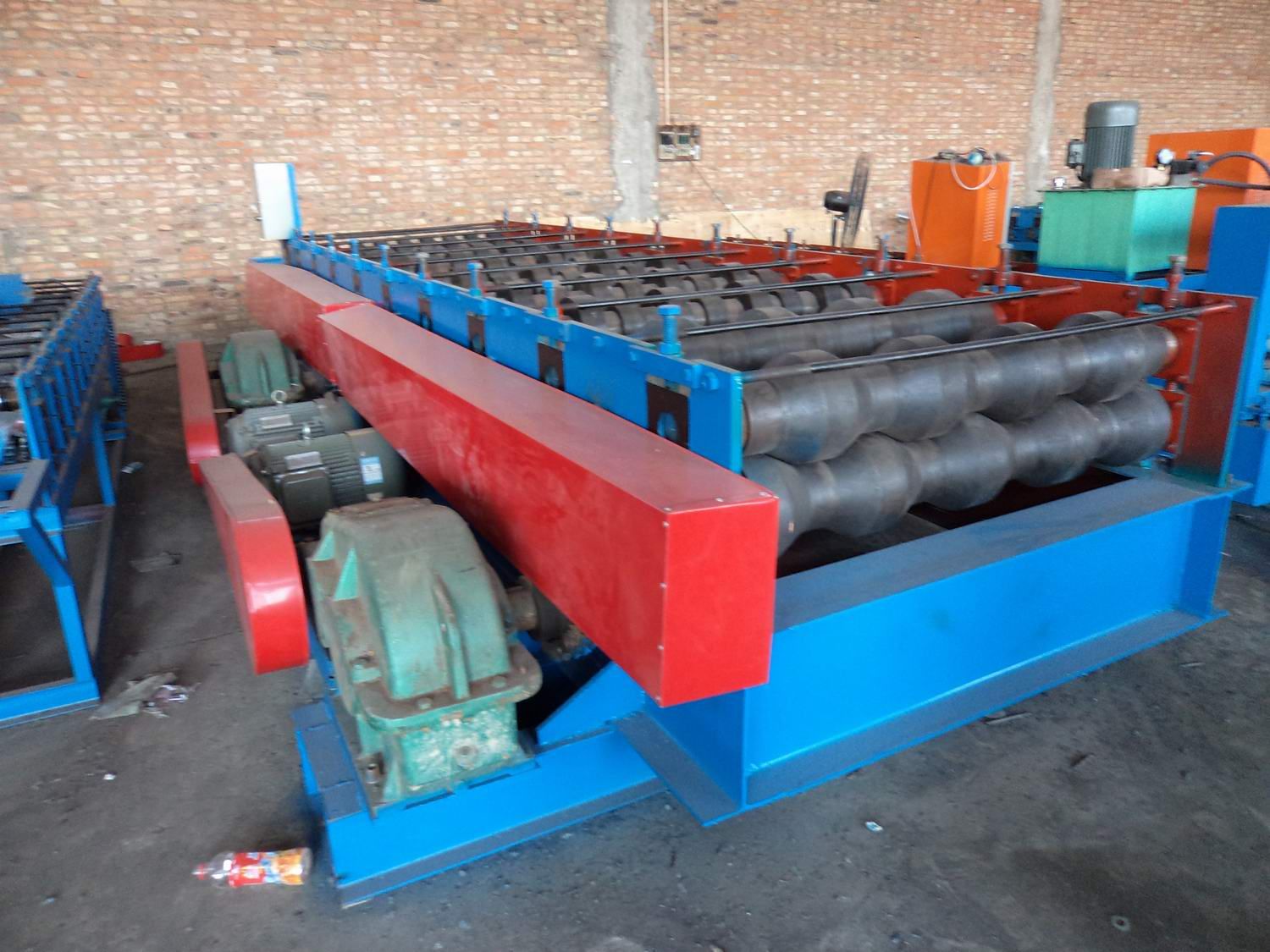

Large-size car panel roll forming machine made in China
Large-size car panel roll forming machine parameter:
Frame: 300 H steel
Thickness of middle plate: 12mm
Molding axle: Diameter 70mm 45#conditioning
Mould wheel: Material 45#forging electroplating Hard chromium
Transmission way: Chain chain thickness: 1 inch
Motor power: 5.5KW Cycloidal reducer
Row of molding: 18row
Automatic control
Pump station power: 3KW
PLC: Taiwan taida
Encoder: Wuxi"ruipu" or"xinya"
Switch: "zhengtai"
|
Material of blade |
Cr12, heat treatment 60-62Degrees Celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil: 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is EURA
The seller should provide Chinese and English language screen. |
