| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Steel Plants Equipment |
| Product: |
Large-Size Slewing Ring Bearings |
| Brand: |
Xd |
| Material: |
50mn, 42crmo |
| Type: |
5397/2460 |
| Deformation Temperature: |
Cold Forging |
| Molding Style: |
Forging |
| Molding Technics: |
Gravity Casting |
| Casting Method: |
Special Casting |
Product Description

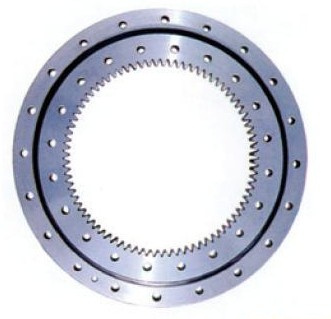

We can produce Large-size Slewing Rings for Steel Plants Equipments.
Now there are three main items for us:
1. Item No.: 5397/2460
Type: Triple -row Roller Slewing Ring without gear
Application: Electric Arc Furnace
Material: 42CrMo Alloy Steel
Main datas:
OD=2805MM ID=2460MM H=130MM
Axial clearance: 0.04-0.12mm Radial clearance: 010-0.40mm
Weight: 1020kg
2. Item No.: 221.38.4016.03
Type: Roller/Ball Combined Slewing Ring with external gear
Application: Stacker-reclaimer
Material: 42CrMo Alloy Steel
Main datas:
OD=4336MM ID=3824MM H=195MM
Axial clearance: 0.2-0.35mm Radial clearance: 025-0.48mm
Weight: 3800kg
3. Item No.: 133.40.3542
Type: Triple -row Roller Slewing Ring with internal gear
Application: Hyundai steel plant equipment
Material: 42CrMo Alloy Steel
Main datas:
OD=3768MM ID=3190MM H=219MM
Axial clearance: 0.1-0.30mm Radial clearance: 020-0.44mm
Weight: 5200kg
If you need the type Large-size Slewing Rings, please contact us for assistance.
Xuzhou Xinda Slewing Bearing Co., Ltd is a specialized manufacturer and exporter of all kinds of slewing bearing for standard and non-standard application, which is specializing in prouducing, designing and R&D.
We are located in Xuzhou-the China Construction Machinery Base, we have modern production plant, first-rate facilities, large production capacity, complete producing and testing instruments, excellent engineers and technicians, we have reached the high industry level by our comprehensive strength.
Our products mainly have six series: Single row ball structure, single row crossed roller structure, double row ball structure, three row roller structure, roller and ball combination structure, light type profile structure. These series comply with China Construction Standard JG/T66-1999, JG/T67-1999, JG/T68-1999 and Machinery Industry Standard JB/T2300-1999, which are being widely used in many fields, such as excavator, crane, construction machinery, mining machinery, metallurgical machinery, textile machinery, port/marine machinery, environmental protection equipment, aerospace equipment, wind power equipment and so on.
Our products won lots of hornor at home and abroad by high precision, long life, reasonable structure, we have passed ISO9001-2000 Quality System Certification and our main markets are covering with more than 30 countries and areas in Asia, Europe, the Americas and so on.
We will serve you with reliable design, precise technology, honest credit, promote and efficient after-sales service, and high performance-price ratio products, we will endeavor to do better in the future, any of your requirements will be highly appreciated.
