Large Sized Casting Parts Certified by BV, SGS, ISO9001: 2008
| Price: |
US $ 800-5000/Ton |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CIC-ZDJ-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
Max. 15m |
| Quality Control: |
Strict and Mature Quality Control System |
| Type: |
Clay Dry Sand |
| Material: |
Iron, Steel |
Product Description
CIC, shortened for CITIC IC Luoyang Heavy Machinery Co., Ltd, is a manufacturing base for forging & casting equipment supply into the Mining and Non-Ferrous industries. As OEM, CIC has manufactured many forging & casting mining equipment components for other OEM suppliers including TSK, FLSmidth, FFE Minerals, Metso Minerals, Outotec and others. Advantages:1. ISO 9001:2008, BV, SGS certified.2. Strict and mature quality control system.3. Most advanced manufacturing facilities of large sized forging & casting parts in China from smelting to machining (below shown in table).4. Strong capability from designing, manufacturing to installation.5. Accept inspection by the third party.6. All kinds of material are available, such as spheroidal graphite cast iron, gray cast iron, forging alloy steel, forging carbon steel and so on.7. OEM & ODM for many famous companies in the word.8. Supply all inspection reports, such as dimension, hardness, chemical composition, UT, MT, PT etc. Inspection reports.8. Girth gear with max module of 45 and max diameter of 15m Shafts with max diameter of 2m and max length of 20m Forged ring with max. diameter of 12m Star product: Spheroidal Graphite Cast Iron Support Roller We CIC has successfully made breakthroughs in R&D technologies of spheroidal cast iron support roller based on our mature and rich experience, and has exported many high quality support rollers of spheroidal cast iron to Japan. Our support rollers passed all strict inspections in the supervision of witnesses, and reached all the high requirements of our customers. We has been keeping steady and sustained cooperation with our customer.Spheroidal cast iron support roller has the following advantages compared to 1. Material: spheroidal cast iron (chemical composition: C: 3.08~3.30, Si: 2.49~3.13, Mn: 0.55~0.61, S: 0.017~0.022, P: 0.045~0.052)2. Spheroidization rate: ≥90%3. Mechanical Properties: tensile strength: ≥720N/mm2, yield strength: ≥420N/mm2, elongation: ≥2%, hardness: HB 265~3004. Products ability: Max length: Max OD: 1600mm Advantages compared to cast steel and forged steel support rollers: 1. more wearable2. lower noise 3. longer service life. Parameters of Spheroidal Cast Iron Supporting Roller | Name | Supporting Roller |
| Material | Spheroidal Cast Iron |
| Chemical Composition | C: 3.08~3.30, Si: 2.49~3.13, Mn: 0.55~0.61, S: 0.017~0.022, P: 0.045~0.052) |
| Spheroidal Rate | ≥90% |
| Hardness Value | HB 265~300 |
| Mechanical Properties | Tensile Strength: ≥720N/mm2, Yield Strength: ≥420N/mm2, Elongation: ≥2% |

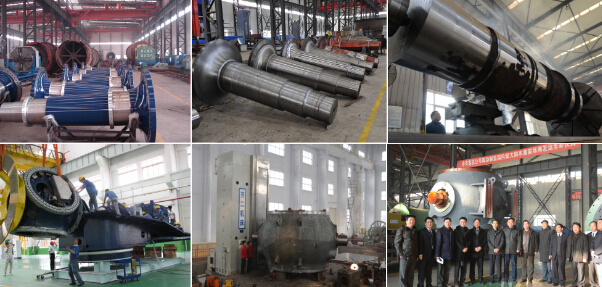

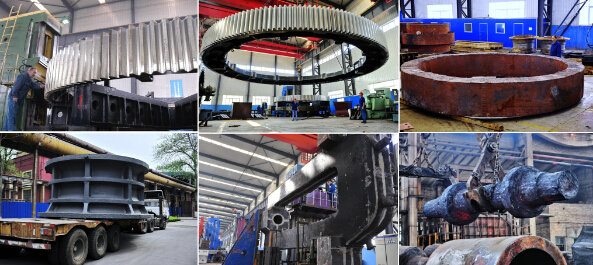

Large Sized Forging & Casting
Large Sized Forging & Casting

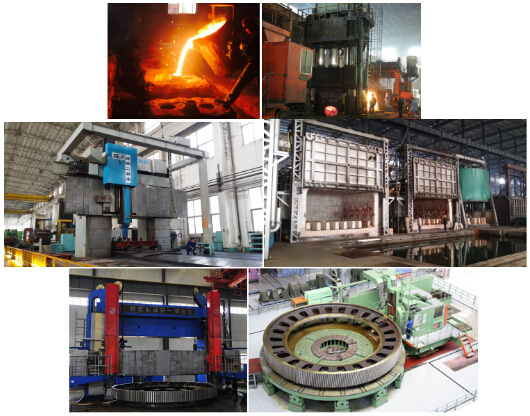

Main Facilities
CITICIC Luoyang Heavy Machinery Co., Ltd, which was the subsidiary of CITIC, is a collectivized company with 30years experience of product designing, manufacturing, installing and technical service. The main products that CITICIC manufactures are the whole-set equipments of mill, hoist, rotary kiln, steam tube dryer, copper-smelting furnace and the related spare parts and acessory products, involving in the industries of mining processing, enviromental protection, chemical, energy, copper and steel smelting, cement industry. During years of development, CITICIC has built up strong manufacturing capacity in the casting and foging work-pieces, heat treatment, mechanical machining, riveting and welding, assembling and installing and etc. Now CITICC has become the manufacturing base of the heavy machinery equipment in the middle of China. Relying on the rich scientific research and professional technical force, strong equipment manufacturing capacity, and internatioanl strict quality control system. CITICIC now supplies whole-set equipment and spare parts for many international projects related in different industries, and many international companies, such as CITICIC's parent CITIC, FL Smith, TSK, Metso, Danieli, SIEMAG, GHH and etc.
