| Prod Model: |
LZQ1500-350/2+300/5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Application

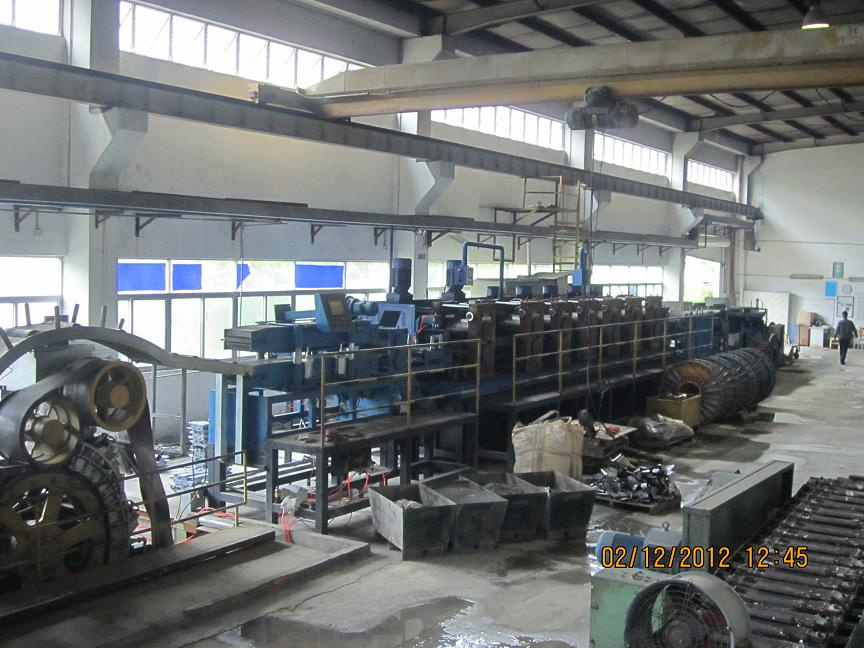

This machine is used to produce lead strip by means of continuous casting, continuous rolling and continuous coiling.
2. Composition
This line is composed of leading melting furnace with alloy melting device (prepared by customer), holding furnace with filtering box (prepared by customer), five-wheel continuous casting machine, haul-off device, tension inspection device, front cutter, feed mechanism, continuous rolling machine and lubrication system, back cutter, cleaning and drying device, haul-off device, automatic dual coiler and electrical control system.
3. Technical Specification
Cross section of cast blank: 120× 22=2640mm²
Casting wheel dia. 1500mm
Nominal dia. Of roller: Pass No. 1~No. 2: 350mm, pass No. 3~No. 7: 300mm
Final rolling speed: 0.3~0.6m/s
Finished product dimension: Width(60mm~120mm) × Thickness (0.65mm~2mm)
Production capacity: 2~3t/h
Coiling dimension: 500× 1100× 120mm
Coiling weight: About 3000KG
Total power: 130KW
4. Technical Features
Advanced continuous casting and rolling technical process, with high production efficiency, stable producing procedure, easy for operation, and high finished product rate
High strength for the lead strips, high erosion resistance, and effectively reduces the production cost.
The casting system and lead melting furnace are in centralized-arrangement, unified collecting, disposal and discharging, clean and good for environmental protection.
The casting system structure is of optimization design, and the casting procedure is controlled automatically, oxidative slug is separated automatically, good crystallization, with good dentrite arm spacing.
Rolling reduction ratio is of optimization design, which ensures the rolling precision requirement of strip width and thickness, good strip quality.
Automatic dual coiler shifts automatically, with high automation and low labor intensity.
