Product Description

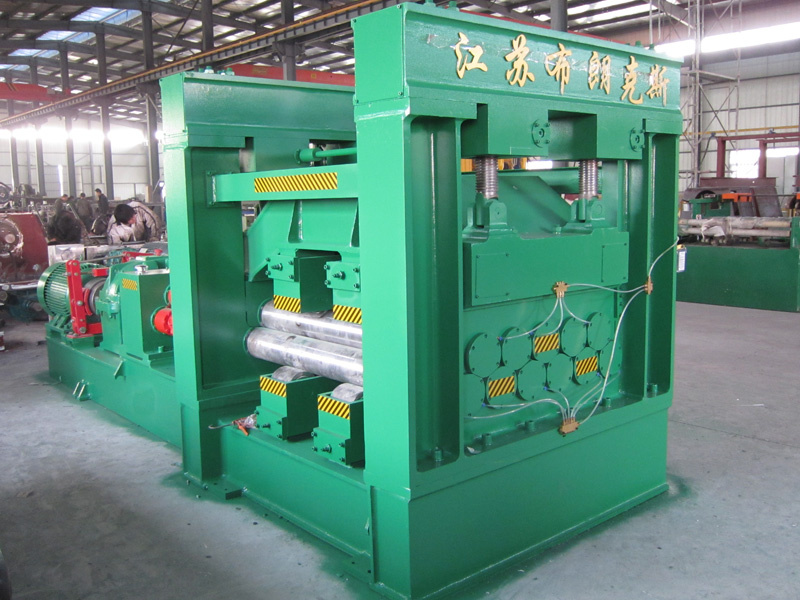

Performance features for four-high levelling machine:
1. The machine employs a four-high structure of a levelling roll and multi-group support rolls.
2. Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3. Straightening roll treatment: Stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
4. Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5. Distribution box: Self-made; It employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
6. Universal connecting shaft: Automobile universal shaft and universal roll for the metallurgical industry.
7. Adjustment methods: Manual and electrical adjustment.
8. Lubrication methods: Mainly focus on lubrication operated by manual or electric pump.
9. Applications: Applicable for general leveling for carbon steel plate, stainless steel plate.
|
Name Specification |
WG43 |
|
3*1000 |
3*1600 |
6*2000 |
10*2000 |
12*1200 |
12* 2000 |
12*2500 |
16*2000 |
16*2500 |
16*3200 |
20* 2500 |
25*2500 |
30*3000 |
32*2000 |
40* 2500 |
50* 3000 |
80*4000 |
|
Max thickness (mm) |
3 |
3 |
6 |
10 |
12 |
12 |
12 |
16 |
16 |
16 |
20 |
25 |
30 |
32 |
40 |
50 |
80 |
100 |
|
Max width (mm) |
1000 |
1600 |
2000 |
2000 |
1200 |
2000 |
2500 |
2000 |
2500 |
3200 |
2500 |
2500 |
3000 |
2000 |
2500 |
3000 |
4000 |
2500 |
|
Min thickness (mm) |
0.8 |
0.8 |
1.5 |
2.5 |
3 |
3 |
4 |
4 |
4 |
4 |
5 |
6 |
6 |
8 |
10 |
12 |
25 |
|
Plate yield limit (Mpa) |
280 |
240 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
280 |
360 |
360 |
360 |
800 |
|
Distance between rolls (mm) |
60 |
80 |
100 |
150 |
150 |
165 |
165 |
200 |
200 |
210 |
250 |
250 |
300 |
300 |
400 |
500 |
800/900 |
|
Working roll diameter (mm) |
55 |
75 |
95 |
140 |
140 |
150 |
150 |
180 |
180 |
180 |
220 |
220 |
260 |
260 |
340 |
400 |
680/870 |
|
Working roll qty (n) |
19 |
15 |
13 |
13 |
11 |
11 |
11 |
11 |
11 |
11 |
9 |
9 |
9 |
9 |
7 |
7 |
7 |
|
Leveling speed (m/min) |
10 |
14.4 |
9 |
9 |
3~7 |
9 |
7 |
7 |
6 |
7 |
6 |
7 |
7 |
7 |
7 |
6 |
6~12 |
|
Main motor power (Kw) |
15 |
18.5 |
37 |
45 |
30 |
55 |
63 |
75 |
75 |
90 |
75 |
90 |
85 |
110 |
132 |
140 |
2*450 |
|
Overall dimensions (L*W*H) (mm) |
1.6* 4.55*1.56 |
4.74*1.53*2.2 |
5.95*1.48*3 |
6.84*2.78*3.47 |
4.92* 2.18* 3.11 |
7.2* 2.6* 3.8 |
7.77*2.6* 3.8 |
7.87*2.33*4.77 |
8.37*2.33*4.77 |
9*2.5*4.8 |
10.07* 2.43* 4.69 |
11.5*2.9*5.9 |
11.13*2.5*5.58 |
11*2.9*5.9 |
11.6* 3.2*6 |
12.4*3.6*7.2 |
22.79*6.94*13.22 |
