| Prod Model: |
four-high plate plate levelling |
| Forging Forming Method: |
Mold Forging |
Product Description

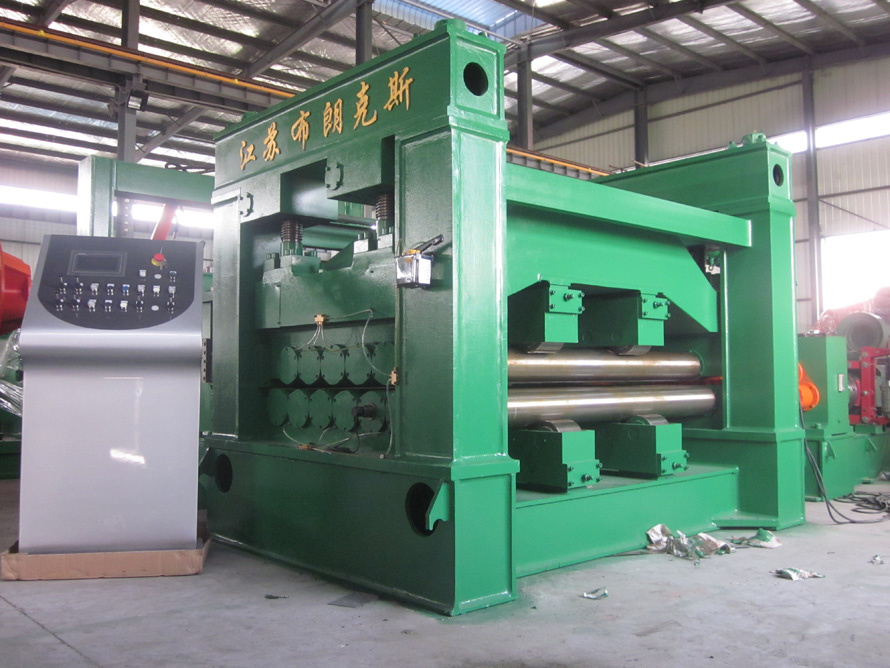

Performance features for four-high levelling machine:
1. The machine employs a four-high structure of a levelling roll and multi-group support rolls.
2. Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3. Straightening roll treatment: Stress relief by quenching and tempering, quenching (HRC54, HRC60), hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
4. Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5. Distribution box: Self-made; It employs one-stage drive and two-stage distribution structure, and its gear is the 20CrMnTi penetration gear.
6. Universal connecting shaft: Automobile universal shaft and universal roll for the metallurgical industry.
7. Adjustment methods: Manual and electrical adjustment.
8. Lubrication methods: Mainly focus on lubrication operated by manual or electric pump.
9. Applications: Applicable for general leveling for carbon steel plate, stainless steel plate.
|
Name Specification |
WG43 |
|
3*1000 |
3*1600 |
6*2000 |
10*2000 |
12*1200 |
12* 2000 |
12*2500 |
16*2000 |
16*2500 |
16*3200 |
20* 2500 |
25*2500 |
30*3000 |
32*2000 |
40* 2500 |
50* 3000 |
80*4000 |
|
Max thickness (mm) |
3 |
3 |
6 |
10 |
12 |
12 |
12 |
16 |
16 |
16 |
20 |
25 |
30 |
32 |
40 |
50 |
80 |
100 |
|
Max width (mm) |
1000 |
1600 |
2000 |
2000 |
1200 |
2000 |
2500 |
2000 |
2500 |
3200 |
2500 |
2500 |
3000 |
2000 |
2500 |
3000 |
4000 |
2500 |
|
Min thickness (mm) |
0.8 |
0.8 |
1.5 |
2.5 |
3 |
3 |
4 |
4 |
4 |
4 |
5 |
6 |
6 |
8 |
10 |
12 |
25 |
|
Plate yield limit (Mpa) |
280 |
240 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
280 |
360 |
360 |
360 |
800 |
|
Distance between rolls (mm) |
60 |
80 |
100 |
150 |
150 |
165 |
165 |
200 |
200 |
210 |
250 |
250 |
300 |
300 |
400 |
500 |
800/900 |
|
Working roll diameter (mm) |
55 |
75 |
95 |
140 |
140 |
150 |
150 |
180 |
180 |
180 |
220 |
220 |
260 |
260 |
340 |
400 |
680/870 |
|
Working roll qty (n) |
19 |
15 |
13 |
13 |
11 |
11 |
11 |
11 |
11 |
11 |
9 |
9 |
9 |
9 |
7 |
7 |
7 |
|
Leveling speed (m/min) |
10 |
14.4 |
9 |
9 |
3~7 |
9 |
7 |
7 |
6 |
7 |
6 |
7 |
7 |
7 |
7 |
6 |
6~12 |
|
Main motor power (Kw) |
15 |
18.5 |
37 |
45 |
30 |
55 |
63 |
75 |
75 |
90 |
75 |
90 |
85 |
110 |
132 |
140 |
2*450 |
|
Overall dimensions (L*W*H) (mm) |
1.6* 4.55*1.56 |
4.74*1.53*2.2 |
5.95*1.48*3 |
6.84*2.78*3.47 |
4.92* 2.18* 3.11 |
7.2* 2.6* 3.8 |
7.77*2.6* 3.8 |
7.87*2.33*4.77 |
8.37*2.33*4.77 |
9*2.5*4.8 |
10.07* 2.43* 4.69 |
11.5*2.9*5.9 |
11.13*2.5*5.58 |
11*2.9*5.9 |
11.6* 3.2*6 |
12.4*3.6*7.2 |
22.79*6.94*13.22 |
Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.
This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
