Prod Model: |
paper roll clamp |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Paper Roll Clamp |
Capacity: |
2700kgs |
Type: |
a |
Mounting Class: |
II/III |
Mounting Angle: |
0 Degree |
Long Arm Length: |
850mm |
Short Arm Length: |
570mm |
Long Arm Thickness: |
65mm |
Roll Range: |
590-1350mm |
Weight: |
752kgs |
Product Description

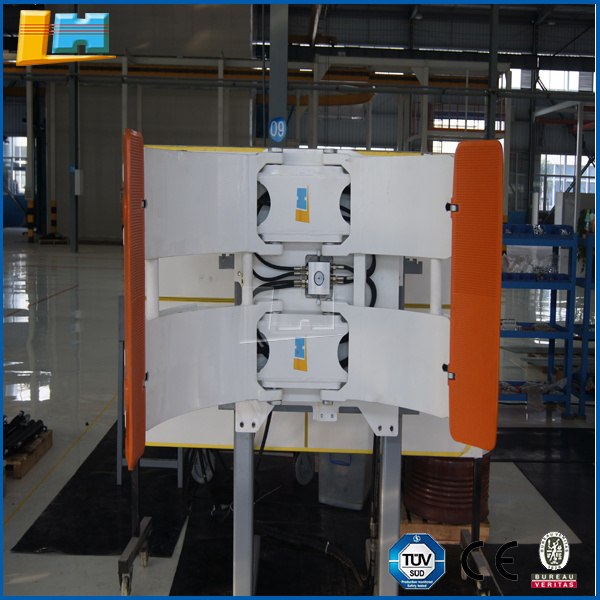

LH forklift parts paper roll clamp
Funtions & Applications
Designed for mills, warehouses, printers, newspaper publishers and converters.
Features:
1, Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.
2, Thin arm profile and smooth arm contour easies roll breakout and permits close stacking.
3, Contact pads with integral casting structure, abrasion resistance, long service life. Contact pads surface reasonable, provide the best clamping friction.
4, Continuous 360`rotation, any angle position of lock function, revolving positing 90` or 180 .
5, Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.
Capacity (kg) | Roll Range (mm) | Catalog Order No. | Type | Mounting Class | Mounting Angle | Long Arm Thickness A (mm) | Short Arm Length B (mm) | Long Arm Thickness C (mm) | Vertical Center of Gravity VCG (mm) | Weight (kg) | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
1200 | 410-1300 | ZJJ12D-B001 | A | II | 0 | 820 | 570 | 45 | 280 | 390 | 150 | 250 |
1700 | 750-1810 | ZJJ17D-C001 | A | III | 0° | 1175 | 795 | 85 | 405 | 880 | 256 | 345 |
1700 | 400-1810 | ZJJ17D-C002 | B | III | 0° | 1175 | 795 | 85 | 405 | 886 | 256 | 345 |
2000 | 530-1500 | ZJJ20D-B004/C004 | A | II/III | 0° | 955 | 775 | 95 | 343 | 768 | 205/256 | 304 |
2000 | 250-1500 | ZJJ20D-B005/C005 | B | II/III | 0° | 955 | 775 | 95 | 343 | 782 | 205/304 | 307 |
2000 | 630-1600 | ZJJ20D-B006/C006 | A | II/III | 0° | 955 | 775 | 95 | 343 | 765 | 205/256 | 301 |
2000 | 350-1600 | ZJJ20D-B007/C007 | B | II/III | 0° | 955 | 775 | 95 | 343 | 775 | 205/256 | 304 |
2000 | 330-1350 | ZJJ20D-B020/C020 | B | II/III | 0° | 835 | 550 | 60 | 343 | 730 | 256 | 307 |
2000 | 630-1350 | ZJJ20D-B021/C021 | A | II/III | 0° | 835 | 550 | 60 | 343 | 720 | 256 | 307 |
2000 | 250-1300 | ZJJ20D-B024/C024 | B | II/III | 0° | 835 | 550 | 60 | 343 | 732 | 256 | 307 |
2000 | 600-1300 | ZJJ20D-B025/C025 | A | II/III | 0° | 835 | 550 | 60 | 343 | 722 | 256 | 307 |
2700 | 590-1350 | ZJJ27D-C002 | A | III | 0° | 850 | 570 | 65 | 343 | 752 | 197 | 272 |
2700 | 310-1350 | ZJJ27D-C003 | B | III | 0° | 850 | 570 | 65 | 343 | 759 | 197 | 272 |
2700 | 250-1520 | ZJJ27D-C004 | B | III | 0° | 955 | 685 | 50 | 343 | 823 | 197 | 307 |
2700 | 560-1520 | ZJJ27D-C005 | A | III | 0° | 955 | 685 | 50 | 343 | 875 | 197 | 307 |
2700 | 250-1620 | ZJJ27D-C006 | A | III | 0° | 1030 | 856 | 50 | 343 | 895 | 197 | 307 |
2700 | 560-1620 | ZJJ27D-C07 | B | III | 0° | 1030 | 856 | 50 | 343 | 830 | 197 | 307 |
3500 | 490-1520 | ZJJ35D-C001/D001 | A | III/IV | 0 | 1000 | 772 | 65 | 500 | 1205 | 221 | 320 |
3500 | 250-1520 | ZJJ35D-C002/D002 | B | III/IV | 0 | 1000 | 772 | 65 | 500 | 1215 | 221 | 320 |
LH supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
We are specialized in designing, manufacturing and selling forklift forks (ISO/FEM standard forks, blank forks, pin type forks, straight forks, big section forks and special forks), forklift parts, forklift attachments (mechanical and hydraulic), engineering equipment attachments, agricultural equipment attachments, and automobile parts.
Our company has modern and professional manufacturing and testing equipment. Counting on solid technical strength, reliable process, ERP management software from SAP, reliable quality, excellent service, strict management, and ISO9001 Quality Management System Authentication, Fujian Longji is competitive. Our products have been exported to more than 50 countries and regions, such as Australia, Sweden, Germany, the UK and America, and have won the recognition and trust from domestic and international customers.
Located in Yongding Industry Area, Fujian, China, Fujian Longji Mechanical Equipment Manufacturing Co., Ltd. Occupies an area of 70, 000 square meters with a total investment of 146 million Yuan. With the tenet of "A journey of a thousand miles begins with a single step and pursuit is endless", we will always urge ourselves ahead. We sincerely treat every customer as our closest relative and best friend and are dedicated to providing perfect products. "German quality, Made in Longji" is our principle.
