| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V *3 Phase* 50Hz or as Per The Customer's Requi |
| Forming Speed: |
About 12-30m/Min |
| Usage: |
Roof / Buidings |
| Forging Forming Method: |
Mold Forging |
Product Description

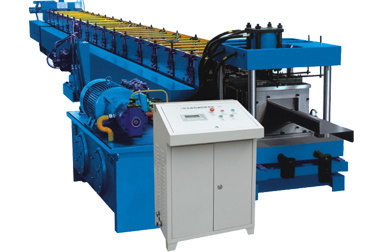

Light steel keel Roll Forming machine for steel is an updated version of the traditional roll forming machine. Instead of using screws at joining position, the corrugated sheets produced by this line are Self-locked and have successfully solved the problem of leakage. The whole line consist of un-coiler.
The corrugated sheets produced by this line are strengthened and durable with high ribs. The joining type of these sheets is self-lock, which makes it easy to install and safe with excellent water proof and storm resistance. The products are widely used as the roof of factory, warehouse, garage, gymnasium, exhibition center, cinema.
Roll Forming Machine Components:
(1) Manual Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic Cutting 1 set
(4) PLC Control System 1 set
(5) Product Rack (un-powered) 1 set
Technical Specification:
(1) Manual Un-coiler:
Un-powered; Load capacity = Max. 5Tons;
(2) Roll-Forming M/C:
About 18steps to form; Material of Roller: 45# steel with chromizing on surface
Voltage: 380V/50Hz; Main line speed: 8-12 m/min;
(3) Hydraulic Cutting:
Stop to cut, Post cut,
Cutting tool material: Cr12, Heat treatment
(4) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
(5) Product Rack (UN powered)
Hydraulic Un-coiler:
Hydraulic system to expand coil inner hole;
Frequency Inverter to regulate turning speed,
Automatic stop device; Load capacity = Max. 5Tons;
Material:
(1) Coil Width: 1250mm
(2) Suitable Coil Thickness: 0.3-0.5mm
(3) Suitable Raw Materials: Pre-painted coil (Q235A); Yield bearing stress: 235 Mpa
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
