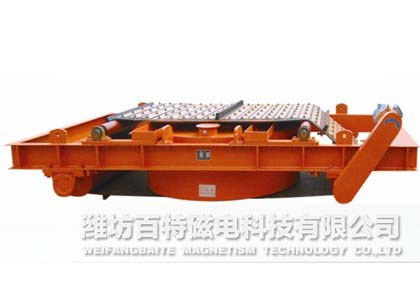

Light Type Overband Belt Permanent Magnetic Separator
| Price: |
US $ 1999set |
| Trade Terms: |
FOB |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
overband magnetic separator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Rcyd |
| Belt Width Mm: |
500-2000 |
| Suspension Height Mm: |
150 |
| Material Depth Mm: |
100 |
| Magnetic Field Intensity >mm: |
60 |
| Working System: |
Continuous |
| Weight Kg: |
750 |
| Size: |
920*2050*780 |
| Name: |
Overband Magnetic Separator |
| Type: |
Magnetic Separator |
| Weight: |
<1T |
| Certification: |
ISO9001:2000 |
| Warranty: |
1 Year |
| Color: |
Red |
| Customized: |
Customized |
| Condition: |
New |
Product Description
----Introduction:
Light type overband belt permanent magnetic separator can remove the ferromagnetic impurities from the non- magnetic materials burden on the conveyor belt.
Light type overband belt permanent magnetic separator can protect downstream important and in most cases very expensive equipments from being potentially damaged by tramp metal.
----Features:
1. Overall dimension is small size, about 70% length and 86% height of series RCYD.
2. Low noise and can attract and remove iron continuously.
3. Light weight. Average weight is usually less than 75% of that of series RCYD.
4. Economic products for the compact structure; fewer components; abandoned flat roll; easy to be hoisted and repaired;
5. Compact structure, small body, convenience for loading and maintain, able to work in tight occasion.
----Applications:
Light type overband belt permanent magnetic separator is suitable for the material is thin, and less ferromagnetic impurities occasion.
Light type overband belt permanent magnetic separator are widely applied in environmentprotection, wood, food,casting , chemical industry, building material, mining, light industry and so on.
Model |
Drum diameter
x length
(mm) |
Rotating
speed
(r.p.m) |
Magnetic induction
of the drum surface
in ore separating
area(mT) |
Upper limit of
particle size of
handled ores
(mm) |
Capacity
(t/h) |
Wight of
magnetic
drum
(kg) |
Motor power
(kw) |
Weight
(kg) |
CTG-0609 |
600×900 |
50-150 |
>120 |
7-0 |
5-10 |
800 |
7.5 |
1800 |
CTG-0612 |
600×1200 |
10-15 |
1000 |
2000 |
CTG-0612 |
800×1200 |
70-150 |
140 |
20-25 |
1400 |
2500 |
CTG-0818 |
800×1800 |
50-150 |
>120 |
15-20 |
1800 |
11 |
3000 |
CTG-0618 |
600×1800 |
70-150 |
140 |
40-45 |
2100 |
3600 |
CTG-0615 |
800×1500 |
30-45 |
2500 |
4200 |
