| Prod Model: |
SBR/TBR/SGR/SGB/OSG/HSR/HG/MSA/MGN/MGW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Guide Width Or Diameter: |
30 |
| Model No.: |
SBR/TBR/Sgr/Sgb/Osg/Hsr/Hg/Msa/Mgn/Mgw |
| Support Rail Length Max: |
6000mm |
| Material: |
Alloy Steel or Stainless Steel |
| Load Type: |
Heave Load |
| Place Of Origin: |
Zhejiang China |
Product Description

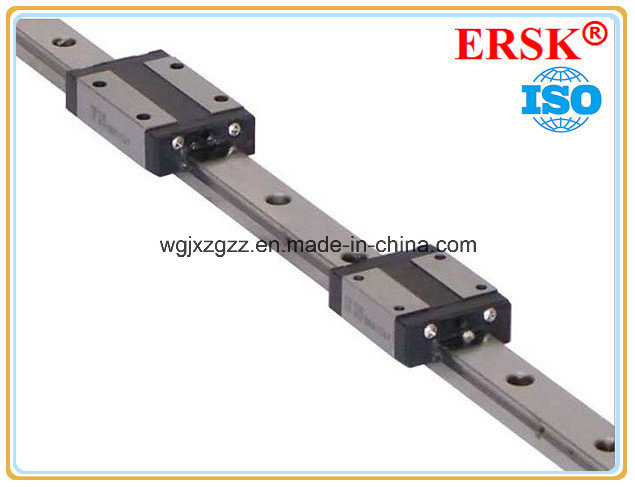

Linear guide and block:
Description
Linear guide is consisted of rail, block, rolling elements, retainer, recirculator, seal etc. By using the rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion.
Linear guide block is divied to flange type and slim type without flange.or Seal type block, Standard type block, Double bearing type block, Short type block. Also,linear block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.
Production according to customer's request, block and rail assembled for the shipping.
Specification:
1,In stock
2,Performance: antifriction, interchangeable
3,Material: bearing steel GCr15
4,Rigidity:58-62
5,Application: CNC or automatic machinery
6,Length: can be cut to your requirement
7, Match: could match with ball screw in one machinery
Advantages:
1, High rigidity and heavy load
2,Smooth running, low noise and non-pollution,high speed
3,High accurancy and easy setting up
4,Trial order is accpetable
Features:
Linear bearings and guides provide low friction, smooth, accurate motion for nearly any moment or normal loading condition.
1, Dynamic and static friction resistance difference is small, which is helpful to improve the response speed and sensitivity of CNC system
2,The driving power is small, which reduces the energy consumption
3,High positioning accuracy and repeat positioning accuracy
4,By increasing the preload, the rigidity is greatly enhanced
5,Using paired guide rails, it has the effect of homogenizing error
6,Can withstand the load from up and down or so
7,The end and the side can be manual or automatic lubricated through oil cup
8,It has simplified the desigh and manufacture of mechanical structure, therefore reduced the manufacturing cost
Application:
Linear bearing widely used in electronic equipment, tension tester and digital 3d
coordinate measurement equipment and other precision equipment, and multi-axis machine, punch, tool grinding machine, automatic cutting machine, printer,
card sorting machine installed the sliding parts such as industrial machinery. LCD manufacturing equipment, precise instruments, industrial robot, aerospace, medical and assistive and so on.
| Brand name | ERSK, HIWIN |
| Product name | Linear guide and block |
| Model no. | SBR/TBR/HGH/HGW/EGH/EGW/MGN |
| Material | quality chrome steel and stainless steel Aluminium alloy |
| Service | after-sale service and technical assistance as per customer's
requirement and needs. Customers are always given quickly
support. |
| Length | Max:6000mm, other length as your requirement |
| Delivery time | Base on customer required quantity,by negotiated |
| Products packing | Plastic bag+box case or wooden case, or according to
customer's requestment |
| Sample | Sample order could be available |
| Payment terms | T/t or L/C are available for large orders, Paypal and West
Union for small orders |
| Shipping method | DHL,UPS,TNT,FEDEX,EMS,Airfreight and by sea, By
negotiated |
| Quality | ISO9001-2008 |
Welcome to make inquiry!
Bearing:Linear Guideway
(1).Acceptable price with good quality
(2).Prompt delivery and good service
(3).Low noise and long life
(4).The precision is international standard
(5We can make bearings in your drawings or samples,and if anything of interest
to you,please fell free to contact to me.Thanks!
ERSK brand linear guide series:
TBR series:
TBR16 TBR20 TBR25 TBR30
SBR series:
SBR10 SBR12 SBR13 SBR16 SBR20 SBR25 SBR30 SBR35 SBR40 SBR50
HIWIN linear guide series:
HG series: Grinders, milling machines, lathes, drilling machines, processing
machines, EDM machines, boring machines, wire cutting, precision measuring
equipment, woodworking machines, handling machines, conveyor.
EG series: Industrial automation machinery, semiconductor machine, laser
engraving machine, packaging machine.
MGN / MGW series: Printer, robotics, electronic equipment, semiconductor
equipment.
HGH series
HGH15CA HGH20CA HGH20HA HGH 25 CA HGH30CA HGH30HA HGH35CA
HGH35HA HGH45CA HGH45HA HGH55CA HGH55HA HGH65CA HGH65HA
HGWseries
HGW15CA HGW20CA HGW20HA HGW25CA HGW25HA HGW30CA HGW30HA
HGW35CA HGW35HA HGW45CA HGW45HA HGW55CA HGW55HA
EGH series
EGH15SA EGH15CA EGH20SA EGH20SA EGH25SA EGH25CA EGH30SA
EGH30CA
EGW series
EGW 15SA EGW15CA EGW20SA EGW20CA EGW25SA EGW25CA EGW30SA
EGW30CA
MGN series
MGN 7C MGN 7H MGN9C MGN 9 H MGN12C MGN 12H MGN 15C MGN 15H
MGW series
MGW 7C MGW 7H MGW 9C MGW 9H MGW12C MGW 12H MGW15C MGW 15H
Best Service: We have professional personnel to operate.
We can according to your drawings or your requirements custom-made production.
Best Quality: We have a special quality inspection equipment.
Contact
Tel No.: 86-0578-2920308
Mobile Phone: 86-13957077962
Welcome to communicate and hope have a good cooperation!
Thank you very much
Our company (Lishui Wangong Precision Machinery Co., Ltd. ) has ERSK brand by ourself.
We focuse on precision transmission parts for 10 years, specialize in manufacturing linear motion
Bearings series, slider series, ball screw series, linear rail series, flange linear bearings series, Cylinder
Linear rail series, joint bearing series, rod ends bearings series, radial spherical plain bearing series,
Wheel and pin bearings series.
We have the professional production team and QC staffs to control quality for each step, high precision
Equipments (German Chiron FZ15W, DMG MORI MAX3000 Machining Centers and so on)
Are the basic for manufacture company.
Our Principle: Good quality, Competitive price, Fast delivery, Best service
Our company lies in Lishui TianNing Industrial Zone, which is a convenient traffic Green Valley capital. We are engaged in production of above goods for many years, whose production capacity reach 150, 000 sets.
Since the establishment of the company, we adhere to the purpose of the quality first, the customer first, dedicated service and trustworthy. Our company can supply a wide rang of bearings with top-quality and competitive price.
Since our foundation, our company has been always sticking to the purpose of "quality first, customer first, wholeheartedly service, sincere and trustworthy; Dare to develop, strive to achieve, create good performance and cultivate a higher credibility".
We welcome all new and old customers to come to our company for communication, guidance and business negotiation.
