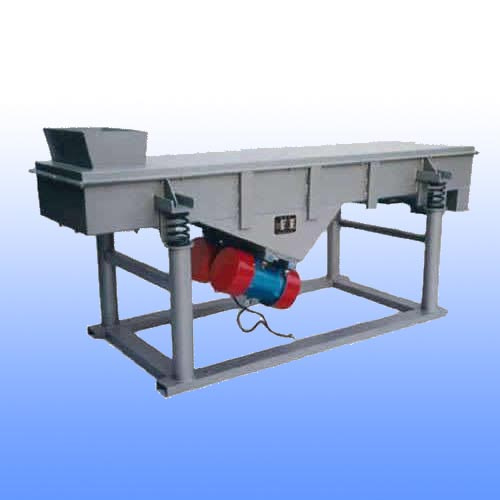

Linear Vibrating Screen for Tailings Dewatering

Linear Vibrating Screen for Tailings Dewatering
Price: US $ 4500set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: ZK1445
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Linear Vibratings Creen Price: Negotiate
Linear Vibrating Screen Warranty: One Year
Linear Vibrating Screen Installation: Engineer Guide
Type: Linear
Object: Ore
Shaft Number: Double
Condition: New
Function: Linear Vibrating Screen
Usage: Size Grading
Works: Linear Vibratings Creen

Product Description

Linear Vibrating Screen For Tailings Dewatering:


1. screening ratio:95%
2. warranty:1 year
3. materail: Q235A or SUS304
4.long service time


DZSF Series Linear Vibrating Sieve Machine
Working Principle:
DZSF series linear vibration sieve is used as a source of vibration excitation by vibrating motor, so that the sieve material being thrown up and forward for linear motion ,in order to match reasonable sieve.There are several balls on the bottom of screen frame hit each other when vibrating, which can clear screen and avoid blocking effectively .
Features:
1) Continuous production, single or multi-layer auto-classification filtering
2) Good sealing performance, no dust overflow.
3) Energy-saving and low noise with vibration motor.
4) Start fast and stop smoothly
5) Simple installation, easy operation and maintenance
6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
7) High-precision screening reach to 96% or above, large processing capacity.


Application:
It is suitable for any dry material screening from 0.74mm-5mm., the largest particle size is 10mm.It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.
1)
Chemical industry:
resin pigment, medicine, grease, paint, palette, etc.
2)
Abrasive material and ceramic industry:
building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3)
Food industry:
sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4)
Paper-making industry:
coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5)
Metallurgy and mining industry:
quartz sand, ore, titanium oxide, zinc oxide, etc.
6)
Mechanical industry:
casting sand, powder metallurgy, electromagnetic material and metal powder, etc.


Technical Parameters of Linear Vibrating Screen


Model
Sieve specification(L×W)

Sieve layer

Mesh size

Feeding size

Processing capacityMotor power

Total weightVibrating frequencyDouble amplitudeSieve obliquity

Dimensions (L×W×H)
(mm)(mm)(mm)(t/h)(kw)(kg)(Hz)(mm)(ºC)(mm)
ZSG12373700×120014-50≤20010-1005.5×22250166-8153800×2050×1920
2ZSG12373700×120024-50≤20010-1005.5×23345166-8153800×2050×2200
ZSG14434300×140014-50≤20010-1505.5×24100166-8154500×3040×2500
2ZSG14434300×140024-50≤20010-1505.5×24900166-8154500×3040×2700
3ZSG14434300×140034-50≤20010-1505.5×25870166-8154500×3040×2820
2ZSG15484800×150025-50≤20015-2007.5×25836168-10154800×3140×2814
3ZSG15484800×150035-50≤20015-2007.5×26900168-10154799×3140×3014
2ZSG18484800×180025-50≤30050-5007.5×26489168-10154799×3440×2814
3ZSG18484800×180035-50≤30050-5007.5×27750168-10154799×3440×3014
4ZSG18484800×180045-50≤20050-50011×28300168-10154799×3440×3503
2ZSG18606000×180025-150≤30080-60011×29950168-10156000×3440×3326
