| Prod Model: |
To order |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Order |
| Specifications: |
Worm Self-Locking Performance Is Good. |
| Feature: |
The Handwheel Flexible Rotation, |
| Categories: |
Tb,GB,Qb,CB,Bwb |
| Casting Method: |
Sand Casting |
| Casting Form Material: |
Metal |
| Casting Metal: |
Cast Steel |
| Casting Form Usage Count: |
Semi-permanent |
| Coating: |
Spray-Paint |
Product Description
Specifications

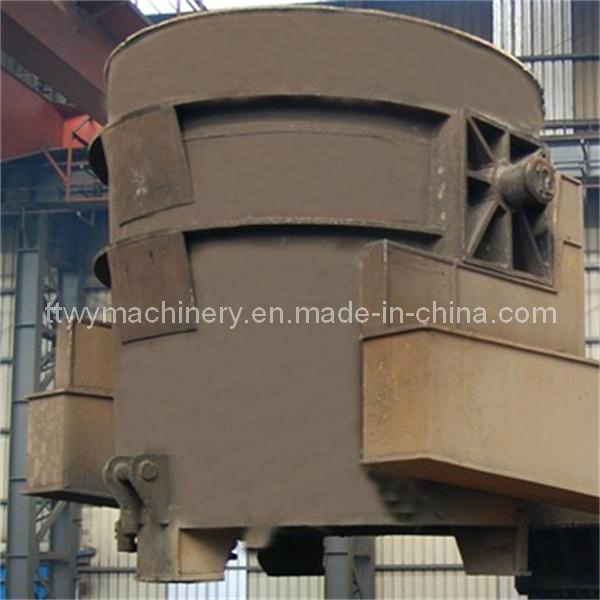

Steel ladle used in steel plant to hold and poured molten steel for continuous casting
Machine. Mechanical part
1Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2Tundish
3Tundish car
4Mould
5Mould vibration device
6Vibration drive device
7Protecting cover for vibration device
8Secondary coolings spraying frame
9Secondary coolings spraying pipe
10Spraying nozzle for secondary cooling water
11Support roller device for secondary and thirdly cooling
12Withdrawal straightening machine
13Transmission device for withdrawal straightening machine
14Universal joint
15Rigid dummy bar
16Dummy bar storage device
17Guide roller for dummy bar storage device
18Billet delivery roller table
19Hydraulic billet pusher
20Platform for billet collection
21Flame cutting machine/hydraulic shear (determined by customers)
Electrics control system
23Control system for mould vibration
24Control system for withdrawal straightening machine
25Effective control system for dummy bar
28Control system for billet delivery roller table
29Control system for billet out
30Control system for central hydraulic station
Steel structure
31Main casting platform
32Casting platform
33Platform for dummy bar storage
Auxiliary system
34Hydraulic system
35Discharging device for secondary coolings steam
36Control system for secondary cooling water
37Suspended operation box for withdrawal straightening part
38Special configuration can be provided in accordance with customers requirements
| Machine model | Fully arc continuous casting machine |
| Production ability | Depending on casting radius |
| Casting radius | R3m-R13m |
| Billet specification | Round, square and rectangular (slab) |
| Strand quantity | Depending on output requirement |
| Steel quality | Common carbon steel; bearing steel; low alloy steel and stainless steel, etc. |
| Ladle supporting method | Ladle turret; ladle moving car; fixed ladle support |
| Cooling method | Fully water cooling |
| Billet out method | Hydraulic billet pusher |
| Weight | Depending on casting radius and strand quantity |
| Color | Depending on customers requirement |
| Delivery time | Around 45 working days (without busy schedule) |
