| Price: | US $ 100/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | 8405515 8405516 8414430 8498469 9547101 9570963 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO 9001:2008 |
| Production Method: | CNC Machining |
| Material: | Aluminum Alloy 7075, C355, 6061 |
| Type: | Mechanical Turbocharger System |
| Body Material: | Aluminium |
| Certification: | ISO9001 |
| Application: | Gemd Alco |
| Brand: | Yilicasting |

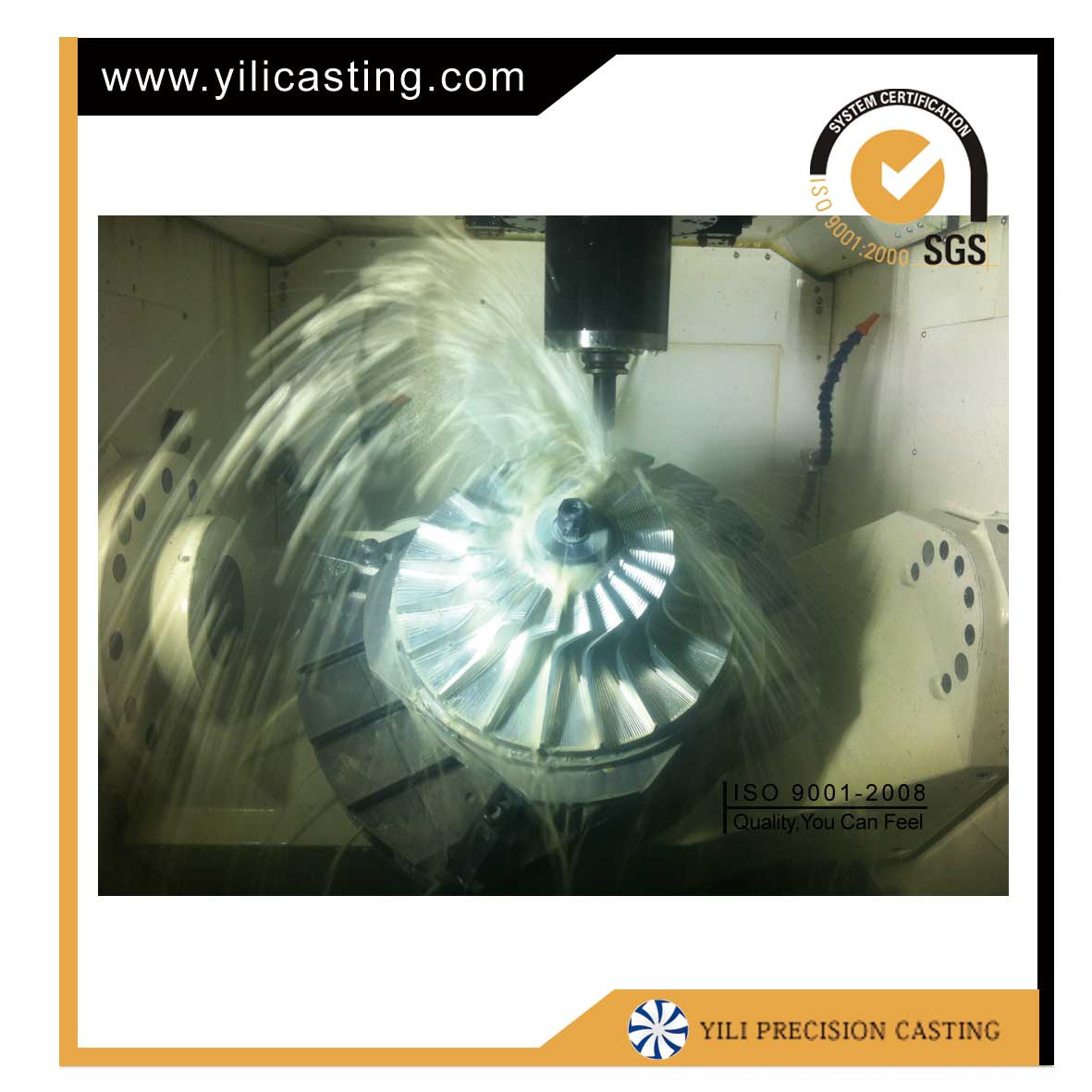

Locomotive aftermarket turbocharger parts impeller turbine compressor blade
uProduct Photo Show
Usage:
Locomotive compressor wheel, impeller, assembly with nozzle ring and turbine disc
Raw Material
Aluminum alloy 7075, 6061, A270.ect.
uPart no for impeller. we produced in our factory now
Part no. for our nozzle ring.
8405515 8405516 8405517 8414430 8498469 9547101 9570963 40004677 40014637 40053517 40058838 40120140 126X1453-1 126X1491-1 126X1494-1 126X1586-1 126X1621-1
uProduction Process
Production Method: low pressure die casting and CNC machining
Mold making: Adopt Japanese Sanchi MAZAKfive-axis linkage CNC machining center to make the mold in our workshop.
Wax pattern and shell making: Adopt America Wax, Australian Zircon and Powder to make sure the
surface finishing
Pouring:
Machining:
Testing Sevice
Testing Service Details | Machine Name |
Material's chemical component analysis | Germanic Spectrograph |
Tensile strength test | Room temperature tensile test machine |
High temperature tensile test machine | |
Yield strength test | Creep test machine |
Surface defect test | Fluorescent penetrant test machine (FPT) |
Inner defect test | Automatic X-ray inspection |
Hardness test | Brienll hardenss tester |
Rockwell hardness tester | |
Dimension measurement | Three coordinate measurement |
Three dimensional (3D) scanner | |
Grain size test | Metallographical detector |
Nozzle rings, turbine disc, impeller assembly.
uPackaging: Use the foamed plastics to protect the goods very well, then pack the goods into plywood box or carton box. Other products assembly with nozzle ring:
uShipment: Shipment: Within 30 days after your order confirmation and payment.
OEM Service Available
Service for aftermarket. All products are made against OEM standard specifications, including material, dimension, testing requirement etc.
uOur Certificate: GB/T 19001-2008 / ISO 9001-2008
uExhibitions:
ucustomers from all over the world
