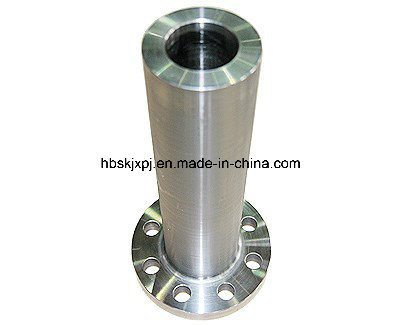

Long_Weld_Neck_Flange

Name: Long_Weld_Neck_Flange
Brand: china-castingforging.com
SKU: 700509712
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 1000-1500/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Ton
Pay Type:	L/C,T/T

Contact Supplier

Renqiu Shuangkun Machinery Parts Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn15-Dn3600
Shape:	Circle
Standard:	BSW
Manufacturing Way:	Forging
Type:	Plate,Blind,Slip-on,Wn,Lap-Joint,Loose Flange etc.
Material:	Carbon Steel,Stainless Steel, Alloy Steel
Sealing Surface:	RF,FM,Mfm,Tg,FF,Rj

Product Description

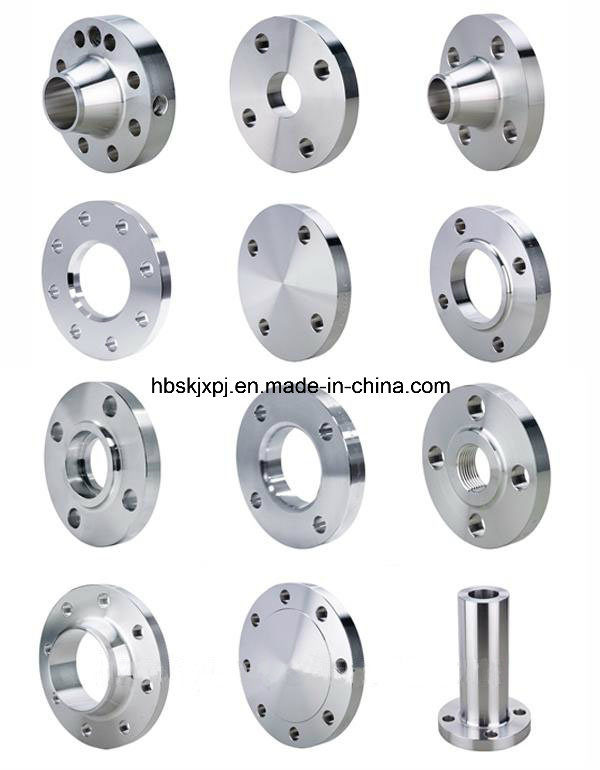

Product Pictures:

Brief Description:

1. Application:

For seal or connect of pipe/tub-e lines

2. Material:

304,304L,316,316L,carbon steel or other material on request

3. Standard:

ANSI,DIN,JIS,BS,EN1092-1

4. Size:

DN15 (1/2") to DN5000 (200")

5. Type:

Threaded Flanges, Socket Welding Flanges, Blind Flanges, Other Flanges

Flange Materials	Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
	P250GH, P280GHM 16MN, 20MN ,20#
	Stainless Steel: ASTM A182, F304/304L, F316/316L

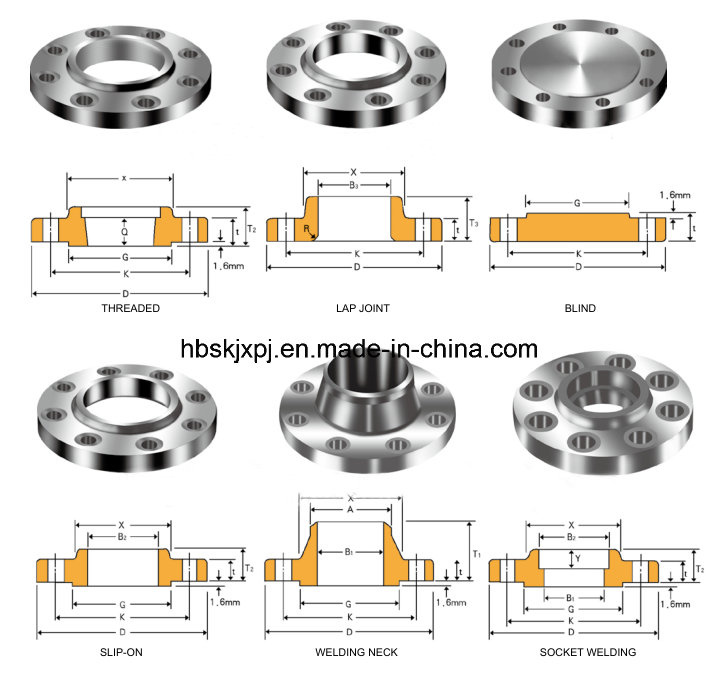

Flange Types	Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed FF/RF/RJ(ring-joint)
	Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
	Blind Flange/Blank flange, Lap Joint Flange /LJ Flange FF(flat face) RF(raised face)
	Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange
	Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
	Custom Flange/Special Flange Hot/Cold/Electro Gavanized Flange
Standards	ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
	JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
	BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
	GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Pressure & Ratings	150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
	PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
	PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80
	600kPa, 1000.1600.2500.4000.-SANS 1123
	5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
	TABLE D, TABLE E ,TABLE F-BS 10, AS2129
	CLASS D, CLASS E, CALSS F, AWWA C207
Surface Treatment	Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color
	Varnish Paint Coating, Varnish Oil Coating,
	Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm)
	Hot Dip Galvanizing Coating (Coating Thickness 200μm around)
Technical	Forging
Application	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
	and general pipes connecting projects etc.
Inspection	Quality Control System-Well Equipments and Machinery-Well Workers and Engineers
Packing	Wooden Pallets or Wooden Cases or As Customers' Requirements
Payment Terms	L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L
Delivery Time	30 Days \after the Advance or the L/C
After-Sales Service	Orders and Products Tracking System

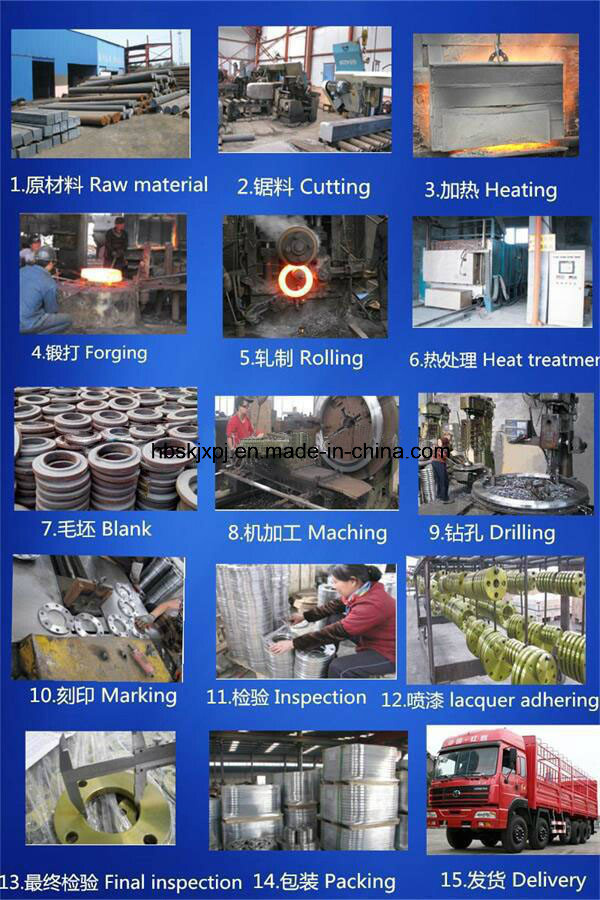

Production Flow Chart:

Established in 1995, Renqiu Shuangkun Machinery Parts Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of sprocket, gear and flange. We are located in Renqiu City, with convinient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Covering an area of 15000 square meters, we now have over 120 employees, boast an annual sales figure that exceeds USD 10 million and currently export 80% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have recieved ISO9001 certificate.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching European, South America, Southeast Asia, Middle East and Africa.

Since its foundation, the company keeps living up to the belief of: "honest selling, best quality, people-orientation and benifits to customers. "

We are looking forward to forming successful business relationships with new clients around the world in the near future.
