Lost Wax/Investment Casting for Auto Spare Parts

Name: Lost Wax/Investment Casting for Auto Spare Parts
Brand: china-castingforging.com
SKU: 706140072
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	US $ 1666-3666/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Qingdao Chifine Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	CF-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Carbon Steel Investment Casting
Dimension:	Can Be Customized as Your Requests
Brand:	Chifine
Country Of Origin:	Qingdao, China
Package:	Wooden Case or as Your Requirement
Material Available:	Stainless Steel, Carbon Steel, Iron, Alloy, etc
Model No.:	Car Part 30
OEM:	Available
Samples:	Available
Delivery:	15-30 Days Based on The Order Quantity
Casting Method:	Thermal Gravity Casting
Material:	Carbon Steel
Surface Preparation:	Sand Blast

Product Description

Product Description:
1. Carbon steel investment casting by lost wax investment casting
2. Moulding process: Water glass Precision Casting
3. Material: Carbon steel
4. Possible Heat Treatment: Normalizing, tempering, hardening and tempering
5. Industry involved: Agricultural& Engineering& Automotive industry
6. Part Unit Weight range: 0.01Kg~100kg
7. Wall thickness requirements: Min 2mm
8. Manufacturer certification: ISO9001 (2008)
9. OEM service is available
10. We can do the parts according to the clients' drawings or sample or special requirement.

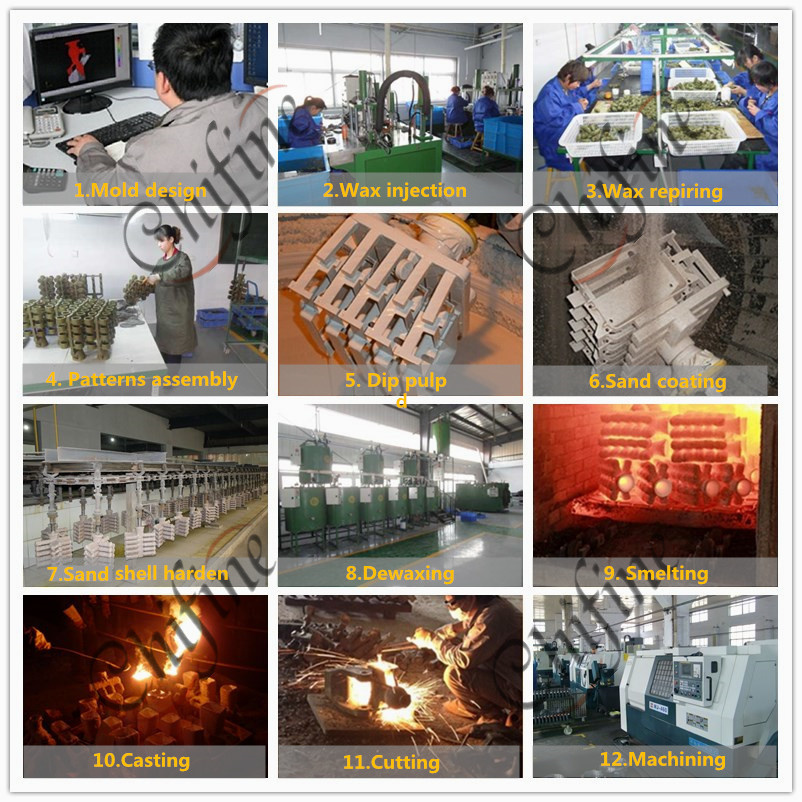

LOST WAX CASTING PROCESS

Description	Material	Technical process
Carbon steel casting	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205,450-240,485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446),GS-52(1.0552),GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
Stainless steel casting	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi189(1.4308), G-X7Cr13(1.4001),G-X20Cr14(1.4027),1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
Alloy steel casting	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
Ductile iron casting	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
Grey iron casting	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting

Metal castings

Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.

Automative Casting Line:

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

• Product Size: 0-1000mm.

• Weight: 0.2kg-100kg

Resin Sand Casting

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)

• Product Size: 0-1500mm.

• Weight: 10kg-5000kg

Shell Mould Casting

Shell casting is one of resin sand casting process.

It is suitable for thin-wall casting parts, be free from porosity.

• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);

Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Steel alloy; Aluminum alloy; Copper alloy.

• Product Size: 0-500mm.

• Weight: 50g-100kg.

• Wall thickness: 4-20mm

Lost Wax Casting

• Advanced wax-injection-machine and tool to ensure accurate wax-patten.

• Stable temperature and humidity environment make the wax-patten no deformation.

• Material:

Carbon steel; Stainless steel; Alloy steel.

Grey iron(GG20-GG35).

Ductile iron(GGG40-GGG60);

Malleable cast-iron

(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).

Aluminum alloy; Copper alloy.

• Casting size: 0-500mm.

• Casting weight: 50g-100kg

Stamping and Forging Line

• Stamping and forging equipment: 16T-300T press machine

• Automatic transport forging line

• Material: Carbon steel; Stainless steel; Alloy steel.

Aluminum alloy; Copper alloy.

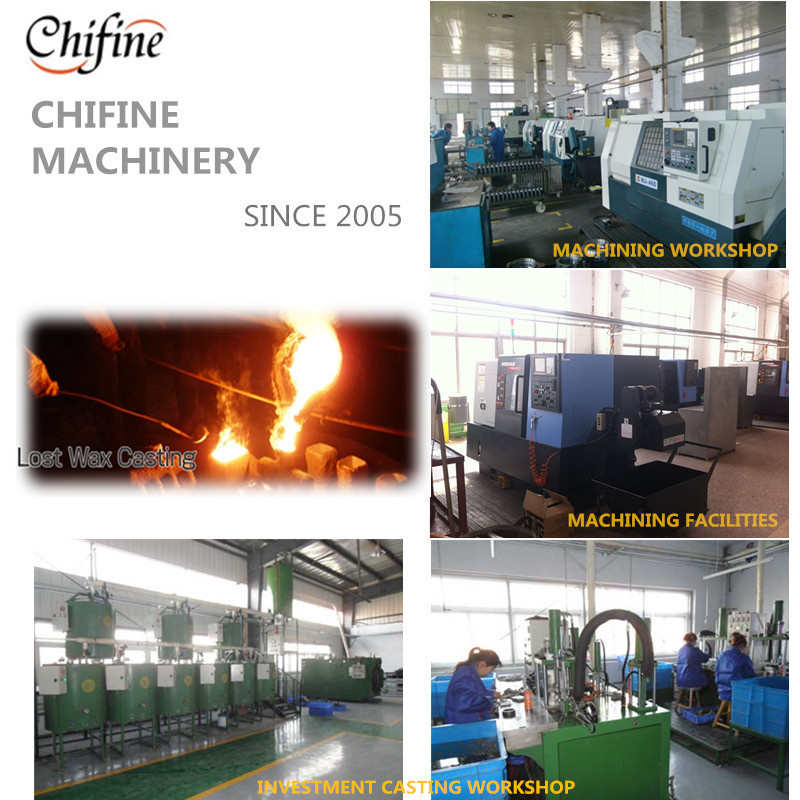

Machining Shop

Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.

• Horizontal and Vertical Machining Center

• CNC lathe and normal lathe

• CNC drilling and milling Center

• Other assistant equipment
