| Prod Model: |
20mm-150mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
Dia.20mm-150mm |
| Certification: |
ISO9001, ISO14001,ISO18001 |
| Application: |
Mine,Cement,Electric Power Plant,Chemical Plant |
| Packaging: |
Steel Drum or Steel Barrel,Container Bag |
| Delivery Time: |
Prompt |
| Raw Material: |
High-Quality Round Steel |
| Surface Hardness: |
55-67HRC |
| Drop Test Times: |
More Than 2000 |
| Keywords: |
Forged Steel Ball |
| Processing Type: |
Rolling Type |
| Material: |
Steel |
| Usage: |
Mine, Cement, Electric Power Plant |
| Size: |
20-150mm |
Product Description
Features and Advantages:
Concentrating on wear-resistant grinding material for 28 years, Huamin Brand steel grinding ball is excellent in surface quality, hardness, and resistant to impact and abrasion. It won't crack and lose circularity easily.
1) High hardness: Huamin forged grinding steel ball has high hardness: Surface hardness can reach to 55-67 HRC, volume hardness 56-64 HRC
2) High Impact toughness: Impact toughness is more than 12 J / cm2.
3) Low Broken rate: Peel fragmentation resistance property of over 20000 times. The actual breakage rate is less than 1% and close to 0.
Technical Parameters:
As in the following sheet
Raw Material
As we know, the quality of forged grinding piece depends on the material by 80%. Our products use high-quality round steel from national large-scale steel mill to insure the quality of our products.

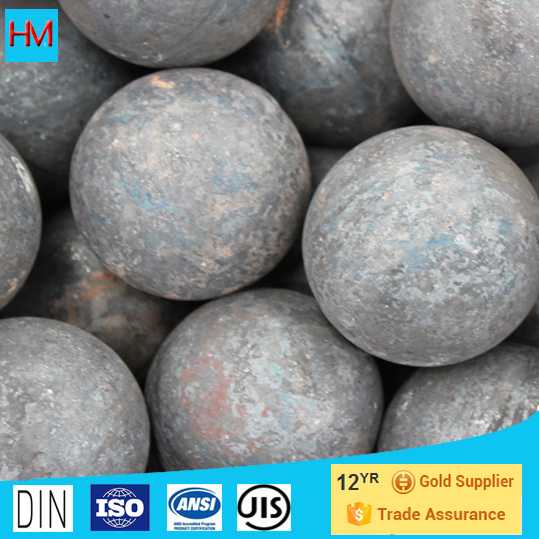

Products Show:
Our products range from 20mm to 150mm, 1 inch to 6 inch, and we can also offer all size of products according to clients' demand.
Packing Instruction:
Barrel with wooden pallet:
Barrel size(cm): 89 × 58 (Volume: 800kgs-900kgs N. G. Avaliable)
Pallet size(cm): 168 × 59× 13
Two Barrel tie on the wooden pallet, steel tape for bundle
Strong Nylon Bag:
Available Bag: 500kg; 1000kg
The Production Line And Equipment:
The self-developed automatic steel grinding ball production line is our qualified product, and it has won Chinese invention patent. It uses electric furnace instead of conventional coal combustion method, and the rotary cutting technique replaces traditional air hammer, thereby improving production efficiency by 30 times or even higher
Testing:
Each step of our product will be tested strictly. We take charge of our work and, of course, our products.
Our Company and Factory:
In the Chengdong Industry Park of Zhangqiu City Economic Development Zone, it is 50 KM to the east of Jinan Airport, in north of the 309 National Highway and it's 300 kilometer from Qingdao port! The company covers an area of 213, 000 Square Meters (including the new land of 67, 000 Square meter), total area 320 Mu! The structure area has total 50, 000 Square Meters (including the office building area of 7, 000 Square meters and warehouse area of 15, 000 Square Meters).
The factory had a total of 230 people (it includes 25 engineering and technical personnel, 40 sales which consists of domestic sales and export sales, 20 administrative staff, 35 logistics service personnel and 110 production workers). The capacity of production is 150000 Metric Tons per year.
Certification and Patent:
Our company has obtained ISO 9001 International Quality System Authentication, ISO14001 Environmental System Management Authentication and ISO18001 occupational health and safety certification, safety standardization identification, clean production enterprise certification.
Cooperative Partner:
We export our products 80% into the foreign market, and keep close cooperation with many large companies at home and abroad.
Credibility:
Our company has won the "Shandong Province Famous Brand", "Shandong Famous Trademark", "Leading Forged Steel Ball Manufacturer in China ", "High-tech Enterprise "and "Contract Abiding and Promise Keeping Enterprise", etc.
Nominal
Diameter(mm) | Dimensional Tolerance(mm) | Roundness % |
| Φ20 | ±2 | ≤6 |
| Φ25 | ±2 | ≤6 |
| Φ30 | ±2 | ≤5 |
| Φ35 | ±2 | ≤5 |
| Φ40 | ±2 | ≤5 |
| Φ50 | +3,-1 | ≤4 |
| Φ60 | +3,-1 | ≤4 |
| Φ70 | +3,-1 | ≤4 |
| Φ75 | +3,-1 | ≤4 |
| Φ80 | +4,-2 | ≤4 |
| Φ90 | +4,-2 | ≤4 |
| Φ100 | +4,-2 | ≤4 |
| Φ120 | +4,-2 | ≤4 |
| Φ125 | +4,-2 | ≤4 |
| Φ130 | +4,-2 | ≤4 |
| Φ140 | +4,-2 | ≤4 |
| Φ150 | +4,-2 | ≤4 |
We are Shandong Huamin Steel Ball Joint-stock Co., Ltd. Our company is the biggest manufacturer of grinding media with 26 years experiences in China. We can supply high quality grinding steel ball with reasonable price, timely delivery and satisfactory service. And our company has obtained the Certificate of ISO9001 and ISO14001. The annual production output is 150, 000 metric tons. Our products are exported to more than 20 countries and regions.
Our main products are as follows:
Grinding Media
1. Forged Grinding Steel Ball
Such as:
High Manganese Forged Steel Ball
B2, B3 New Material Forged Steel Ball, etc.
2. Casting Grinding Iron Ball
Such as:
High Chrome Casting Iron Ball
Middle Chrome Casting Iron Ball
Low Chrome Casting Iron Ball, etc.
3. Grinding Steel Rod
Dia. 60-90 mm, Length 3000-6000 mm
Hardness: HRC 45-55
4. Grinding Cylpebs, etc.
For more product details please browse our website. And the customized products also can be supplied as per your requirements. They are mainly used in the ball mill for mines, cement plants, power stations, chemical industries, etc. We warmly welcome you to come to have a visit, negotiation and cooperation.
