| Prod Model: |
M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Accepted |
| Certificate: |
CE, SGS, ISO |
| Flow: |
540-1228 M³/H |
| Head: |
15-61 M |
| Discharge Size: |
8 Inch |
| Drive Style: |
Dcz, Zvz, Crz |
| Material: |
Cr26, Cr27, Cr28... |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description

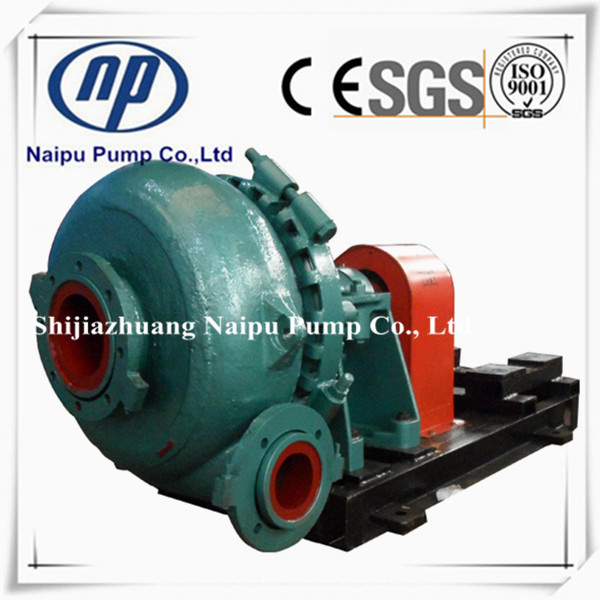

1. Products: Naipu® NP-M series centrifugal slurry pumps and spare parts could fully interchange with world famous brand. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal casting liners and Impellers, which are all interchangeable within a common casting assembly.
AH, M, H slurry pumps are suitable for pumping slurry with hard particles and in high density in industrial sectors as of metallurgy, mining, coal, power generation and building material. These pumps can also be applied multi-staged in series.
These pumps are those of cantilever, horizontal and centrifugal ones, whose shafts can be sealed by packing seals or by centrifugal type seals. The positions of the pump outlet can be positioned at an interval of 45° According to different requirements, so eight different angles can be applied by rotation in installation.
2. Structural Image: M-series are suitable for severe slurry conditions with coarse particles and high competency:
2.1 Two types of material for wet parts (volute liners, front and back liners, impellers):
L high-chrome alloy
L highly wear-resistant rubber
2.2 Structure of shaft seals:
L Packing gland seals
L Pressure-reducing metal/ rubber gland seals
L Mechanical seals
The M. AH type slurry pumps have pump bodies (volute liners, front and back liners) that consist of replaceable wear-resistant metal liners or wear-resistant rubber liners, and impellers can also apply wear-resistant metal material or wear-resistant rubber material. The HH type slurry pumps only apply wear-resistant metal material as their pump bodies and impellers.
2. Structural Image:
L-Series slurry pumps are suitable for severe slurry conditions with coarse particles and high competency.
2.1 There are two types of material for wet parts (volute liners, front and back liners, impellers):
L Made of high-chrome alloy material;
L Made of highly wear-resistant rubber material researched and developed by Naipu company.
Both of them can fulfill the task of slurry pumping with high efficiency and long service life.
2.2 Structure of shaft seals:
L Packing gland seals;
L Pressure-reducing metal gland seals;
L Pressure-reducing rubber gland seals;
L Mechanical seals.
|
Type |
Allowable Mating Max. Power(Kw) |
Clear Water Performance |
Impeller |
|
|
|
Capacity/ m³/hr |
Head/m |
Speed/rpm |
Max Efficiency/% |
NPSH/m |
Nos of Vane |
Diameter/mm |
|
10X8E-NP-M |
120 |
540-1228 |
15-61 |
600-1100 |
70 |
4.5-8 |
4 |
549 |
|
10X8R-NP-M |
300 |
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
