| Prod Model: |
ly-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Range: |
1000mm*1000mm*600mm |
Product Description
Machine parts Machinery Parts with Precision CNC Lathe CNC Machining
A. Products:
Precision CNC Machining / Machined Parts, CNC Lathe Parts, CNC Milling Parts,
CNC Turning / Turned parts, Grinding Parts, Precision Machinery Parts, Machine parts.

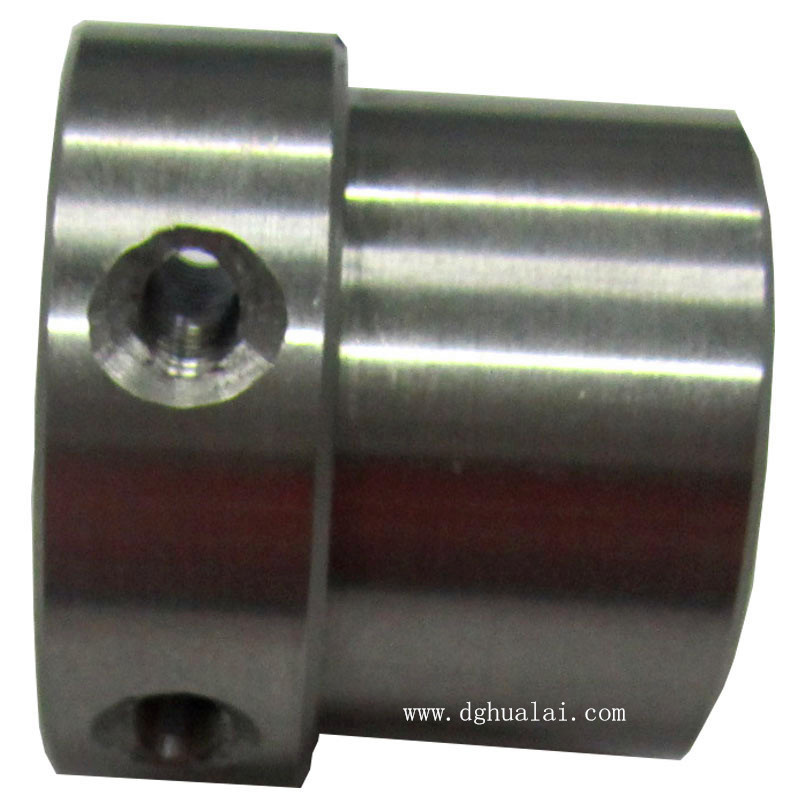

B. Picture of Sample
C. Main Equipment
CNC Machine Center, CNC Turning Machine, Low Speed W/C/ High Speed W/C
Milling Machine, Lathe, Surface Grinder, Big Water Grinding Machine
D. Material
Stainless Steel, Cold Work Die Steel, Powder High Speed Steel, Spring Steel
Aluminum, Copper, Brass, Phosphor bronze, Beryllium Copper
Alloy steel, Plastic (DERLIN, Nylon, Teflon, POM), Titanium, etc
E. Surface Treatment
Electro-polishing, Electroless Nickel Plating, Anodizing Black/Clear, Silver Plating
Golden Plating, Zinc Plating, TIN Plating, Chrome Plating, Heat Treatment,
Carburization, Phosphating, Case Hardening, Steel Oxidizing Dark-blue, etc
F. Detection Equipment
Coordinate Measuring Machine, Projector, Height Gauge, Micro-scope, Rockwell Harness Tester, etc
G. Tolerance(detail as the following form):
+/-0.01mm
H. Detail
A. All parts produced according to your drawings or sample. OEM&ODM are welcomed.
B. Competitive quotation will sent to you within 1 day after you send the blueprint or drawing.
C. Lead time: 5-25days after the confirmation of sample
D. Minimum Order: Comply with customer's demand
E. Delivery way: EXPRESS, BY SEA or BY AIR on your requirement.
These products showed here only present the capability of our business activities.
Please feel free to let us know if you have any question.
|
Item |
Machining Process |
Working Range & Table Loading |
Machining Accuracy(AII is mm) |
Machining Scope
(XxYxZ)mm |
Processing
Weight
Kg |
Hole Dia Tol
(Φ2-50h) |
Circularity/
Cylindricity
(Φ2-50h) |
Hole Distance
AorB≤75h |
Hole Perpend-
icularity
T≤15h |
Hole Parallelism
T≤15h |
Surface
Roughness
Ra(µm) |
|
1 |
Milling Machining |
914*406*406 |
700 |
≥±0.01 |
0.01-0.03 |
≥±0.021 |
0.01-0.03 |
0.01-0.03 |
1.6-3.2 |
|
2 |
High Speed CNC Milling |
1100*600 |
400 |
≥±0.005 |
0.008-0.02 |
≥±0.01 |
0.008-0.02 |
0.008-0.02 |
0.8-1.6 |
|
3 |
Wire Cut |
350*250 |
200 |
≥±0.0025 |
0.0025-0.005 |
≥±0.0025 |
0.0025-0.005 |
0.0025-0.005 |
0.2-0.4 |
|
Item |
Machining Process |
Working Range & Table Loading |
Machining Accuracy(AII is mm) |
Machining Scope
(XxYxZ)mm |
Processing
Weight
Kg |
Hole Dia Tol
Φ1.5-50h
L≤1.5-50h |
Flatness≤75×75h
T≥3.0h |
Perpend-icularity
≤75×75h |
Parallelism
≤75×75h
T≥3.0h |
Circularity/Cylindricity
Φ2-50h L≤50h |
Concentricity
Φ2-50h L≤50h |
|
4 |
Turining |
Max:Dia.Φ300 |
750 |
≥±0.01 |
-- |
-- |
-- |
0.01-0.02 |
0.01-0.02 |
|
Min:Dia.Φ0.50 |
10 |
|
5 |
Surface Grinding |
370*160 |
75 |
-- |
0.005-0.01 |
0.005-0.01 |
0.005-0.01 |
-- |
-- |
|
6 |
Single Lapping |
Max:Dia.Φ130 Thickness:1-50 |
-- |
0.005-0.01 |
|
0.005-0.01 |
-- |
-- |
Our products are extensively applicable to hardware machinery, electron, automatic assembly line, telecommunication, tooling, medical treatment, automatically professional production equipments etc. We have accumulated rich experience in processing varieties of materials such as AL6061/7075, SUS303/304, ESD225/420, DERLIN, S136H, SS440C, 17-4pH, Ceramic, alloy Carbide and PEEK. Besides, we also provide customers with non-traditional processing, including special heat treatment, special plating and surface treatment such as optic polishing, honing, precisely EDM profiled processing, carburizing, nitriding, vacuum heat treatment, subzero treatment, aluminum hard oxidation, steel bluing, electrolytic polishing, electroless nickel, silver-plating, gold-plating and so on.
