| Prod Model: |

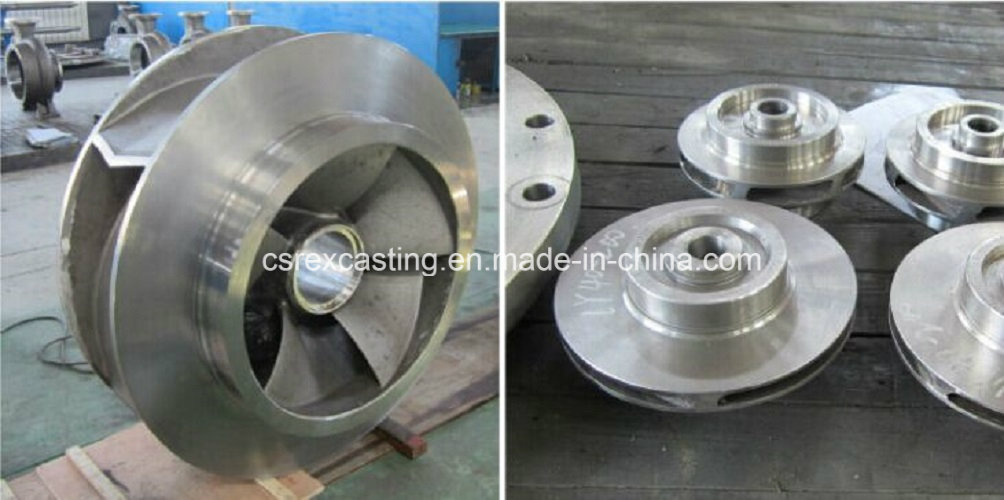

pump castings |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
1-2000t |
| Machine: |
CNC |
| Drawing: |
2D or 3D |
| Mark: |
Csrex |
| Type: |
Sand Castings |
| Casting Method: |
Mould Castings |
| Material: |
Steel, Iron |
Product Description
Company |
manufacturer (more than 20 years' experienced factory)
exporter (export from 2005 year) |
Main export marker |
? Eastern Europe
? Western Europe
? North America
? Mid East Africa
? Central/South America
? Asia
? Australia
long-term cooperated customer:Italy,Germany,Spain,Australia etc. |
Company advantage |
? Guarantee/warranty
? Product feature
? Product performance
? Prompt delivery
? Quality approval
? Service
? Small order accepted |
2.ABILITY
1 |
material |
Cast iron, grey iron, ductile iron, steel, stainless steel, brass, copper, aluminum, zinc etc |
2 |
process |
sand casting, precision casting, investment casting, lost wax casting, die casting, forging, stamping, machining etc |
3 |
machine |
lathe, CNC, drilling machine, milling machine, boring machine, planting machine, machining center etc |
4 |
tolerance |
casting:0.5mm, machining:0.05mm, finish machining:0.005mm |
5 |
capacity |
max diameter:1M, max weight:200KG |
6 |
surface treatment |
powder coating, painting, spraying, galvanization |
7 |
standard |
JIS, ANSI, DIN, BS, GB |
3. AVAILABLE MACHINING EQUIPMENT
EQUIPMENT |
SPECIFICATION |
QUANTITY |
Hydraulic valve tesing machine |
|
1 |
CNC machine |
CAK6150BJ |
2 |
CNC machine |
|
2 |
Wire cutting |
|
1 |
Universal lift milling machine |
X6132c |
1 |
Universal milling machine |
X50 |
1 |
Planning machine |
|
1 |
Radial drilling machine |
diameter:50mm |
1 |
diameter:25mm |
1 |
diameter:12mm |
4 |
Multifunction machine |
drilling:16mm, milling groove:12mm |
2 |
Lathe |
|
2 |
CD6140A |
4 |
CD6250A |
1 |
CW6280C |
1 |
Crane |
3MT |
1 |
Forklift |
2T |
1 |
4.Factory
A:WE OFFER SPECIALIZED OEM CASTING SERVICE
Sand casting,also known as sand molded casting, is a metal casting process characterized by using sand as the mold material. The term "sand casting" can also refer to an object produced via the sand casting process.Sand casting is relatively cheap and sufficiently refractory even for steel foundry use. In addition to the sand,a suitable bonding agent is mixed or occurs with the sand. The mixture is moistened with water to develop strength and plasticity of the clay and to make the aggregate suitable for molding.The sand is typically contained in a system of frames or mold boxes known a flask. The mold cavities and gate system are created by compacting the sand around models, or patterns, and or carved directly into the sand. Can maintains typical tolerance accuracy within CT12-CT14 standard, with a surface finish of Ra50-100.
B:WHAT ELSE CAN WE DO FOR YOU?
We also have the capabilities of furnishing secondary operations such as machining, non-destructive testing,
heat treat, surface treatment, and assembly. Our cosmetics are as good as any foundry can offer, better than most.
C:WHAT KIND OF SURFACE TREATMENT CAN WE GET?
Heat Treatment, shot blasting, sand blasting, machining, polishing, plating, powder coating, anodizing, zinc plated(galvanization,), oxide, etc.
D:WHAT INSPECTION EQUIPMENTS DO WE HAVE?
here coordinate measuring machine, tensile testing machine, spectrograph.
E:HOW CAN WE QUOTE FOR YOU?
As our factory only supply OEM service, Please send us enquiryby email, with all the technical drawings you have, with all of your requirements, such as material grade, tolerance, machining demands, surface treatment,heat treatment, mechanical property requirements, etc. Our specialized engineer will check and quote for you, we would appreciate the opportunity and will respond in 3~5 working days or less.
It is also best if you can provide a sample, we can also quote depends on the sample.
Csrex is a group enterprice, has one steel foundry, one iron foundry and one forging factory. She is your reliable source for Ductile iron, Alloy iron, Gray iron, and Heat-resistant steel, Alloy steel and other metal products. The company's policy is to produce castings/forgings to meet your individual requirements, as well as monitoring each stage of production to guarantee high quality. We pour to different international standards. We can offer material analysis, heat treatment, non-destructive testing, proof or full machining. Quality and Service is our emphasis!
Castings / forgings are from 0.5kg to 300 Ton.
Our monthly capacity is over 800 tons, with total occupied land size as 8000m3. Its products cover different industries like automobile, construction, machinery, ship and etc. Over 90% of its products are far sold to dozens of countries and regions such as British, German, France, US, Japan, south Korean, Australia.
Main products:
1. Large wind turbine parts such as: Rotor hub, Base frame, Motor housing, Nacelle, Torque support, Planet carrier, Bearing housing, Gear housing, Sealing cover and other iron castings & parts.
2. All kinds of grey cast iron, ductile cast iron, carbon steel and low alloy steel, heat-resistant and wear-resistant and corrosive-resistant special cast iron and steel castings, castings & parts of pumps, valves etc
Essential Inspection facilities or methods:
Photovoltaic direct-reading spectrometer, Carbon & Silicon thermal analyzer, Chemical analysis, Metallographic Analysis, Mechanical properties testing, Casting Dimension inspection and 3D(three-dimensional) measuring instrument for the part's dimension check, Moulding sand testing, Magnetic particle Testing(MT), Ultrasonic Testing (UT), Dye penetration testing, Hydrostatic Testing, etc.
Our factory is only 40 Kilometers from Qingdao seaport and only 40minutes from Qingdao airport by car, wish your visiting to our factory.
