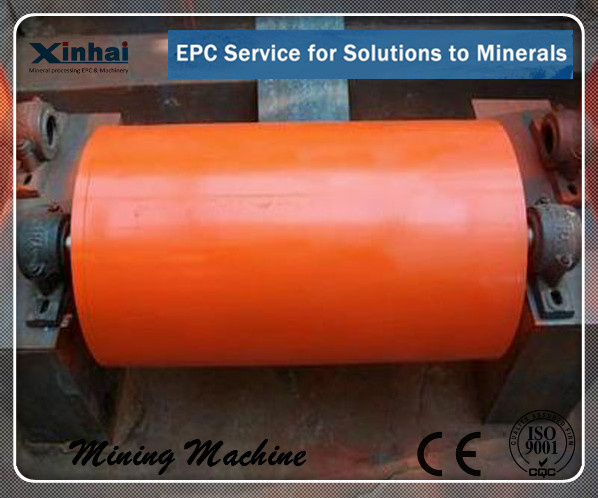

Magnetic Drum, Magnetic Separator for Sale (CT)

Magnetic Drum, Magnetic Separator for Sale (CT)
Price: US $ 1000-80000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: CT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After Sale Service: Whole Using Life
Installation: Technical Guidance
Price: Negotiable
Type: Magnetic Separator
Color: Multi Color
Certification: CE
Customized: Customized
Warranty: 1 Year
Condition: New
Voltage: Depend on The Model
Weight: 250kg~14000kg

Product Description

Hot Selling! Magnetic Drum/Magnetic Separator for Sale(CT)
Magnetic Drum— Introduction
A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.



Magnetic Drum— Capacity
20-600t/h

Magnetic Drum— Product Improvement
Cylinder could be lined with Xinhai wear- resistant rubber to prolong the service life

Magnetic Drum— Advantages
Large feeding particle size(450~0mm), no classification before feeding.
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.

Magnetic Drum— Product Description
Permanent magnetic drum is also called magnetic pulley, apparatus magnetic equipment for magnetite ore, mainly used for pre concentration before fine crushing or grinding to remove the gangue, deads and tailings, and the tailings out rate is about 10%.

Magnetic Drum— Work Principle
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.

Magnetic Drum— Product Application
1, It is applied in lean iron roughing after the roughing crushing or middling crushingto remove deads, improve grade, and reduce the load of the next procedure.
2, For not fully reductive raw ore of hematite reduction
3, For the ceramic industry to remove iron and improve the quality of ceramic products
4, For other industries needing to remove iron, such as Burning coal, sand casting, refractory material, etc.
Model ID
(mm)
Length
(mm)
Belt width
(mm)
Average field strength of cylinder surface(mT) Allowable torque
(N.m)
Materials
Particle size (mm)
Capacity
(t/h)
Weight
(kg)
CT-0404 410 465 400 150-160 1300 10-40 20-30 250
CT-0505 520 500 400 150 1300 10-40 20-40 500
CT-0506 520 600 500 150 2100 10-40 40-60 600
CT-0507 520 750 650 150 2120 10-40 60-80 700
CT-0707 750 750 650 >160 2860 10-60 80-100 1200
CT-0709 750 950 800 >160 5500 10-60 100 1620
CT-0816 800 1600 1400 >160 9760 10-60 1OO-150 2850
CT-1010 1000 970 800 200-210 5590 10- 100 150-200 3410
CT-1012 1000 1170 1000 >200 10680 ≤100 200 4010
CT-1014 1000 1400 1200 >200 12810 ≤100 200 4600
CT-l0l6 1000 1600 1400 160-210 14920 10-100 150-200 5200
CT-12l0 1200 970 800 160-210 8380 10-100 150-200 4380
CT-1212 1200 1170 1000 >160 10470 ≤100 200 5280
CT-1214 1200 1400 1200 >160 12570 ≤100 200 6070
CT-1216 1200 1600 1400 >160 14580 ≤100 200 6670
CT-1218 1200 1800 1600 >160 16620 ≤100 200 7260
CT-1412 1400 1200 1000 >160 16000 ≤l20 200 6000
CT-1414 1400 1400 1200 >160 20000 ≤l20 200 7100
CT-1416 1400 1600 1400 400 25000 ~400 300 9800
CT-1518 1500 1800 1600 ≥450 30000 ~400 600 14000
Founded in 1993, Yantai Xinhai has 20 years experience as a Chinese leader in the mining machinery manufacture and mining EPCM projects service.

With large number of research institutes(machinery research institute, mine design research institute, installation and commissinging department, etc. ) and service engineers, our customers have a tremendous depth of technical resources they can rely on. What is more, 80% equipments for mineral processing have been improved by Xinhai and some technology reaches the international advanced level. Xinhai Mining Machinery Company has become the research & developing base of mining and mineral processing machinery industry in China.

In addition, Xinhai is committed to providing premium EPCM services for customers, which include mineral processing test, mine design, equipment manufacture, installation and commissioning, personnel training and target achievement. There are more than 400 high-performance EPCM projects all over the world which are provided by Xinhai Company.

What you need is what we can do. For an evaluation of your needs, please contact us at any time. Xinhai believes you will be impressed with the experience, the proficiency and the helpful attitude you find at every level within Yantai Xinhai Mining Machinery Company.
