Manufacture: Translucent RTV-2 Silicone for Mouldings and Castings/Mold Making/Casting

Prod Model:	RTV1020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	RTV1020
Color:	Transparent
Mixing Ratio:	10:1 1:1
Working Time:	60 Mins
Curing Time:	8-12 Hours
Hardness:	20 Shore a
Material:	Silicone Rubber
Appearance:	Liquid

Product Description

Features of  silicone for mouldings and castings

MC Silicone Platinum silicone rubber is a two component elastomer cross-linking at room temperature. The polymerization can be accelerated by heat. The silicone components are delivered as liquids, which once mixed and cured transform into a transparent, elastic and resistant material. Polymerization occurs without formation of heat.

Characteristics of silicone for mouldings and castings

High Transparency
High tear and tensile strength
Long shelf life with low shrinkage
Fast mixing (1: 1)
Easy processing due to the low viscosity

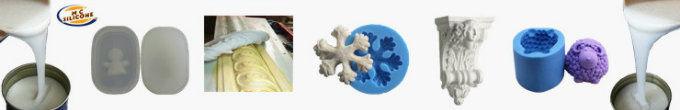

Applications of silicone for mouldings and castings

Label manufacturing, Molding applications requiring low shrinkage e. G. Toys, jewelry, automotive, rapid prototyping etc.


Instructions for silicone for mouldings and castings

1. Preparing

The surface of the original objects should be clean and free of loose material. If your products have thin flower patterns, and especially have porous substrates, please use a suitable mold release agent such as soap water, detergent, Vaseline or petroleum jelly.

2. Mixing

Please weigh Part A silicone base and part B CA30 Curing Agent with ratio of 100: 2 into a clean container. Stir Part A base silicone thoroughly before use, then Mix Part A and Part B evenly until the curing agent completely dispersed in the silicone base. Manual or mechanical mixture can be used, but do not last much time or allow the temperature to exceed 35° C (95° F). It's suitable to mix small quantities to ensure thorough mixture of silicone base and curing agent.

Note: It is strongly recommended that entrapped air be removed in a vacuum chamber, allowing the mixture to completely expand and then collapse. After a further 1 to 2 minutes under vacuum, the mixture should be inspected and can be used if free of air bubbles. A volume increase of 3-5 times will occur on vacuum de-airing the mixture. So a suitably large container should be chosen.

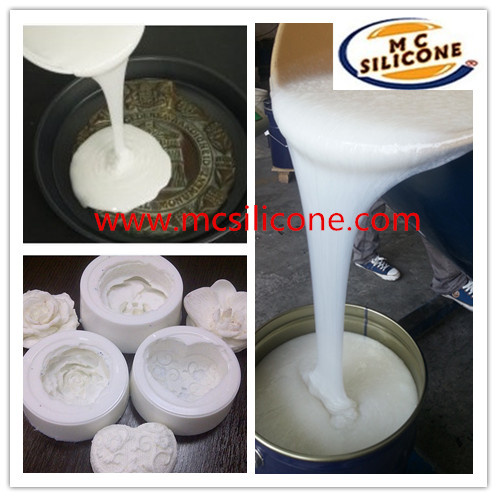

3. Pouring and curing

Pour the mixed Part A base silicone and CA-30 curing agent as soon as possible onto the original object, avoiding air entrapment. The catalyzed material will cure to a flexible rubber within 6 hours (or faster by different mixing ratio or room temperature), we advice you de-mold after 24 hours, it is will improve the replicate times of silicone mold.

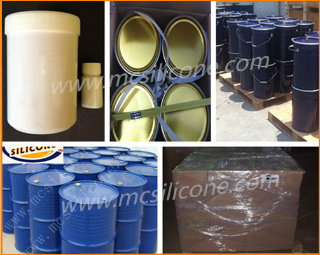

Storage of silicone for mouldings and castings

When the silicone rubber is stored at or below 30 centi degree in the original unopened containers, RTV2 Silicone Base and CA30 Curing agent have a usable life of 10 months from the date of production. After 10 months stockpiles use the Stir to mix the Part A silicone for some minutes, then the silicone can be use again, no influence for other performance.


Any further information pls kindly contact sophie
