| Prod Model: |
various types |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Commodity Name: |
Carbide Mould |
| Grade: |
Yg6c/Yg8c/Yg11c/Yg15c/Zd15 etc. |
| Certificate: |
ISO 9001-2008 |
| Use: |
Mining, Rock, Oil-Field Drilling |
| Color: |
Grey or as You Required |
| Machine Type: |
Drilling Tool |
| Advantage: |
13 Years' Experience in Making Cemented Carbide Pl |
| Process: |
Forging |
Product Description

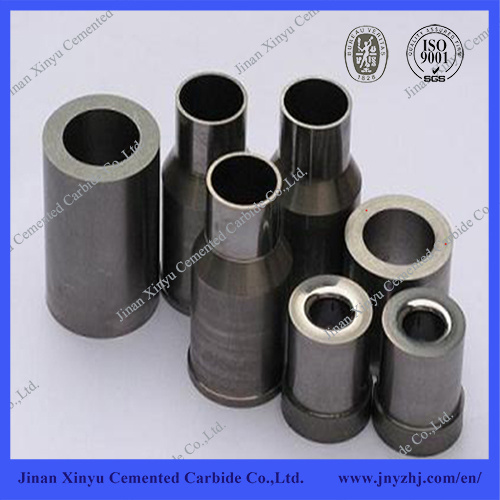

Material High Quality Cemented Carbide mould
Grades of cemented carbide plate
| M05 | YL10.2 | 14.7 | ≥2430 | ≥91.8 | Suitable for nickel base and iron-based high temperature alloy.finishing of High strength steel.cold deadhead.heat-resistance stainless steel.high manganese steel and finish machining of quenched steel
|
| K10 | YG6 | 14.8~15.1 | ≥1800 | ≥90 | Suitable for finish machining of cast iron and non-ferrous metals and machining of nonmetal,also suitable for machining of manganese steel and hardened steel |
| P30 | YT5 | 14.6~15 | ≥1570 | ≥89.5 | suitable for heavy cut of cast steel and steel.suitable for high amount of feed in low speed and high speed. |
| K20 | YG8 | 14.7~15.0 | ≥2200 | ≥89.5 | suitable for semi-finishing of cast iron and mild alloy.also for wood.plastic.chemical fiber.rubber.paperboard and nonmetal. |
| RK20F | 14.60~14.9 | ≥2000 | ≥91 |
| P20 | YT14 | 11.79 | ≥1400 | ≥91.8 | suitable for finish machining and semi-finishing machining of cast steel and steel.medium amount of feed.YS25 is focused on cutting of cast steel and steel |
| | 11.4 | ≥1400 | ≥90.5 |
| YS25 | 13 | ≥1780 | ≥90.5 |
| K30 | YG9C | 14.4~14.8 | ≥2060 | ≥89.0 | suitable for machine part.press tool.Geological Mining Tools.wear part.standard component.platen for hot rolling.formwork.corrosion resisting |
| YG11C | 14.0~14.6 | ≥2100 | ≥88.0 |
| YG13C | 14.0~14.6 | ≥2300 | ≥86.5 |
| YG15C | 13.8~14.4 | ≥2500 | ≥86.0 |
| YG15 | 13.8~14.4 | ≥2360 | ≥87.0 |
| K40 | YG20C | 13.4~14.0 | ≥2600 | ≥83 |
| YG20 | 13.4~14.0 | ≥2520 | ≥85 |
| YG25 | 12.8~13.6 | ≥2700 | ≥81 |
| RLN15 | 7.7~8.3 | ≥1720 | ≥88.5 |
Why choose us?
Experience: More than 13 years experience in making tungsten carbide products
Quality: ISO 9001:2008 quality control system
Service:Free online technical service, OEM & ODM service
Price:Competitive and reasonable
Market: Popular in America, Mid-east, Europe, South Asia and Africa.
Payment: All payment terms supported.
Sample:Free samples
product advantage
Material: 100% virgin raw material with submicron and average grain size.
Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
Types: standard, conical, parabolic,ballistic
Physical performance: high hardness and impact toughness, very good mechanical & chemical stability
Our Company
Established in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licensed import and export enterprise integrating R&D, manufacture and trade of
cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and
regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company
is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and
been praised as the first class AAA credit company.
