| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
9 Meters |
| Width: |
1.6 Meters |
| Height: |
1.5 Meters |
| Weight: |
9 Tons |
| Forming Speed: |
20 Meters Per Minute |
| Motor Power: |
5.5kw + 2.2kw |
| Delivery Time: |
60 Days |
| Loading: |
40'gp Container |
Product Description
INTRODUCTION OF CORRUGATED & IBR PROFILE ROOF CLADDING SHEETS ROLL FORMING MACHINES

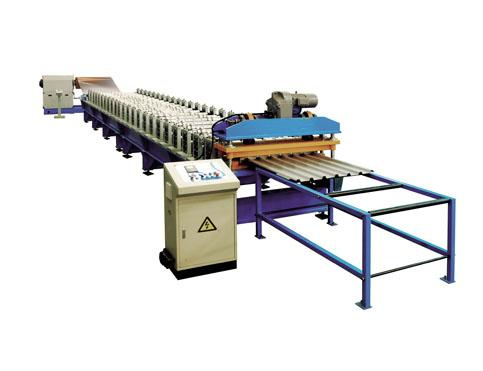

This metal roof rolling machine is an advanced roll former, which is manufacturing galvanised aluzinc steel roofing sheets or aluminium roofing sheets with a high speed. This IBR profiles roofing panel productions line consists of decoiler, sheet guiding equipment, rollformer, cutter, support table, hydraulic system, and control system. The corrugated IBR iron or aluminium roof and wall panels which made by this corrugating machine have neat external appearance, even ripples, high utilization and strong strength. Besides, it can cooperate with its roof sheeting curving machine to fit your roofing design.
CHARACTER
The IBR (Inverted Box Rib) is a square fluted profile which comes in IT-4, IT-5 and IT-6 profile sizes designed for use as side cladding or roofing material in commercial, industrial and residential buildings. It is really a new type of energy-saving and high-efficiency metal rollforming machinery for galvanized or precoated alu-zinc steel roof or wall panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
MAIN PARAMETERS:
1. Material Spec. 220-280MPA; Thickness: 0.4mm to 0.7mm
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3pH/50Hz or at buyer's requirement.
Our company is specialized in designing and manufacturing roll forming machine, including the wall and roof forming machine, tile forming machine, purlin forming machine, floor deck forming machine, guard rail forming machine, water down pipe forming machine, ridge cap forming machine, door frame forming machine, roll shutterforming machine, large span curve forming machine, channel forming machine, metal stud forming machine and other accessorial machine and equipment, such as hydraulic decoiler, coil car, auto stacker, sandwich panel formingmachine, H-beam welding machine, coating production line, shot blasting machine. We can design the machines according to the customers' profiles and requirement.
Our company is also a special steel structure manufacturer. We are cherishing the service attitude to make the best and relying on our design, manufacturing and installing ability, we have designed and manufactured steel structure building for several hundreds of domestic customers, and have expand business range into South America, Africa, Australia, MID-East, and Southeast Asia market. We are looking forward to cooperating with global customers with an aim to establish a good brand image in the global market.
