| Prod Model: |
IBR PROFILE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

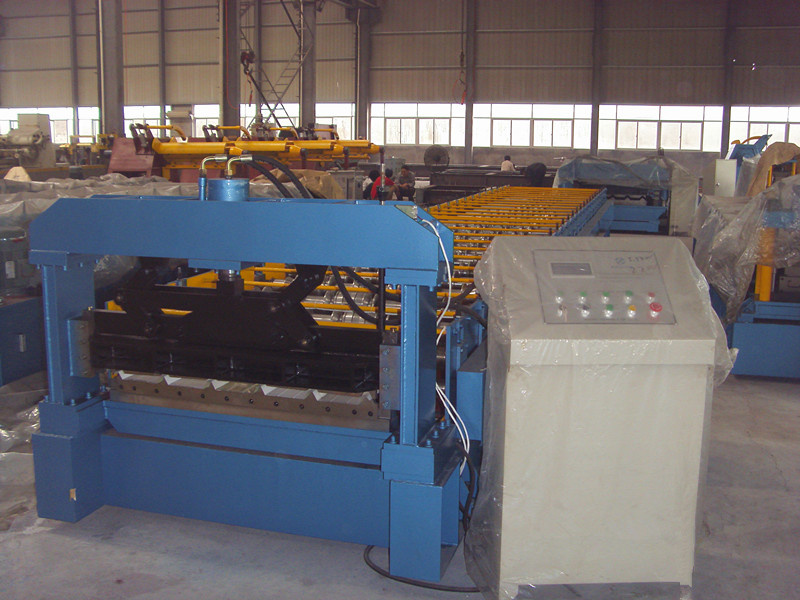

Our product: Roof forming machine, steel forming machine, cold roll forming machine.
Features: Main Equipment:
Decoiler, main forming machine, hydraulic cutting, run out table, hydraulic system, electric system PLC control system
Technical Parameters:
1) mamual inner tight decoiler
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 6000kg
2) Main forming machine
A. Number of forming steps: 18
B. Material of shaft: 45# steel adjustable treatment.
Outer diameter: 75mm
C. Material of roller: High grade 45# steel(plated chrome on surface)
D. Main motor power: 5.5kw
E. Forming speed: 18-22m/min
F. Machine frame: H350# steel sections welding
G. The plating chromium of roller surface: 0.05mm
Working flow:
Decoiling--active feeding--roll forming--measuring length--cutting to length--product to run out table
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
